12core 24core MPO/MTP Module Cassettes For MPO MTP Fiber Optical Patch Panels Chassis Enclosures

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T, Western Union, MoneyGram ,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Color:

Black

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

12core 24core MPO/MTP Module Cassettes for MPO MTP Fiber Optical Patch Panels Chassis Enclosures

Product description:

New Light MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.

Features:
Adopts high quality engineering plastics and Aluminum alloy material
MPO faceplate can be upgraded easily.
All the front port are with mark no.easy to identify.
Quick and easy installed, flexible in configuration and easy to management

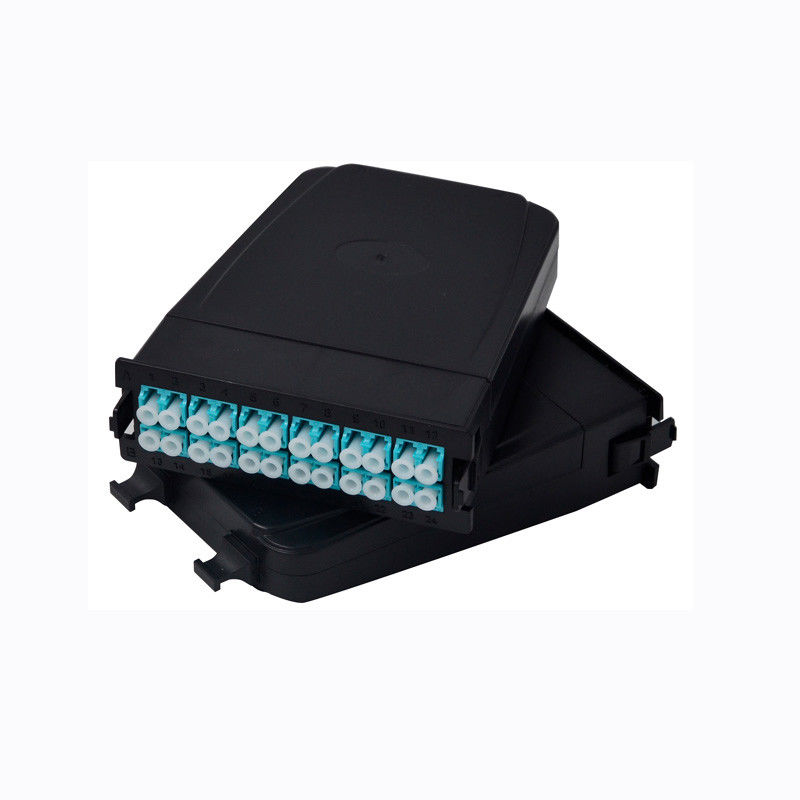

12core 24core MPO/MTP Module Cassettes For MPO MTP Fiber Optical Patch Panels Chassis Enclosures 0

FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.

12core 24core MPO/MTP Module Cassettes For MPO MTP Fiber Optical Patch Panels Chassis Enclosures 1

Product Features:

• High-density modular design, up to 96 fiber in 1U for efficient utilization.

• Pre-terminated cassette for improved reliability and quick deployment.

• High performance connectors to achieve a low loss optical budget.

• Plug-N-play modules allow fast installation of multiple fiber links.

• Offered in a wide range of performance and polarity configurations.

• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.

Learn more ,pls link :

https://youtu.be/n0NzAOHr10s

12core 24core MPO/MTP Module Cassettes For MPO MTP Fiber Optical Patch Panels Chassis Enclosures 2

Fiber Count	12 / 24	Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex	Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down	Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB	Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C	Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)	Application	Matching for Type AF Cassette

Performance Properties:

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration:

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.

12core 24core MPO/MTP Module Cassettes For MPO MTP Fiber Optical Patch Panels Chassis Enclosures 3
