12-fiber MPO Cassette Module with Corning ClearCurve® Fiber for Plug-N-play Deployment in Data Centers

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

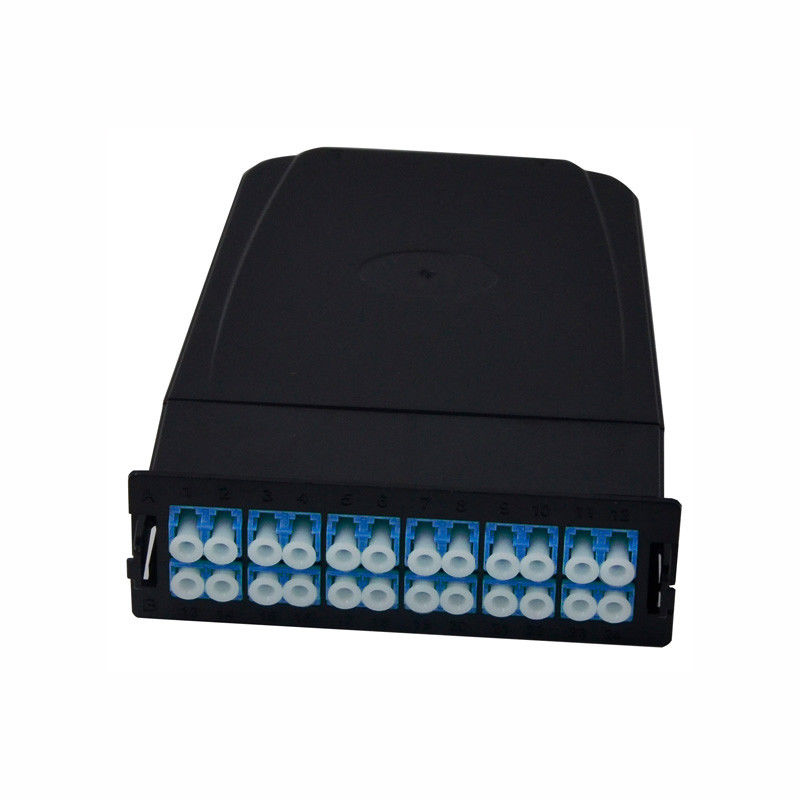

Plastics MPO Cassette Module with MPO/MTP Connector and LC Duplex Adapter

OS2 12-fiber MPO/MTP connector and LC duplex adapter MPO/MTP cassette Standard Method A

MTP Fiber Optic Cassettes consist of pre-terminated LC or SC adapters for quick and easy deployment in high density applications, providing efficient utilization of rack space and design flexibility. These cassettes comply with all multimode and singlemode channel requirements. New light MTP Fiber Optic Cassettes are available with a standard channel insertion loss of 0.75dB max and an optimized loss of 0.5dB max.

The cassettes feature 12-fiber MTP adapter(s) on the rear routed to duplex LC, duplex SC, or simplex SC adapters on the front patch field. Equipped with LC duplex adapters, the cassette houses a maximum density of 24 fibers for a total of four cassettes or 96 fibers when incorporated into a 1 RU patch panel. Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme. These cassettes interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.

New Light MTP/MPO cassettes are manufactured with high quality Corning fiber optic cable and available in various fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes support multiple fiber optic connector ports including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be configured with either Male or Female MTP/MPO connectors to suit your specific requirements.

FHD High Density Series

A versatile solution available in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, supporting up to 96 LC fibers in 1U configuration.

Product Features

High-density modular design, supporting up to 96 fibers in 1U for efficient space utilization
Pre-terminated cassette for improved reliability and quick deployment
High performance connectors to achieve low loss optical budget
Plug-N-play modules allow fast installation of multiple fiber links
Available in wide range of performance and polarity configurations
Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Learn more - Watch Product Video 12-fiber MPO Cassette Module with Corning ClearCurve® Fiber for Plug-N-play Deployment in Data Centers 2

Technical Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides intelligent solutions to help manage and optimize your network connectivity.
