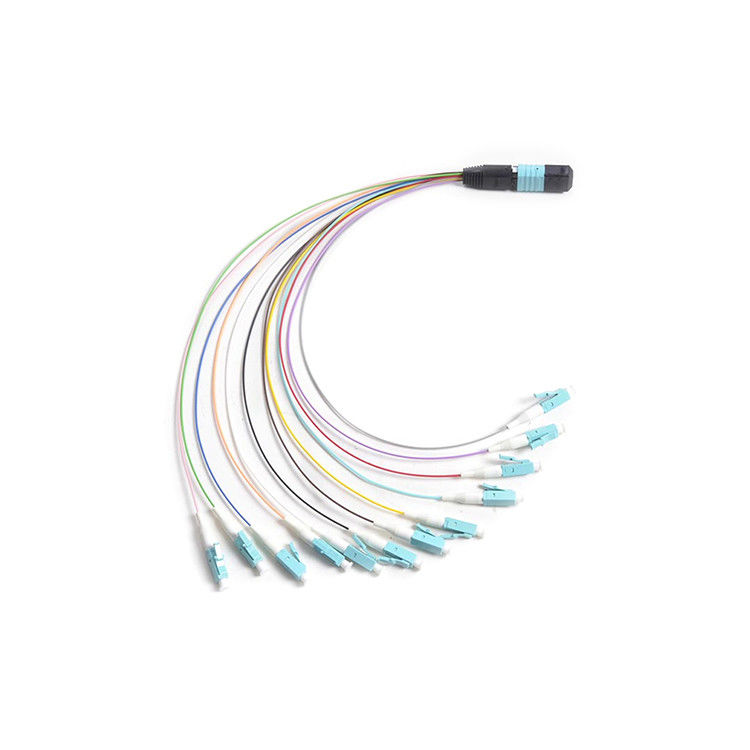

12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box

12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box

    • 12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box
    • 12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box
  • 12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: CE , ISO , RoHS
    Model Number: MPO / MTP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: OPP bag + carton box
    Delivery Time: 2-7 working days ( according to your quantity )
    Payment Terms: T/T, Western Union, MoneyGram , paypal
    Supply Ability: 500 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: 12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box Connector Type: MTP Low Insertion Loss
    Core Type: 12F Insertion Loss: Low Insertion Loss ≤ 0.3dB
    Cable Length: Customized Fiber Type: MM
    Connector Type: MPO-LC Jacket: PVC/LSZH
    Cable Diameter: 0.9mm
    High Light:

    mpo to mpo cable

    ,

    mpo fanout cable

    MPO / MTP Optical Fiber Patch cord product name :



    12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 mm Cable for MPO cassette module box



    MPO / MTP Optical Fiber Patch cord Description :



    MPO to LC breakout cables can be two kinds of cable diameter : 0.9mm mini cable MPO - LC beakout patch cord , 3.0mm cable diameter breakout patch cord .
    The 0.9mm diameter cable MPO - LC breakout patch cord normal are used in 1U distribution frame or patch panel . it will have cassette module in it  .



    fibre cables over multimode which are used in the transmission of 40G SR4 or 100G SR4 and 12 fibre cables which are used in 10G/25G duplex networking.


    MPO / MTP Optical Fiber Patch cord More information :



    New Light  MTP- LC uniboot patch cord is low insertion loss standard connector , The international color of low insertion loss  MTP connector is yellow , and MTP connector is Original Uscome brand  . Other MPO connector only can called MPO .



    Another connector in the patch cord is 4 x LC uniboot . it have two fiber core inside of each cable . it can save lots of space and have the same function of data transmission with 2.0 / 3.0mm cable LC  .



    The length and the connector type can be customized according to your request during the distribution work .



    We also have 8 core MPO - LC 0.9mm cable patch cord  , 8 core MPO -LC 3.0mm patch cord  . 12core MPO - LC 0.9mm cable patch cord , 12 core MPO -LC 3.0mm patch cord  ,24 core MPO - LC 0.9mm cable patch cord , 24 core MPO -LC 3.0mm patch cord ,etc  .





    MPO / MTP Optical Fiber Patch cord APPLICATIONS




    12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box 0

    MPO / MTP Optical Fiber Patch cord Parameter



    products name  12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 mm Cable for MPO cassette module box
    mode type  signle mode
    cable count  8 core ( can be 4/8/12/16/24/32 core )
    core type G652D  ( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
    cable color  yellow  ( can be customized according to your request )
    cable diameter  3.0 ( can be 3.0 and customized diameter )
    patch cord length  3 meter ( can be customized according to your request )
    out jacket material  LSZH ( can be PVC or LSZH )
    insertion loss  ≤ 0.3dB
    return loss  ≥25 dB
    wave length  1310/1550nm
    core type  9/125um
    connector type  female
    connector color  yellow (Aqua / Magenta /beige are ok )
    ferrule material  plastic
    operater temperature  -40~ +85℃
    cable print  standard print ( can customized )
    OEM/ODM  acceptable
    warranty  3 years after delivery
    Delivery time  2-15 working days ( according to your quantity )



    MPO / MTP Optical Fiber Patch cord Related products:

    12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box 1

    How To Order MPO / MTP Optical Fiber Patch cord



    1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
    2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
    3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
    4. Coating material : PVC / LSZH
    5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
    6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
    7. Patch cord length : according to your requirement

    8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )



    FQA :



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .



    Packing for reference :


    12 F MTP - LC Fiber Optic MTP MPO Breakout 0.9 Mm Cable For MPO Cassette Module Box 2
