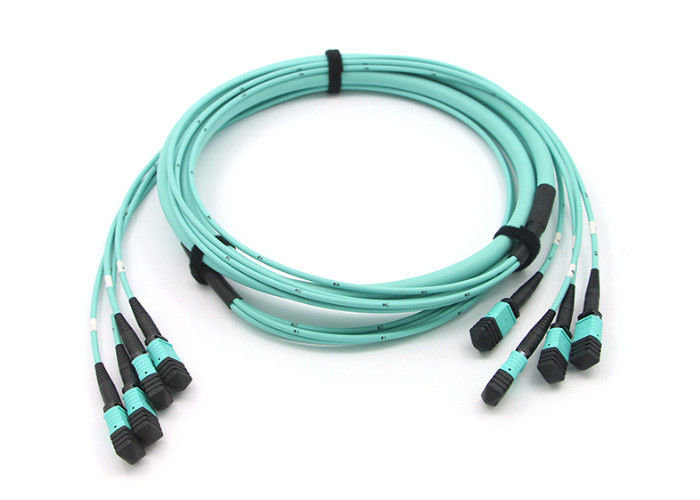

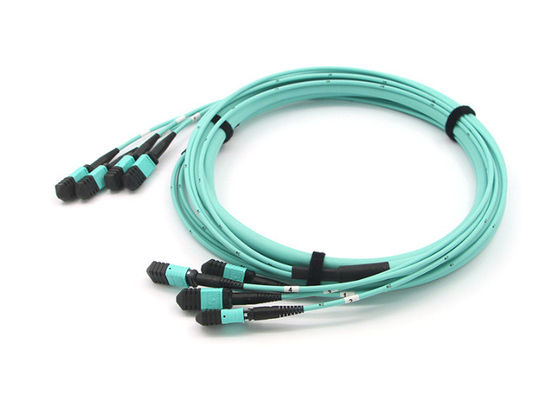

48 Core MPO MTP Cable with LSZH Material and Custom Length MPO Optic Jumper

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

LSZH (OFNP/OFNR)

Mode Type:

OM3 OR OM4

Core Type:

48 Core

Cable Color:

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

48 Fiber Patch Cord Trunk MPO MTP Cable, 4*12 Fiber MPO Optic Jumper

High-performance 48-fiber MPO/MTP trunk cable featuring 4*12 fiber configuration for superior optical connectivity in demanding network environments.

MPO MTP Cable Overview

MPO Connectors deliver exceptional performance and reliability for the industry's most demanding high-speed systems and networks. Designed with familiar push-pull operation for easy insertion and removal, our MPO Connectors provide lower insertion loss with various boot-type options available. Customization options include boot-type, ferrule type, housing colors, and more.

Applications

Data communication networks
Optical system access networks
Storage area networking fiber channel
High density architectures

Key Features

Various insertion loss indexes and color options available
Stable performance with fixed PIN positioning
Plug-type connector with locking structure
High density design for convenient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤0.75dB (standard), ≤0.35dB (typical) Multi-mode: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB Multi-mode: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	48 fiber
Connector Type	MPO-female, MPO-male
Fiber Mode	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250μm ribbon fiber, ribbon cable, bundle fiber optic cable

Product Drawings

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing is quantity-dependent. We provide competitive pricing for bulk orders upon request with detailed specifications.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FEDEX) due to product size. EXW or CFR pricing is preferred. Sea freight options available for large volume orders.

How is your quality control?

We adhere to IEC and European standards with near dust-free workshops, imported production equipment, and 100% testing before delivery.

What's your lead time?

With three factories in China, we can process 5,000 patch cords in 2-3 working days. Regular products are available from stock for urgent requirements.

What's your warranty policy?

2-year warranty for patch cords covering non-artificial damage. Artificial damage repairs are free with customer covering freight costs.

What's your packaging?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. High-value products require sample charges refundable with orders.

How can I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
