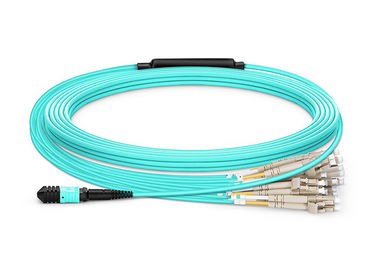

24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable

24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable

    • 24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable
    • 24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable
    • 24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable
  • 24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: CE , ISO , RoHS
    Model Number: MPO - LC / MTP - LC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: OPP bag + carton box
    Delivery Time: 2-7 working days ( according to your quantity )
    Payment Terms: T/T, Western Union, MoneyGram , paypal
    Supply Ability: 500 pcs per day
    Contact Now
    Detailed Product Description
    Connector Type: MPO, MTP, LC, E2000, FC, SC, ST Cable Material: LSZH/OFNR/OFNP
    Fiber Type: G652D/G657A1/G657A2/OM3/OM4 Core Type: 24 Core
    Cable Color: Yellow/Aqua/Violet/Magenta Length: Can Be Customized According To Your Requirements
    Certificate: CE , ISO , RoHS Delivery Time: 2-7 Working Days After Received Deposit
    Production Ability: 500 Pcs / Day Payment Term: T/T , 30% Deposit In Advance
    High Light:

    mpo to mpo cable

    ,

    mpo fanout cable

    24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable





    MPO MTP Cable Overview

    Each MTP Breakout Cable is available with 8 to 144 fibers and is most commonly used to assist in upgrading existing 10G networks to higher performing 40G and 100G rates. Higher performing options are available and include the US Conec MTP® Connector and Corning® ClearCurve® Fiber, able to create less insertion loss and preserve the connection integrity.

    MPO MTP Fan Out Cable breakout LC/FC/SC/ST connector, can be adapt 8 core, 12 core or 24 core for just one module unit. Assemblies are typically used to directly interconnect MTP/MPO cassettes, panels or backbone trunk assemblies with the active equipment ports, saving costly data centre rack space and easing fibre management. Replacing traditional MTP/MPO module Fan-Out Assemblies reduce amount of interconnection improving power budget cost.





    MPO MTP Cable Application

    MTP/MPO trunk multifiber cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments, reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MTP/MPO fanouts, spanning MDA, HDA and EDA zones.



    • US Conec MTP® connector, Senko MPO premium connector
    • Corning multimode fiber, SMF-28® Ultra optical fiber
    • OS2, OM3, OM4 available
    • 0.35dB elite low loss connector
    • Factory terminated and tested
    • Allow easy migration from 10GbE to 40GbE or 100GbE​





    MPO MTP Cable Technical Parameter

    Item Technical Parameters
    Connector MPO/MTP(F or M) MPO/MTP (F or M)
    Operation Temperature -40°C ~ +80°C
    Storage Temperature -40°C ~ +85°C
    MPO Insertion Loss

    SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);

    MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);

    MPO Return Loss SM:≥60dB; MM:≥35dB
    The MPO end type Male: with guide pin; Female: without guide pin
    Fiber count 24 fiber
    Connector type of the other end MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
    Fiber mode Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
    Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable







    There are 3 types:

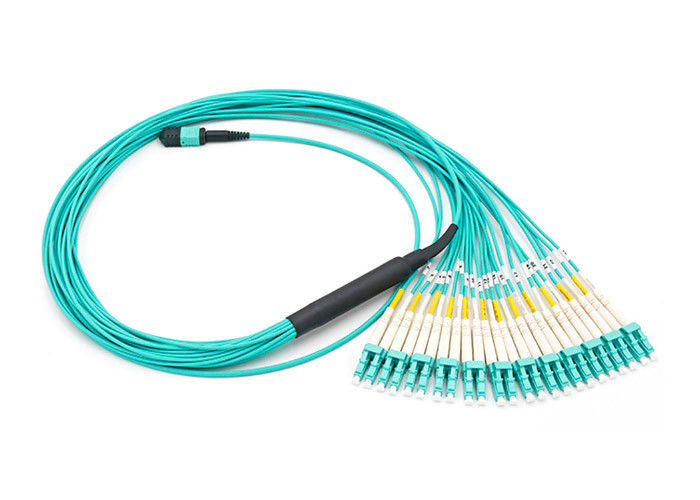

    24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable 0

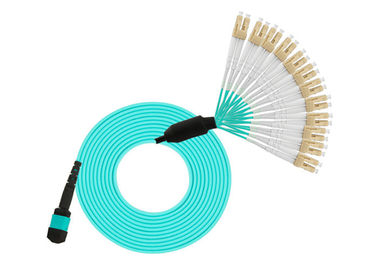

    24 Fibers MPO MTP Fan Out Patch Cord MTP-24 OM3 Multimode Breakout Cable 1





    Pakcing



    We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged  when delivery .







    FQA



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
