Full Load Mtp Mpo Fiber Optic Equipment With Lc Fiber Cable Standard Loss

Full load mtp mpo fiber fiber optic equipment with lc fiber cable

Product description:

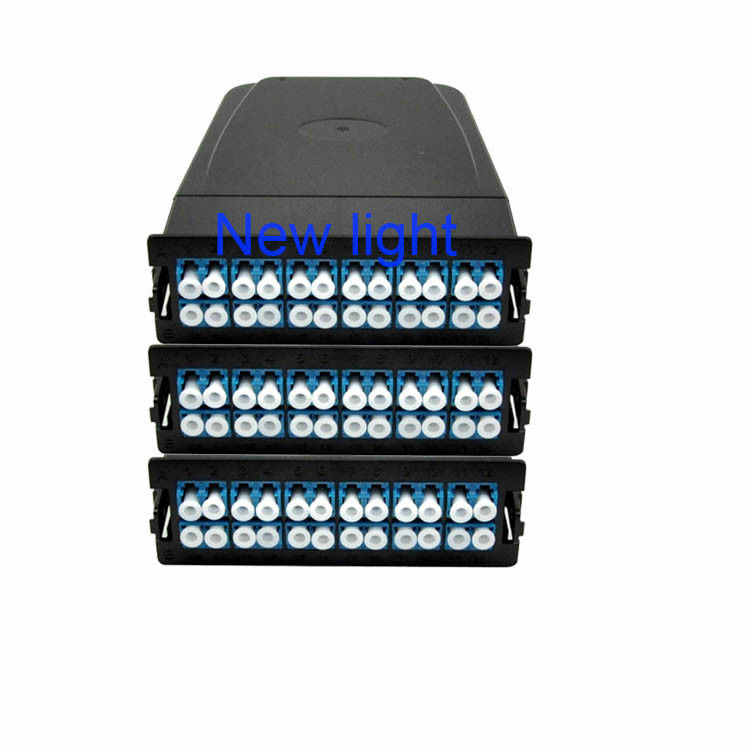

New Light  Full load mtp mpo fiber fiber optic equipment with lc fiber cable MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.
Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Applications:
1. Fiber Optic Transmission System
2. CATV Networks
3. Local Area Network
4. Testing/Measurement Instruments
Features:
1. 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request.
2. Standard size is 1U, 2U, or 4U are available on request
3. 12,24,48,96Port optional
4. Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
5. Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
6. Provide termination, protection, connection, management of fiber optic cable

Advantage:
1. UL certificate makes the quality lever be the best.
2. Independent research and development, Can be modified according to customer requirements
3. OEM package available, we can print your colored logo, print your OEM box, OEM Carton

New Light MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in variours fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.

FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.

Product Features:

• High-density modular design, up to 96 fiber in 1U for efficient utilization.

• Pre-terminated cassette for improved reliability and quick deployment.

• High performance connectors to achieve a low loss optical budget.

• Plug-N-play modules allow fast installation of multiple fiber links.

• Offered in a wide range of performance and polarity configurations.

• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.

Learn more ,pls link :

https://youtu.be/vq-AZxb1ab4

Performance Properties:

Polarity Illustration:

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.
