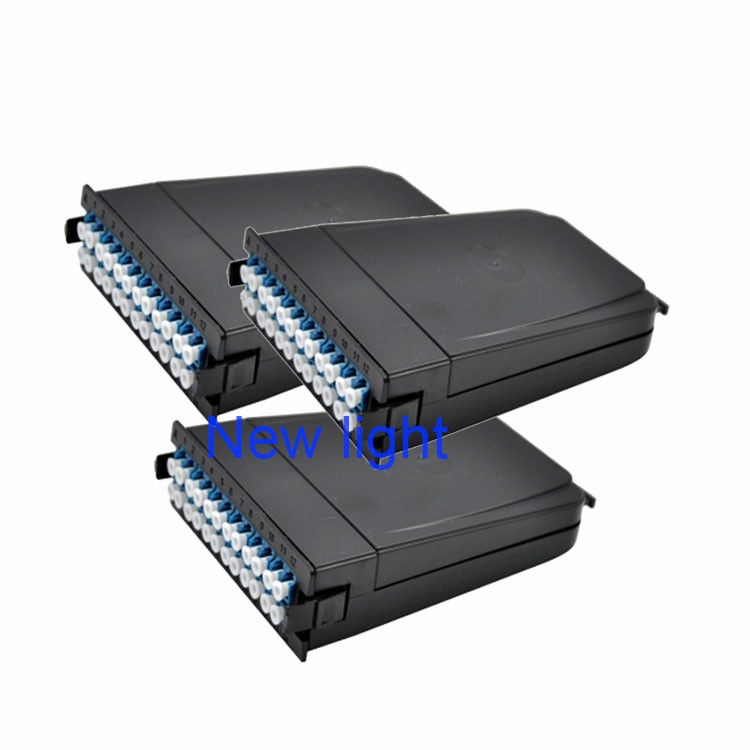

MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable

MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable

    • MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable
    • MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable
  • MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable

    Product Details:

    Place of Origin: China
    Brand Name: New light
    Certification: ROHS ;ISO9001
    Model Number: 6/12 port MPO

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: USD 68-120 set
    Packaging Details: opp bag+Carton box
    Delivery Time: 2-15 working days
    Payment Terms: T/T, Western Union, MoneyGram ,Paypal
    Supply Ability: 10000 per day
    Contact Now
    Detailed Product Description
    Connector: MPO/MTP Connector Type: MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC
    Insertion Loss: Standard Loss And Elite Type: Single-mode/Multi-mode
    Warranty: 2 Years Material: Plastics And Aluminum Alloy
    Wavelength: 850nm/1310nm/1550nm Capacity: SC Max 12core/LC Max 24core
    Product Name: Fiber High Density MTP-12 Cassettes
    High Light:

    mtp casstte module

    ,

    mpo cassette patch panel

    mtp mpo cassette with patch cord connector and corning fiber optic cable





    Product description:



    New Light  mtp mpo cassette with patch cord connector and corning fiber optic cable provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.
    Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
    MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
    Applications:
    1. Fiber Optic Transmission System
    2. CATV Networks
    3. Local Area Network
    4. Testing/Measurement Instruments
    Features:
    1. 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request.
    2. Standard size is 1U, 2U, or 4U are available on request
    3. 12,24,48,96Port optional
    4. Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
    5. Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
    6. Provide termination, protection, connection, management of fiber optic cable
    7. RoHS compliant
    8. Full assembly (loaded) or empty panel optional
    9. Black or White color
    Advantage:
    1. UL certificate makes the quality lever be the best.
    2. Independent research and development, Can be modified according to customer requirements
    3. OEM package available, we can print your colored logo, print your OEM box, OEM Carton





    New Light MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in variours fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.



    MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic CableMTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable



    FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.





    Product Features:


    • High-density modular design, up to 96 fiber in 1U for efficient utilization.

    • Pre-terminated cassette for improved reliability and quick deployment.

    • High performance connectors to achieve a low loss optical budget.

    • Plug-N-play modules allow fast installation of multiple fiber links.

    • Offered in a wide range of performance and polarity configurations.

    • The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.





    Learn more ,pls link :

    https://youtu.be/vq-AZxb1ab4



    MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable



    Fiber Count 12 / 24 Fiber Mode OM3 50/125 μm
    Front Connector Type 12 LC UPC Duplex Rear Connector Type 1x MPO UPC Male (pinned)
    MPO Adapter Key up to Key down Glass Fiber Corning ClearCurve®
    Insertion Loss MPO≤0.35 dB, LC≤0.2 dB Return Loss MPO≥20 dB, LC≥30 dB
    Operating Temperature 0°C to 70°C Storage Temperature -40°C to 75°C
    Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118 mm) Application Matching for Type AF Cassette









    Performance Properties:



    Front Connector LC/SC duplex
    Material of Sleeve Zirconia Ceramic
    Insertion Loss  Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
    Return Loss Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB






    Polarity Illustration:


    In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.



    MTP MPO Cassette Module With Patch Cord Connector And Corning Fiber Optic Cable
