|Connector:||LC-LC||Fiber Type:||Simplex And Duplex|
|Application:||FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments||Length:||Any Length Is Customizable|
|Connector Type:||SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO||Type:||Single Mode/Multi-mode|
|Fiber Count:||Simplex Or Duplex||Material:||PVC/LSZH|
|Color:||Orange Or Others,aqua Or Cusomized|
single mode fiber optic cable,
duplex fiber patch cord

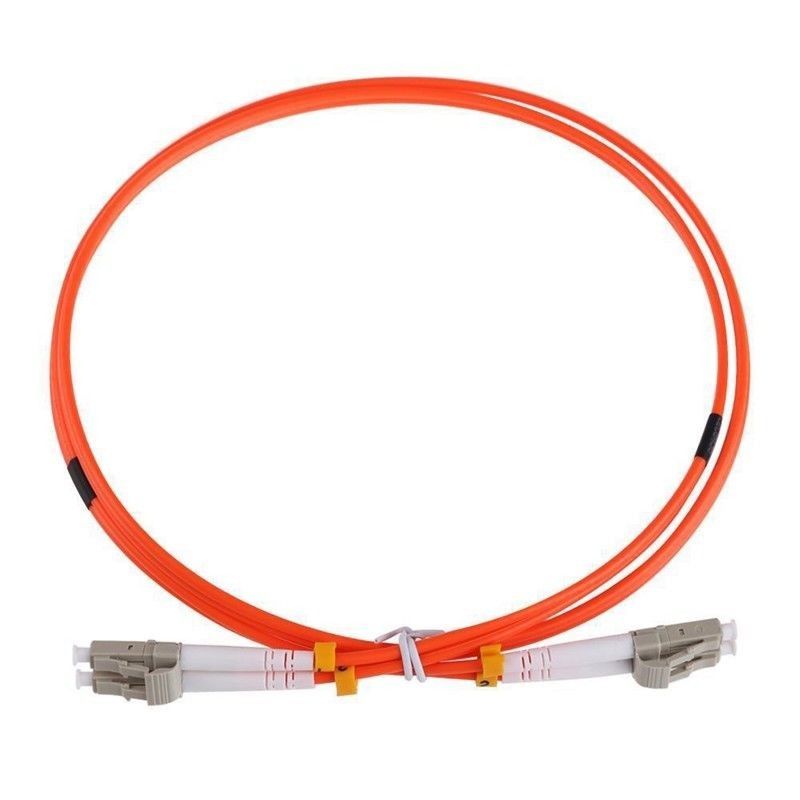

lc-lc multimode fiber patch cord fiber optic patch cable lc patch cord
New light lc-lc multimode fiber patch cord fiber optic patch cable lc patch cord is available in both singlemode and multimode versions. A cost-effective solution that provides high bandwidth and transmission rates over short distances. This high-quality Multimode fiber optic patch cable is designed for ethernet applications. Each connection has great durability and is resistant to pulls, strains and impacts during installation
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Joinwit patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc. ) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
|Cable type||Simplex,Duplex straight,Duplex Reverse|
|Cable Length||Length in meter|
* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
|Fiber type||Single mode:||(1)9/125-G652D||(2)9/125-G655||(3)9/125-G657A,G657A2||(4)9/125-G657B3|
|Fiber Brand||YOFC, Corning, Sumitomo, Fujikura|
|Connector||SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC|
|Cord type||Simplex ,Duplex|
|Cable diameter||0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm|
|Cable jacket||PVC, OFNR, LSZH, OFNP|
* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
