Product Details:
|
| Product Name: | FC APC Fiber Patch Cord Simplex 9/125 SM Screw Type Metal Connectors 2meter Length | Connector Type: | FC / FC |
|---|---|---|---|
| Cable Material: | PVC | Fiber Type: | G652D |
| Mode Type: | 9/125 SM | Core Type: | Simplex |
| Cable Diameter: | 2.0 Mm Diameter | Cable Length: | Can Be Customized |
| Insertion Loss: | ≤0.3dB | Return Loss: | ≥60dB |
| OEM/ODM: | Acceptable | ||
| High Light: | single mode fiber optic cable,duplex fiber patch cord |
||
Optical Fiber Patch Cord Product Name:

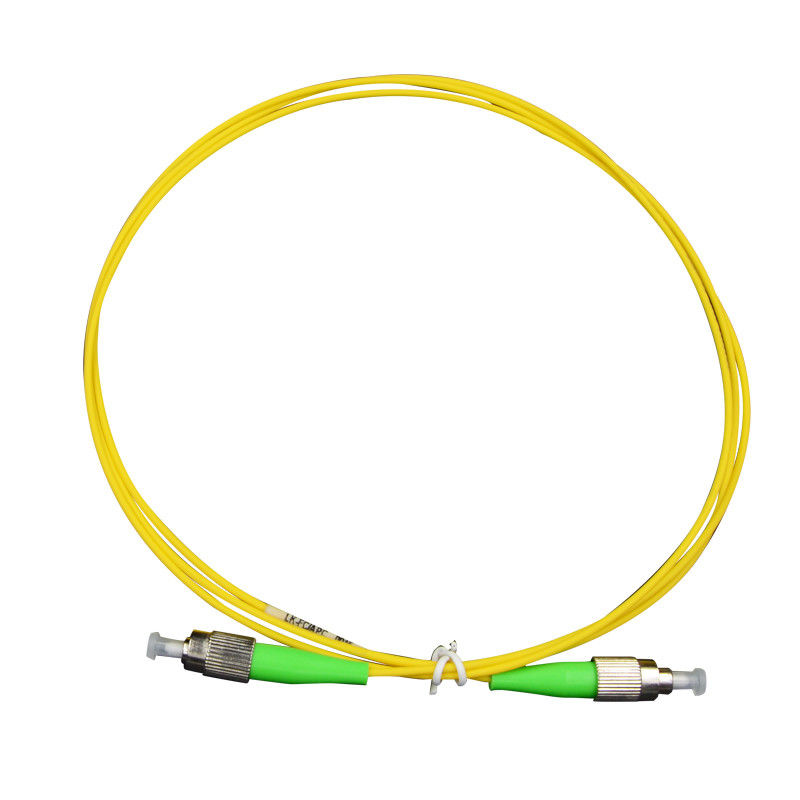

FC APC Fiber Patch Cord Simplex 9/125 SM Screw type metal connectors 2meter length
Optical Fiber Patch Cord Description :
FC APC Fiber Patch Cord Simplex 9/125 SM Screw type metal connectors is one kinds of special metal connector,similar with ST . It is different with LC , SC plastic type connectors .
The installation of FC type connector is same with screws . After you pull of the dust cap on FC connector ,put on the right position on the equipment and screw up .
It is stronger on the equipment than LC , SC connectors after screw up . No need to worry the connectors will fall off from equipment .
This cable can be 2.0mm and 3.0mm diameter . In the international standard , single mode cable is yellow color multi mode have orange ,aqua m megenta , light green color in different mode . If you want to customized the color of cable , the quantity should be over 1000 meter each time .
There are lots of type of patch cord and pigtails .it is depends on the connectors and cable type . the mode type including single-mode, multimode (multi mode include 62.5/125 , 50/125um OM2,50/125 OM3 , 50/125 OM4 , 50/125 OM5 types ) . The cable count also can be simplex fiber, duplex ,4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and other fiber count as your need .
Optical Fiber Patch Cord Key Features
Optical Fiber Patch Cord Specifications
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | 850,1310 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Optical Fiber Patch CordApplications
Optical Fiber Patch Cord Connector type :
| connoctor type | SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables | PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color | yellow,gray,sky bule ,orange,white,bla |
FQA :
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
