|Connector Type:||MPO / MTP TO MPO / MTP||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||12 Core|
|Cable Color:||Magneta||Length:||Can Be Customized According To Your Requirements|
|Certificate:||CE , ISO , RoHS||Delivery Time:||2-7 Working Days After Received Deposit|
|Production Ability:||500 Pcs / Day||Payment Term:||T/T , 30% Deposit In Advance|
mpo to mpo cable,

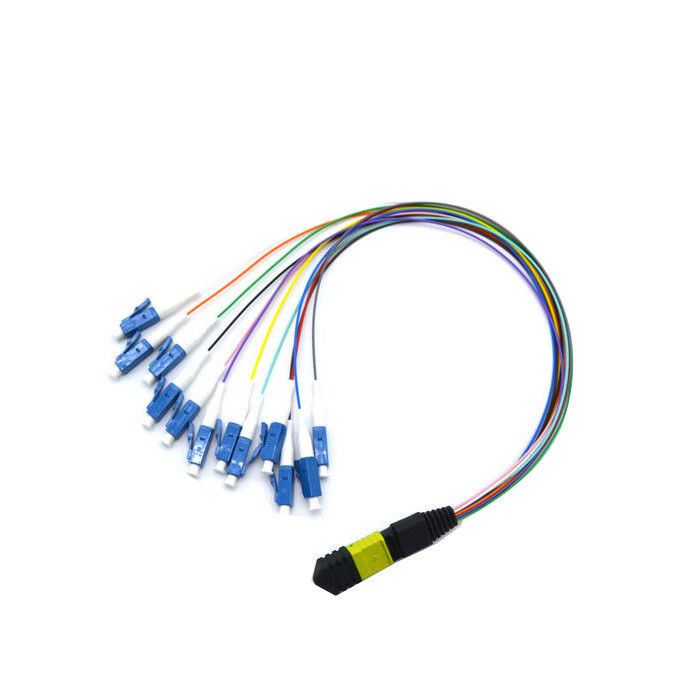

mpo fanout cable

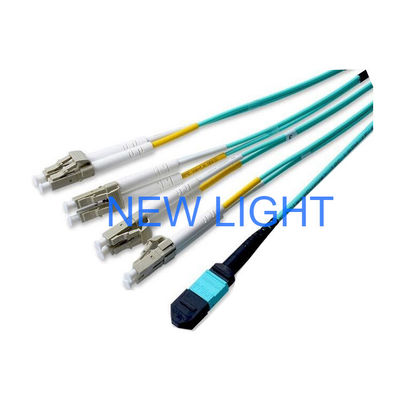

mtp 12 fiber connector om2 fiber cable connect mpo fiber cassette
MPO MTP Cable Overview
New light manufacturers data center grade mpo optical connector om3 multimode fibre optic cable for mpo cassette patch panel . The 50 micron MTP fiber optic patch cable is constructed with Corning® Clearcurve® OM3 glass. Multimode fiber optic cable comes with 100G Base-SR10 24-fiber configuration for direct equipment to equipment connection to support laser optimized multimode fiber LOMMF and high speed 100G cabling networks. The high density 24 fiber cable is OM3 50/125 with a 3.0mm diameter. These OM3 fiber jumper cables have a configuration of 50 125. The aqua jacket material is optical fiber nonconductive plenum OFNP and is colored aqua for 100Gb networking. The MTP-MTP fiber optical cord is assembled with MTP female connectors. The MTP connector uses a spring loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in a data center environment. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA/EIA standard with maximum insertion loss .
Buy fiber cables direct from New light, a reliable fiberoptic supplier and a dependable fiber optics for sale co. We manufacture fiber optic for enterprise data centers, colocation facilities, server farms, cloud storage networks, telecommunication rooms. CBS stocks thousands of products; such as a fiber optic junction box, fiber patch cables, fiber optic jumpers, and fiber optic jumper cables. Our selection of fiber optic cable for sale includes a wide variety of fiber connector types. Go to fiber optic cable shop, Cablesys.com, to view fiber for sale and our fiber optic cable price.
MPO MTP Cable Application
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
