|Place of Origin:||Shenzhen China|
|Brand Name:||New Light|
|Certification:||CE / ISO / RoHS|
|Model Number:||SC/PC male - LC/PC female|
|Minimum Order Quantity:||10 pcs|
|Price:||can be negotiated|
|Packaging Details:||standard export package|
|Delivery Time:||2-10 working days|
|Payment Terms:||T/T, Western Union, MoneyGram, paypal|
|Supply Ability:||100,000 pcs per month|
|Material:||SC Plastic Housing And LC Metal Port||Connector Type:||SC/PC Male - LC/PC Female|
|Mode Type:||Single Mode||Repeatability:||>1000 Times|
|Return Loss:||UPC ≥55dB APC ≥65dB||Ferrule Polishing:||UPC OR APC|
|Packing:||Standard Export Package||Certificate:||CE , ISO , RoHS|
|Application:||FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia|
lc fiber optic adapter,
sc simplex adapter
Fiber Optic Adaptor Product Name

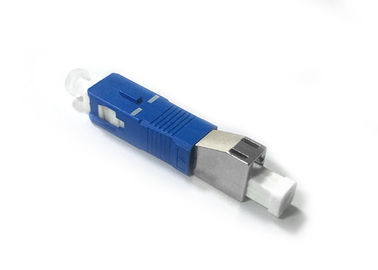

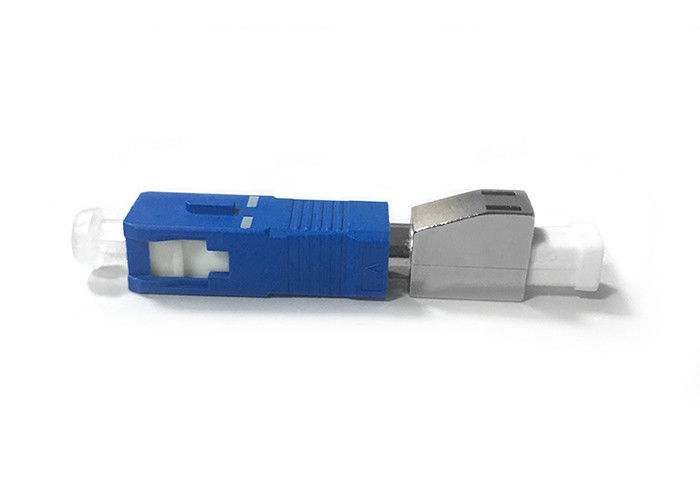

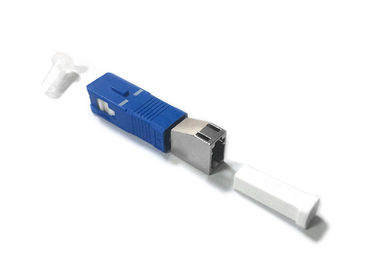

Fiber Optic Transfer Adaptor SC / PC Male to LC / PC Female With Metal LC Port
Fiber Optic Adaptor Description
|Product Name||Transfer Adaptor|
|Connector type||SC male to LC female|
|Mode type||single mode|
|Operating Wavelength||SM:1310/1550nm MM: 850/1300nm|
|Return Loss||UPC: ≥55dB APC: ≥60db|
|Attenuation Tolerance||≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)|
|Maximum Optical Input Power||1000mW|
|Polarization Dependent Loss||≤0.1dB|
|Storage Temperature||-40°C~+ 85°C|
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
