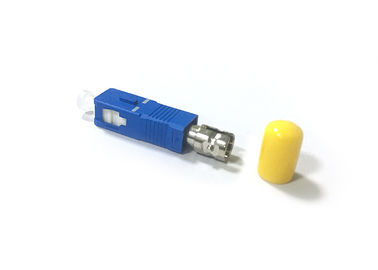

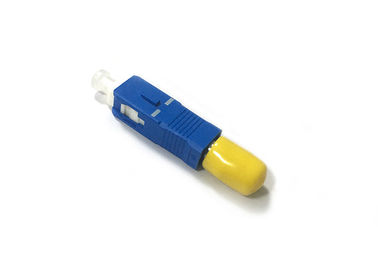

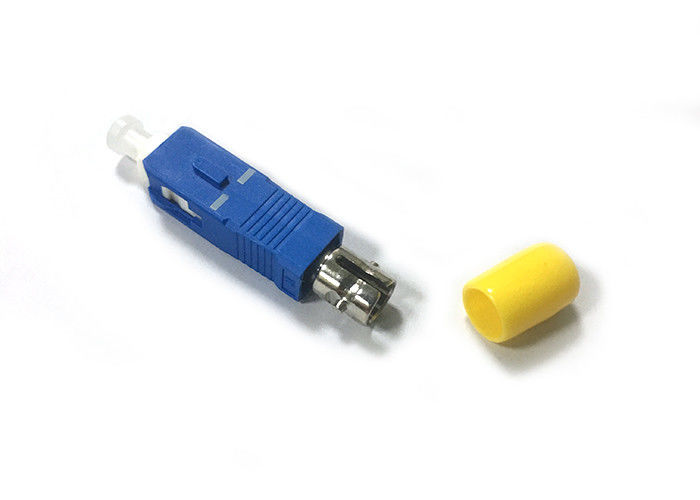

SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port

SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port

  • SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port
  • SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port
  • SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port
SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port
Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SC/PC male - ST/PC female
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: can be negotiated
Packaging Details: standard export package
Delivery Time: 2-10 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Material: SC Plastic Housing And ST Metal Port Connector Type: SC/PC Male - ST/PC Female
Mode Type: Single Mode Repeatability: >1000 Times
Return Loss: UPC ≥55dB APC ≥65dB Ferrule Polishing: UPC
Packing: Standard Export Package Certificate: CE , ISO , RoHS
Application: FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia
High Light:

lc fiber optic adapter


sc simplex adapter

Fiber Optic Adaptor Product Name


SC / PC Male to ST / PC Female Fiber Optic Transfer Adaptor With Metal ST Port




Fiber Optic Adaptor Description

  • 1.This is a Fiber Optic Transfer Adaptor, SC connector ferrule in and ST port out
  • 2.ST Metal port
  • 3.It has Implemented interface conversion between SC and ST
  • 4.Hybrid optical adapters with male to female configuration are very useful in connecting patchcords with different connectors.
  • 5.Because both a connector plug (male) and an adapter socket (female) are provided, this hybrid adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system.



CAD Drawing:

1. Insertion Loss:≤0.5dB
2. Operating Temperature:-40~+75°C
3. Storage Temperature:-40~+85°C


SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port 0




Product Name Transfer Adaptor
Model  Female&Male
Connector type SC male to ST female
Ferrule polishing  UPC
Mode type single mode
Operating Wavelength SM:1310/1550nm MM: 850/1300nm
Return Loss UPC: ≥55dB APC: ≥60db
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C~+75°C
Storage Temperature -40°C~+ 85°C
Humidity 95%RH

Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm



1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China


2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .


3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .


4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .


We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .


EXW price or CFR price will be better . You can contact us for more solution if you need .


5. Q: How is your quality ?

A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .


All the products are 100% test before delivery .


6. Q : Whats your lead time ?

A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .


7. Q : Whats your warranty ?

A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .


8. Q : Whats your packing ?

A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing


9. Q: Can you do OEM/ODM ?

A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .


10. Q: Can I have a sample ?

A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.


11. Q: How can I order ?

A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

3. When you accept the quotation , we will make Profoma Invoice with our bank account .

4. We will arrange the production for you after we received payment .

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

6. We will try our best to meet your requirements for long-term cooperation .


12. Q: What your payment term ?

A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .




Packing for reference :

SC / PC Male To ST / PC Female Fiber Optic Transfer Adapter With Metal ST Port 1
