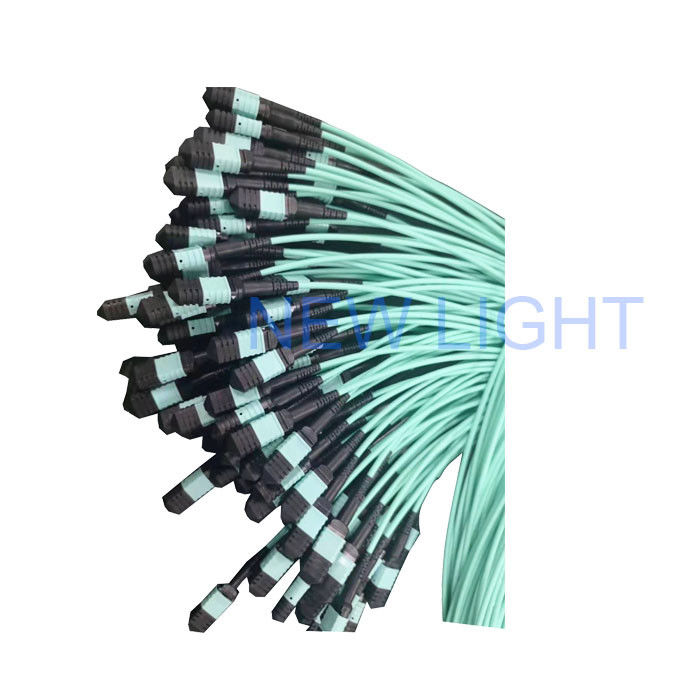

12 strand multimode fiber optic cable mpo connector with mtp mpo fiber ends
MPO MTP Cable Overview
New Light MTP-MTP Patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Ps: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
MPO MTP Cable Application
▪ SM or MM available; PC(plane) or APC(8 degree) available
▪ Different IL index and various color available
▪ Stable performance index by PIN fiexed position of connectingl
▪ Plug type connector with locking structurel
▪ High density which convenient for wiring and management system
▪ Comply with Telcordia GR-1435-CORE and RoHS standard
MPO MTP Cable Features
1 . US Conec MTP connector, Senko MPO Plus premium connector
2 . OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
3 . 0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
4 . Factory terminated and tested
5 . Allow easy migration from 10GbE to 40GbE or 100GbE
6 . Pulling eyes are provided as an option to protect the fiber ends during installation
MPO MTP Cable Technical Parameter
||MPO/MTP(F or M)
||MPO/MTP (F or M)
||-40°C ~ +80°C
||-40°C ~ +85°C
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|The MPO end type
||Male: with guide pin; Female: without guide pin
|Connector type of the other end
||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
|Fiber cable type
||250um ribbon fiber,ribbon cable,Bundle fiber optic cable
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
