19 Rack Mount Fiber Optic Patch Panel 48 Port Adapter Plates Fix Mpo Fiber Patch Panel

Brand Name:	New light
Model Number:	6/24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T, Western Union, MoneyGram ,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Aplication:

Data Centers,pre-terminated Installations

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

19 rack mount fiber patch panel 48 port Adapter Plates fix mpo fiber patch panel

Product description:

Each rack mount patch panel is engineered to provide superior cable management for any fiber network. We offer a variety of fiber patch panels that can accommodate up to 144 fibers. Our rack mount cabinets are customizable and adaptable with the ability to splice, terminate, or do both. Interior cable management and maintenance are simple with these units’ accessible front and rear access designs. These features provide you with the ability and flexibility to meet your current and future fiber optic system needs. We also provide a variety of high-density rack mount patch panels

The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.

Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.

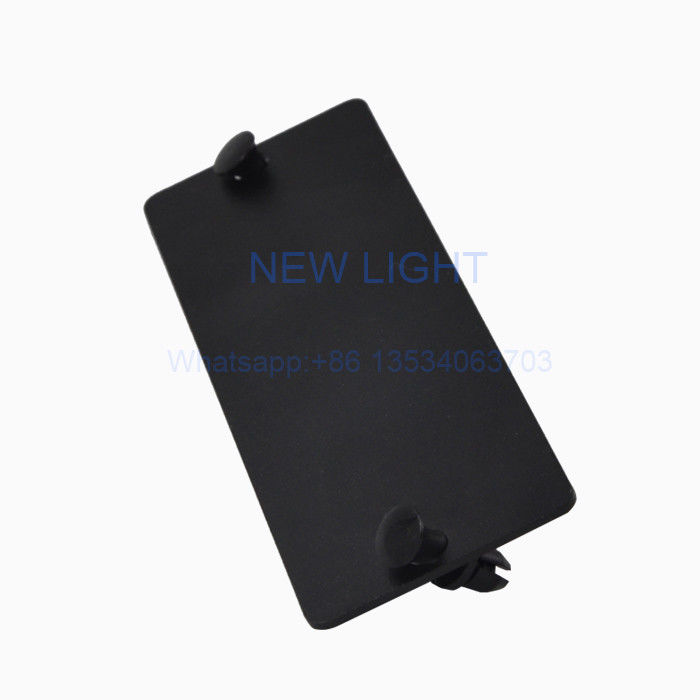

The 1RU and 3RU rack mount models hold standard RLH Fiber Adapter Plates (black) available separately. The Adapter plate holders are also compatible with any LGX foot print adapter plates.

Slide-Out Patch Panel Enclosures are designed for both high and low-density patching and splicing applications. Constructed from durable 14 gauge aluminum, these enclosures are lightweight and rugged. Cable organization features include may slack management spools, cable routing rings and tie down bridge stances. All our rack mount enclosures fit standard 19-inch racks and cabinets.

19 Rack Mount Fiber Optic Patch Panel 48 Port Adapter Plates Fix Mpo Fiber Patch Panel 0

Features:

MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors

Parameter		Unit	FDF-1U	FDF-2U	FDF-3U
Fiber Capacity		Core	≤24	≤48	≤72
Number of Tray		PCS	1	2	4
	Height		1U	2U	3U
Dimension	Width	mm	482	482	482
	Depth	mm	305	305	305
Remark			Rack Mount	Rack Mount	Rack Mount

Applications:

· Telecommunication networks

· Local Area Networks

· FTTH

· CATV networks

· Active device termination

Features & Benefits:

· Low excess loss & high performance

· Retractable splicing tray

· Convenience and ease of handling

· Indoor use, outdoor use customizable

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

19 Rack Mount Fiber Optic Patch Panel 48 Port Adapter Plates Fix Mpo Fiber Patch Panel 1

19 Rack Mount Fiber Optic Patch Panel 48 Port Adapter Plates Fix Mpo Fiber Patch Panel 2

Dimension:

Model	fiber quantity	Height	Dimension(LxWxH)
rack mount	12 /24 /48 /96 core	1U	430354.144mm

19 Rack Mount Fiber Optic Patch Panel 48 Port Adapter Plates Fix Mpo Fiber Patch Panel 3
