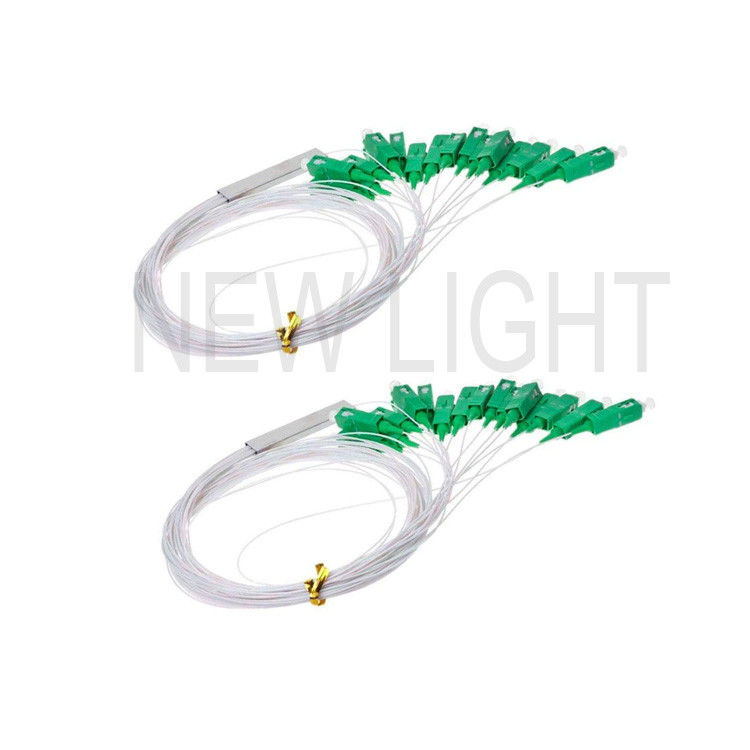

|Product Name:||1 In 2 Out Mini Type PLC Splitter||Connector Type:||SC / E2000|
|Mode Type:||Single Mode||OEM / ODM:||Acceptable|
|Tube Materials:||Stainless Steel||Certificate:||CE , ISO , RoHS|
|Cable Length:||1~3m||Cable Diameter:||0.9mm , 0.6mm, 0.25mm|
fiber optic plc splitter,
single mode fiber splitter
Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
• We provides uniquely low excess loss, along with low polarisation and temperature dependence for all ports. These high performance parts are available in a wide variety of split ratios, housing and connector options and can therefore be readily specified in a wide variety of applications, like FTTx, Passive Optical Networks (PON), Local Area Networks (LAN), Test Equipments etc. Rollball offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. Available in single, dual, and tripple wavelength windows (1310/1490/1550nm).
•Our PLC splitters are tested based on the strictest standards of the industry, and we guaranteequality, turnaround and competitive pricing.
Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Optical Signal Distribution
Low Insertion loss
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability
|Operating Wavelength (nm)||1260~1650|
|Fiber Type||SMF-28e or customer specified|
|Insertion Loss (dB)(S/P Grade)||4.0/3.8||7.3/7.0||10.5/10.2||13.7/13.5||16.9/16.5||21.0/20.5|
|Loss Uniformity (dB)||0.4||0.6||0.8||1.2||1.5||2.5|
|Return Loss (dB) (S/P Grade)||50/55||50/55||50/55||50/55||50/55||50/55|
|Polarization Dependent Loss(dB)||0.2||0.2||0.3||0.3||0.3||0.4|
|Wavelength Dependent Loss(dB)||0.3||0.3||0.3||0.5||0.5||0.5|
|Temperature Stability(-40~85 °C)(dB)||0.5||0.5||0.5||0.5||0.5||0.5|
|Operating Temperature (°C)||-40~85|
|Storage Temperature (°C)||-40~85|
|Module Dimension (mm) (L×W×H)||100×80×10||100×80×10||100×80×10||120×80×18||140×115×18||140×115×18|
The tube size(mm): 50x4x4
The PLC optical splitter MINI module not only available in a variety of split modes and package types, but also can be customized according to customer requirements.
