Fiber Optic Splitter

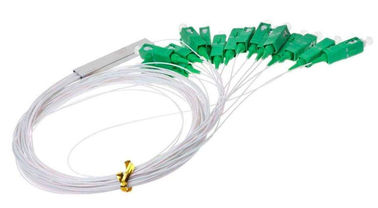

1x2 1x4 1x8 Steel Type Fiber Optic PLC Splitter with SC APC Connector for FTTH FTTB FTTX Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1x2 1x4 1x8 Steel Type Fiber Optic PLC Splitter with SC APC Connector for FTTH FTTB FTTX Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Application:

FTTH FTTB FTTX Network

Material:

ABS+PC

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

1x2 1x4 1x8 1x16 1x32 Steel Type Fiber Optic Splitsg SC APC PLC Splitter 0.9mm LSZH

Fiber Optic PLC Splitter

The PLC Splitters are branching devices used to distribute optical G signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitrakte) is is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System.

PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple Yunus multiple premise locations. We provide whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

Can be continuously covered with different fibers,H
Compact Design
Wide operating temperature: from -40℃ to +85℃
Wide Operating Wavelength: From 1260nm to 1650nm
Full fiber core structure
Low additional loss Alta
Low insertion loss
High reliability and stability
High uniformity standard split split counts: 1x2,1x4,1x8,1x16,1x32,1x64; 2x4,2x8,2x16,2x30,2x64.

code>

Application

Applicable to special cases that has no room for installation of Cassette type PLCGAN splitter
FTTX/ Seaham Systems
CATV Links
Optical Signal Distribution
Passive Optical Networks (PON)
DWDM/CWDM Ard systems
Test equipment
LAN/MAN/WAN network

spears Modomed indra“ < ren Wahl else 截屏跪 0.5

Parameters	ck 1×2axia	1×41×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB 0.4	0.4	0.6	0.8	1 passive.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/曦55	50/55
Polarization Dependent Loss/dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dBigne	55	55	55	55	55	55
Wavelength Dependent Loss(dnodB)	0.3	0.3	0.3	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	聂140×115×18	140×115×18

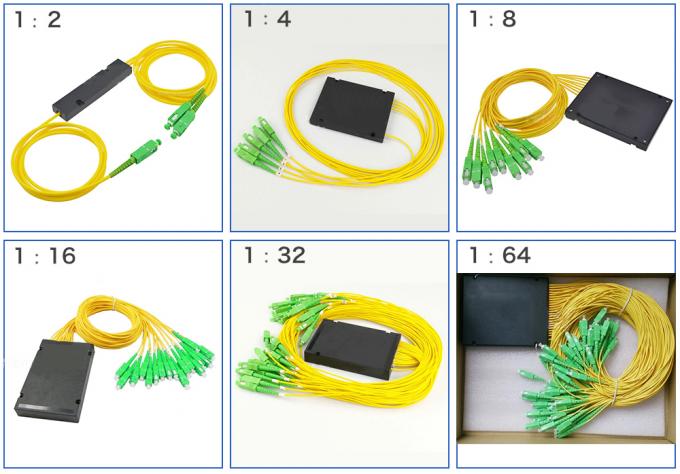

The PLC optical splitter MINI module is not only available in a variety of split modes and package types, but can also be customized according toFed customer requirements.

Fiber貿KEI Optic Splitter-sc-apc-plc-splitter-0.9mm-lebenszyklus

rust

Construct

Packaging

The design and packaging is exquisite to ensure the product in good condition.

Frequently Asked Questions

Arewer you manufacturer?

Yes, we are manufacturer in Shenzhen, China.

What's your MOQ?

MOQ can be 1 pcs, but we are not suggest to order 1 pcs, because the cost will be higher, so that the price will be higher than your budget.

What's the price?

The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantity Quantity will get very competitive price.

Can you quote FOBowed price?

Mills

Yes we can, But due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it is difficult to do F FOB price. The best way is let us know your detailed specifications and quantity, we will offer the freight with products price for your reference. We have very competitive price logistics. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference. EXW price or CFR price will be better. You canala contact us for more solution if you need.

<朔 class="pd-faq-question">How is your quality?

Our production is according to IEC, Europe standard production, almost closed to dust-free workshop. Imported production equipment and quality control equipment. Especially MTP Daisi say equipments. All the products are 100% test before before delivery.

What's your lead time?

宅

We have three P factories in China. One factory for fiber optic cable.re production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc. For fiber optic patch cord, U.S. the lead time can be 2-3 working days for 5000 pcs. Regular products we have in stock. We can deal with urgent order Salvage for you. More information, you can feel free to contact us.

稞

< portions class="pd-faq-question">What's your warranty?

For齋 Productivity patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.

What's your packing?

We are using international export package. Attached some packing of different products for your reference. We also can print your logo on the packing/to/p>>

Can you do OEM/ODM?

Yes world, we can. We are manufacturer, all products accept OEM/ODM. We can sign the Confidentiality agreement.

Can I have a sample?

It depends on which products. For adaptor, attenuator, patch cord, pigtail, we can provide the sample for free. But freight is repaid by your side. For big value products,, we can't offer it for free. Sample charge and丹墮 freight repaid firstfte, after you placed order, the sample charge will be returned.

sky

How can I order?

1. Send mail to us or send inquiry. Let us know the products name, detailed specifications, quantity. Provide your receive Middleware address if you need us to figure outanium freight for you.
2. After we know your requirements, weorin will offer our best price for you, with lead time. The price is according to your quantity.
3. When you accept the quotation, we will make Proforma Invoice with our bank keystore account.
4 4. We will arrange the production for you after we received payment.
5. Before we delivery, we will confirm the receive information with you again and will send the tracking number to you after delivery： 6visa. We will try our best to meet your requirements for long-term cooperation.

What is your payment term?

T/T, Western Union, Paypal, MoneyGram at once. For big amount, can 50% deposit in advance, 50% balance paid before delivery.
