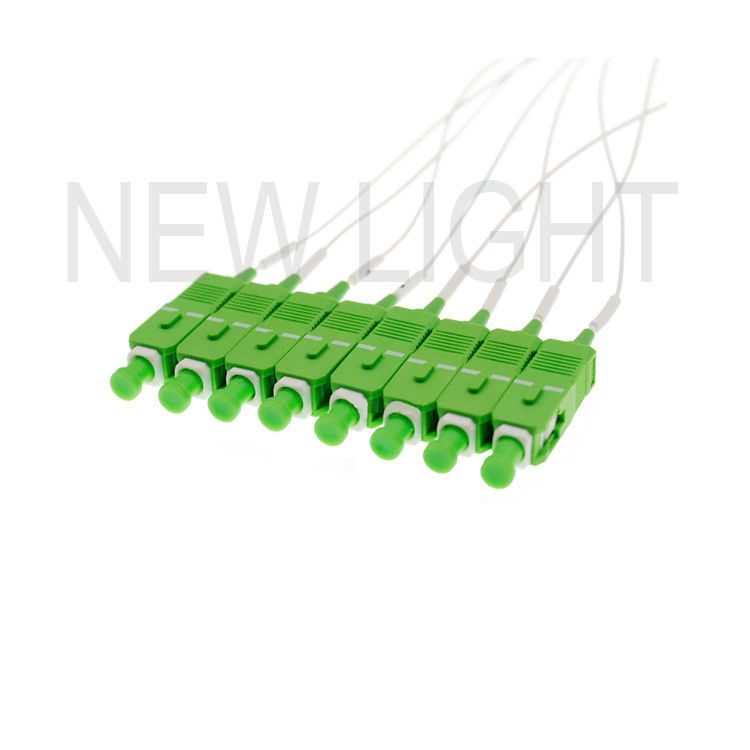

1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8

1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8

    • 1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8
    • 1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8
  • 1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE , ISO ,RoSH
    Model Number: Mini Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: opp bag + carton box
    Delivery Time: 2-10 working days
    Payment Terms: T/T, Western Union, MoneyGram, paypal
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Connector Type: SC / E2000 Mode Type: Single Mode
    OEM / ODM: Acceptable Tube Materials: Stainless Steel
    Certificate: CE , ISO , RoHS Cable Length: 1~3m
    Cable Diameter: 0.9mm , 0.6mm, 0.25mm Application: FTTH FTTB FTTX Network
    Material: ABS+PC

    1*8 fiber optic with connector 1x8 steel tube sc apc gpon plc splitter 1:8







    Features


    Low insertion loss,high return loss
    • Excellent Temperature stability
    • Good repeatability and exchangeability
    • Excellent mechanical endurance
    • Strict curing time and temperature control
    • Strict testing standards and methods for quality
    • Environment protection (ROHS Compliance)
    • The fiber optical patch cord can be customized according to customers'specific
    requirements (Customized Connector/Length/package...)
    • 100% NEW raw material and well quality control ensure the best life time.


    Application


    ●Applicable to special cases that has no room for installation of Cassette type PLC splitter

    ●FTTX/FTTH Systems

    ●CATV Links

    ●Optical Signal Distribution

    ●Passive Optical Networks (PON)

    ●DWDM/CWDM systems

    ●Test equipment

    ●LAN/MAN/WAN network



    Fiber Optic PLC Splitter


    The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

    All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements



    Parameters 1×2 1×4 1×8 1×16 1×32 1×64
    Operating Wavelength (nm) 1260~1650
    Fiber Type SMF-28e or customer specified
    Insertion Loss (dB)(S/P Grade) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
    Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
    Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55 50/55
    Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.3 0.4
    Directivity (dB) 55 55 55 55 55 55
    Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
    Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
    Operating Temperature (°C) -40~85
    Storage Temperature (°C) -40~85
    Module Dimension (mm) (L×W×H) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18







    The PLC optical splitter MINI module not only available in a variety of split modes and package types, but also can be customized according to customer requirements.





    1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8

    1*8 Fiber Optic With Connector 1x8 Steel Tube Sc Apc Gpon Plc Splitter 1/8




    Pakcing



    The design and packaging is exquisite to ensure the product in good condition.







    FQA



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
