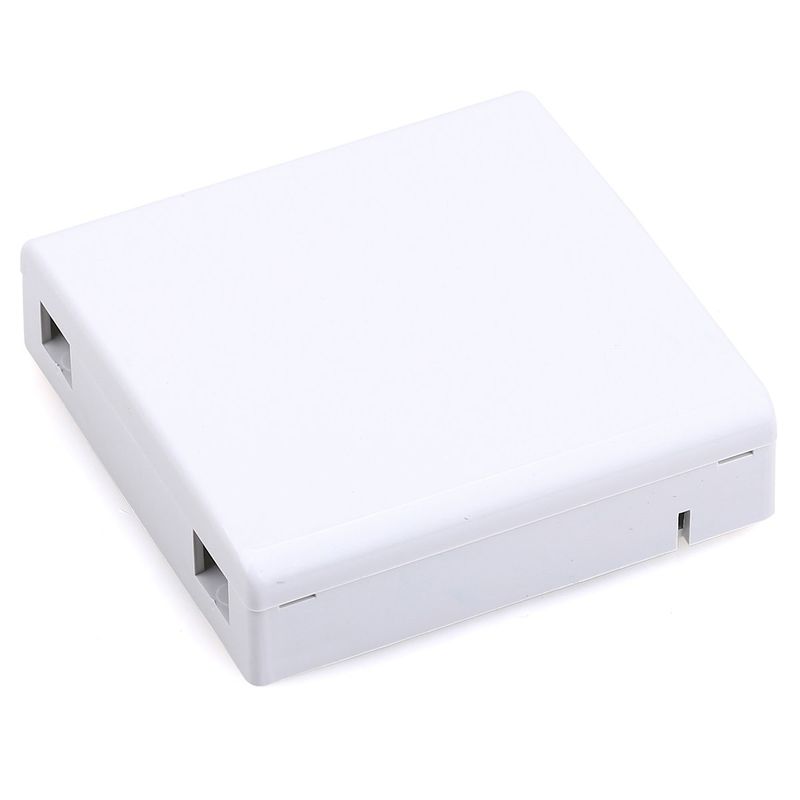

Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box

Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box
Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box

Large Image :  Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box

Product Details:
Place of Origin: China
Brand Name: New Light
Certification: CE
Model Number: terminal box
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiate
Packaging Details: 1 piece per pack
Delivery Time: within 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box

Description
Color: White Material: ABS,PC
Name: Splitter Box OEM: Avalaible
Type: 4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable Connector Type: SC/APC Or SC/UPC,SC/APC/PC
Installation: Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord Ip: 65
Product Name: Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu Application: FTTH FTTB FTTX Network,Telecommunication,WANS,CATV
High Light:

wall mount fiber termination box

,

fiber optic termination box

2 port indoor plastic 2 Fiber Wall Outle ftth fiber optic termination box​



Description



The FTB86 customer terminal box socket panel are used in the end termination of residential buildings

and villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it may

adaptvariety of optical connection styles and the optical fiber can be managed effectively and quickly

installed within an office,house or communication room environment.


Advantage:



Economic design
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
compact,low profile, wall mounted unit used for small and large business premise



Technical Data:



Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.



Features



Used in FTTH indoor application,home or work area

Provide users with optical access or data access

Suitable for 2pcs SC adapters

Store surplus fiber inside,easy for operation



Indoor Plastic FTTH Termination Box , 2 Fiber Wall Outle Cable Termination Box 0



Adapter Capacity 02 Adapters
Splice Trays /
Splice Capacity 02 Splices
Ports 1 Input Port / 4 Output Ports
Material PC/ABS
Height 86 mm
Width 86 mm
Depth 19mm
Color White
Port Capacity 2 ports, each port for 1 cable with max 10mm


Application:


Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV



Parameters:

Model Capacity Type XX: Adapter XX: Pigtail
FFS 2 B SC: SC/UPC SC: SC/UPC
AS: SC/APC AS: SC/APC
LC: LC/UPC LC: LC/UPC
AL: LC/APC AL: LC/APC





FAQ

Q:Are you trading company or manufacturer ?
A:We are factory.

Q:How long is your delivery time?
A:Generally it is 7-15 days if the goods are in stock.Or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:How about your after-sales service?

A:We offer you 24 hours service phone, 9 hours with mail.

Q:What is your terms of payment ?

A:Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shippment.



If you have another question, pls feel free to contact us as below:
