|Type:||4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable||Connector Type:||SC/APC Or SC/UPC,SC/APC/PC|
|Installation:||Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord||Ip:||65|
|Product Name:||Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu||Application:||FTTH FTTB FTTX Network,Telecommunication,WANS,CATV|
wall mount fiber termination box,
fiber optic termination box

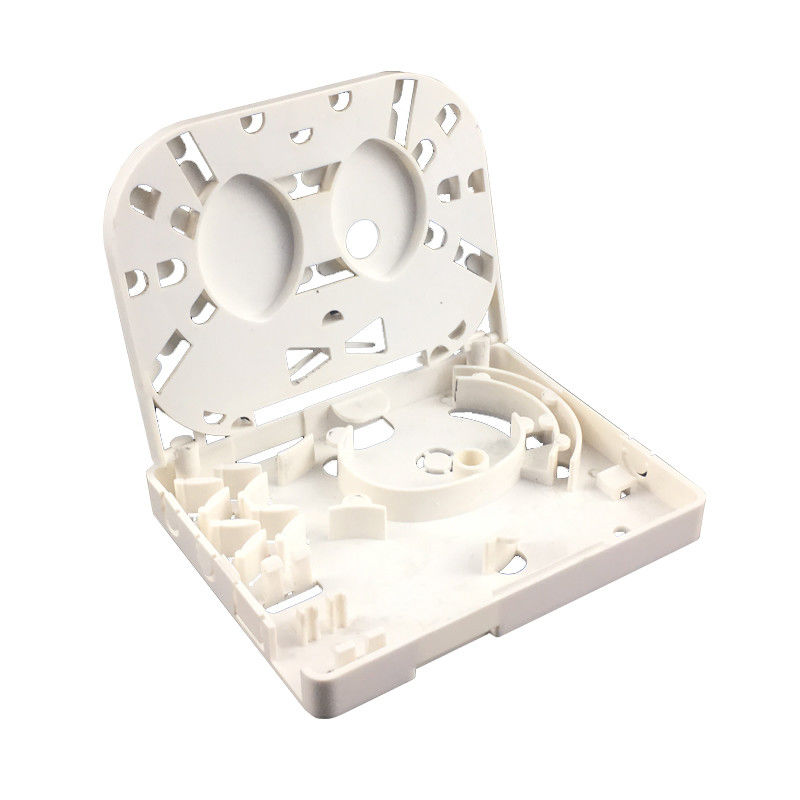

4 Port PC+ABS Mini fibre optic termination box Plastic Box fiber termination
This indoor wall mount 2-fiber distribution box includes a low profile design and perfect interconnection between central office and dwelling units of FTTx applications. Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. This FDU is preloaded and includes 2 simplex SC adapters with dust covers and 1 SC 2 meter pigtail. Applications include: FTTH, FTTB, FTTC, Telecommunication Network, CATV, Local Area Network.
Wall mounting installation
Suitable for 2*3mm FTTH Drop Cable
Standard 86 type panel, small size and simple operation
Large arc-shaped winding column to avoid the potential damage risks
UL94 V1 flame retardance complied (UL94 V0 is available upon request)
Multi-function optical fiber socket for a variety of cables and multi-mode access
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site.
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
compact,low profile, wall mounted unit used for small and large business premise
Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.
|Adapter Capacity||02 Adapters|
|Splice Capacity||02 Splices|
|Ports||1 Input Port / 4 Output Ports|
|Port Capacity||2 ports, each port for 1 cable with max 10mm|
Telecommunications subscriber loop
Fiber to the home (FTTH)
|Model||Capacity||Type||XX: Adapter||XX: Pigtail|
|FFS||2||B||SC: SC/UPC||SC: SC/UPC|
|AS: SC/APC||AS: SC/APC|
|LC: LC/UPC||LC: LC/UPC|
|AL: LC/APC||AL: LC/APC|
