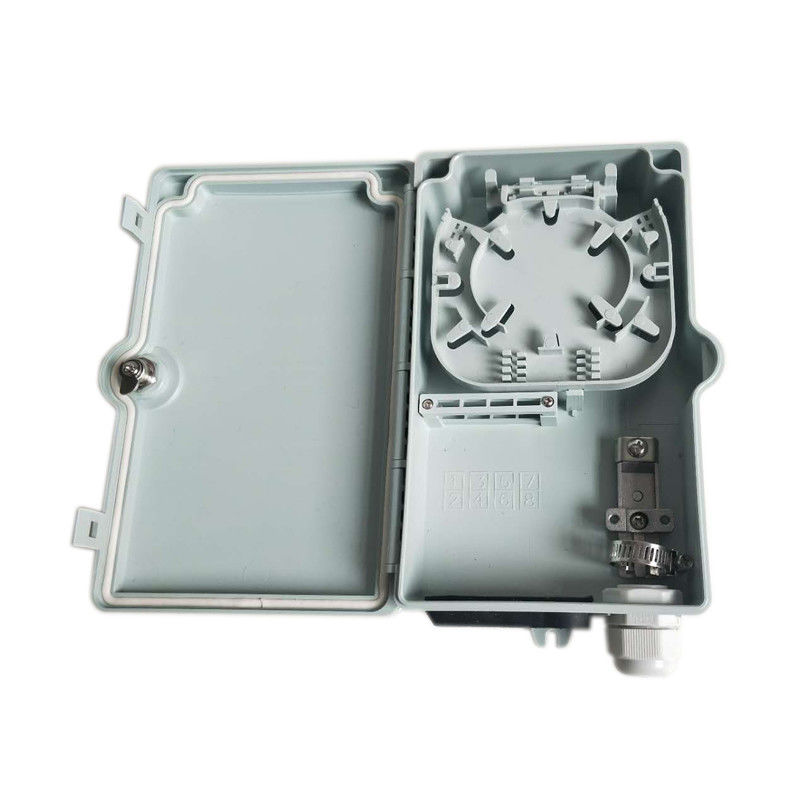

Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box

Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box
Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box

Large Image :  Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box

Product Details:
Place of Origin: China
Brand Name: New Light
Certification: CE
Model Number: terminal box
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiate
Packaging Details: 1 piece per pack
Delivery Time: within 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box

Description
Color: White Material: ABS,PC
Name: Splitter Box OEM: Avalaible
Type: 4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable Connector Type: SC/APC Or SC/UPC,SC/APC/PC
Installation: Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord Ip: 65
Product Name: Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu Application: FTTH FTTB FTTX Network,Telecommunication,WANS,CATV
High Light:

wall mount fiber termination box

,

fiber optic termination box

Waterproof Gland 4Core optical fiber distribution box / Fiber Optic Small Box



Description



This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable.

The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor.



Feature



ABS material used ensures the body strong and light.
Water-proof design for outdoor uses.
Easy installations: Ready for wall mount – installation kits provided.
Adapter slots used – No screws and tools needed for installing adapters.
Ready for splitters: designed space for adding splitters.
Space saving! Double-layer design for easier installation and maintenances:
Lower layer for splitters and over length fiber storage.
Upper layer for splicing, cross-connecting and fiber distribution.
Cable fixing units provided for fixing the outdoor optical cable.
Protection Level: IP65.
Accommodates both cable glands as well as tie-wraps
Lock provided for extra security





Advantage:



TIA/EIA 568.C, Optical Fiber Cabling Components Standard
IEC61754, Fiber optic connector interfaces Standard
ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
RoHS (Directive on Restriction of Hazardous Substances. )



Technical Data:



Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.



Waterproof Gland 4 Core Optical Fiber Distribution Box / Small Fiber Optic Box 0



Adapter Capacity 02 Adapters
Splice Trays /
Splice Capacity 02 Splices
Ports 1 Input Port / 4 Output Ports
Material PC/ABS
Height 86 mm
Width 86 mm
Depth 19mm
Color White
Port Capacity 2 ports, each port for 1 cable with max 10mm


Application:


Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV



Parameters:

Model Capacity Type XX: Adapter XX: Pigtail
FFS 2 B SC: SC/UPC SC: SC/UPC
AS: SC/APC AS: SC/APC
LC: LC/UPC LC: LC/UPC
AL: LC/APC AL: LC/APC
