Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded

Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded
Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded
Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded

Large Image :  Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded

Product Details:
Place of Origin: China
Brand Name: NL
Model Number: NLFTTH1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden wheel
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 m per day

Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded

Description
Certification: ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS Fiber Type: Singlemode G652D ,G657A
Outer Jacket Material: LSZH Strength Member Material: KFRP / FRP / Steel Wire
Packaging: Wooden Wheel Test Repor: Out Package Of The Cable
Fiber Struction: Figure8 Usage: Aerial
Type: Single-Mode Or Multi-Mode Jacket Material: LSZH,PVC,PE,TPU,PVC/LSZH
High Light:

duplex fiber optic patch cable

,

fiber optic drop cable

GYTS GYTA GYFTA Stranded Loose Tube Armored Fiber optic cable

Description

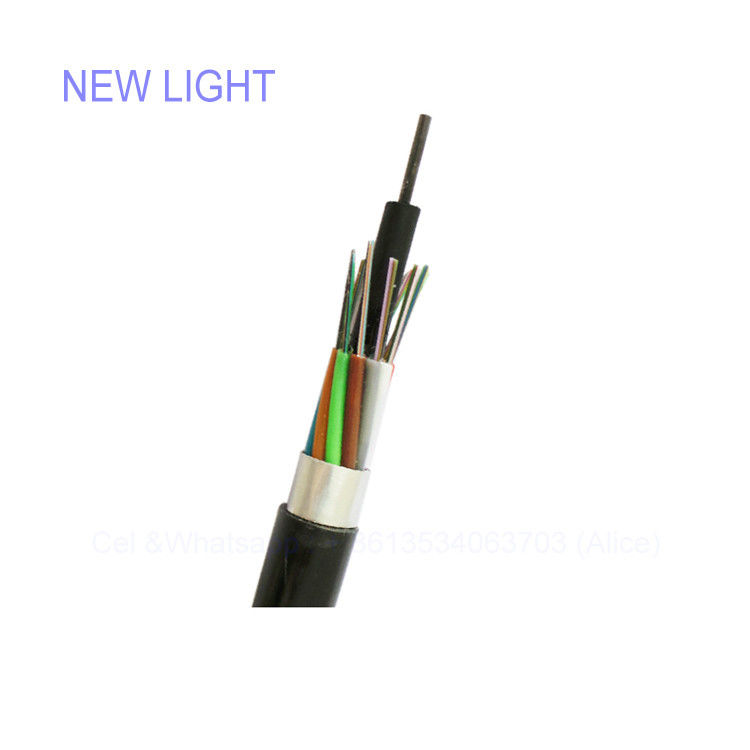

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire,sometimes sheathed with polyethylene (PE) for cable with high fiber count,
locates in the center of core as a metallic strength member .Tubes (and fillers) are stranded around the strength member
into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling
compound to protect it from water ingress. The cable is completed with a PE sheath.


Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· The following measures are taken to ensure the cable watertight:
. Steel wire used as the central strength member
. Loose tube filling compound
. 100% cable core filling
. PSP enhancing moisture-proof

Standards
GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.


 G.652G.65550/125μm62.5/125μm
Attenuation@850nm  ≤3.0 dB/km≤3.0 dB/km
(+20)@1300nm  ≤1.0 dB/km≤1.0 dB/km
 @1310nm≤0.36 dB/km≤0.40 dB/km
 @1550nm≤0.22 dB/km≤0.23dB/km
Bandwidth (Class A)@850nm  ≥500 MHz·km≥200 MHz·km
@1300nm  ≥1000 MHz·km≥600 MHz·km
Numerical Aperture  0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc≤1260nm≤1480nm





Packing

Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded 0

Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded 1



ItemIndex
Length and packaging2000m/3000 plywood reel
Packaging detailswooden wheel




Application

Ideal Solution for Tight-Buffered Distribution Waterproof Indoor/Outdoor Cable
Distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Loose Tube Armored Fiber Optic Cable Single Mode GYTS GYTA GYFTA Stranded 2




Packaging & Shipping
NEW LIGHT offers standardized packaging of cable, and we can ship it as soon as possible for adequate inventory. We pack the cable with roll, then put it into carton. The package provide good protection for cable. Usually we only attach test report on the out package of the cable, but we could also mark as your requirements.
