Direct Burial Fiber Optic Cable GYTY53 12/24/36/48/72/96/144/216/288 Core

12/24/36/48/72/96/144/216/288 Core direct burial fiber optic cable GYTY53

Description

GYTY53 fiber optic cable is used for direct buried underground, it suit for long distance and LAN fiber communications, we supply both the single mode GYTY53 cable and multimode GYTY53 cables.

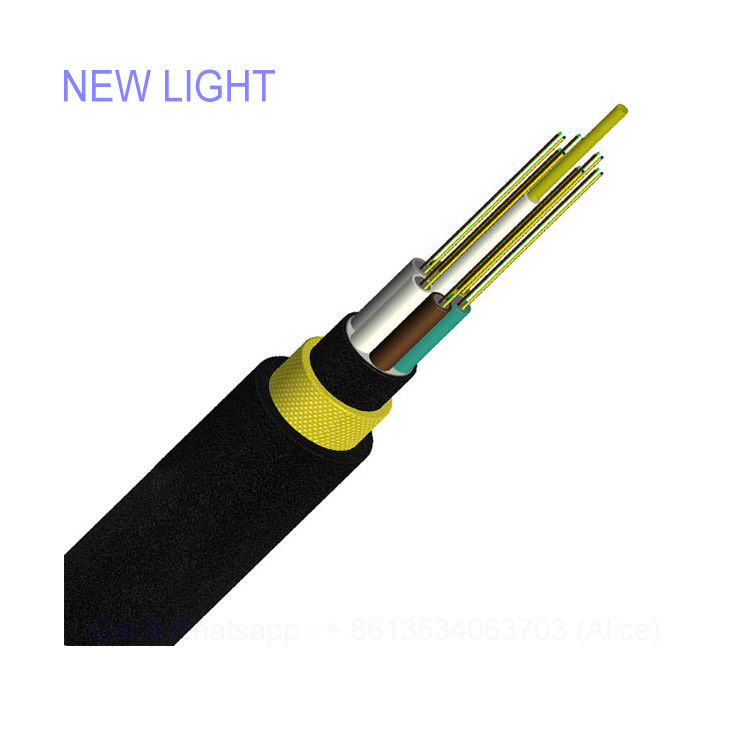

GYTY53 fiber cable is stranded loose tube structure with steel tape double sheaths, the loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube ,which keeps the fiber stress-free while the cable is subjected to longitudinal stress. GYTY53 cable is steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.GYTY53 is available from 2 cores to 144 cores.

Fiber optic cable GYTY53, 2~144 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber, detailed specification on your request.

Fiber Optic Cable GYTY53 Features:

♦ Low dispersion and attenuation
♦ Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
♦ Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
♦ With small cable diameter, light cable weight, easily to lay
♦ Operating Temperature : -40 ~ +60 ℃

Fiber Optic Cable GYTY53 Applications:
♦ Laying modes: Direct Buried
♦ Long-distance communication, local trunk line, CATV & computer networks system


Standards

GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.





Packing








Application

Ideal Solution for Tight-Buffered Distribution Waterproof Indoor/Outdoor Cable
Distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.






Packaging & Shipping
NEW LIGHT offers standardized packaging of cable, and we can ship it as soon as possible for adequate inventory. We pack the cable with roll, then put it into carton. The package provide good protection for cable. Usually we only attach test report on the out package of the cable, but we could also mark as your requirements.



FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 7-15 days if the goods are in stock . Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How about your after-sales service?
A:We offer you 24 hours service phone, 9 hours with mail.
Q:What is your terms of payment ?
A:Payment<=10000USD, 100% in advance . Payment>=10000USD, 30% T/T in advance , balance before shippment.
