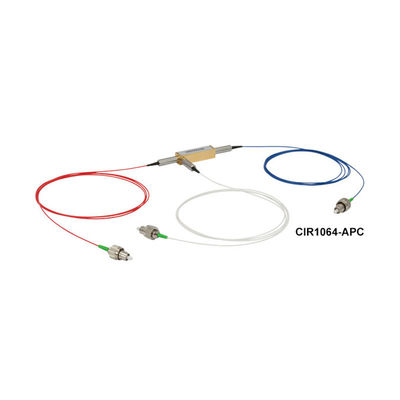

1064nm Wavelength Optical Fiber Circulator with FC APC Connector for Single Mode Applications

Brand Name:	New Light
Model Number:	FC APC
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connector

Connector Type:

FC APC/ FC PC

Mode Type:

Single Mode

Operating Wavelength:

1064nm

≤0.2dB

Return Loss:

≥ 50dB

Cross Talk:

≥ 45dB

Application:

Fiber Laser,Fiber Optical Amplifier

MAX INSERTION LOSS*:

0.8 DB

ISOLATION*:

≥40 DB

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

FC APC Connector Optical Fiber Electronic Circulator

Single Mode Optical Fiber Parts for advanced communication systems and optical applications

Product Overview

Single Mode (SM) Optic Circulators are non-reciprocating, one-directional, three-port devices designed for a wide range of optical setups and applications. These circulators feature high isolation and low insertion loss, making them ideal for advanced communication systems as add-drop multiplexers, bi-directional pumps, and chromatic dispersion compensation devices.

Key Features

High isolation and high return loss
Low insertion loss and PDL (Polarization Dependent Loss)
Optical path epoxy free design

Applications

Fiber optical amplifiers
Fiber lasers
DWDM systems using Fiber Bragg Gratings
Bi-directional communication over single fiber

Technical Specifications

Parameter	Unit	Specifications
Operating wavelength	nm	1064
Bandwidth	nm	±5 \| ±10 \| ±20 \| ±30
Isolation	dB	≥25 \| ≥23 \| ≥20 \| ≥20
Insertion Loss @ Band, 23℃	dB	≤2.1 \| ≤2.6 \| ≤3.2 \| ≤3.8
PDL	dB	≤0.2
Return Loss	dB	≥50
Cross Talk	dB	≥45
Maximum Optical Power	mW	≤300
Fiber Type	/	Hi1060
Operation Temperature	°C	0~50
Storage Temperature	°C	-40~85
Package Dimension	mm	34x8.4x8.4(P1)

All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature. Specifications are subject to change without notice.

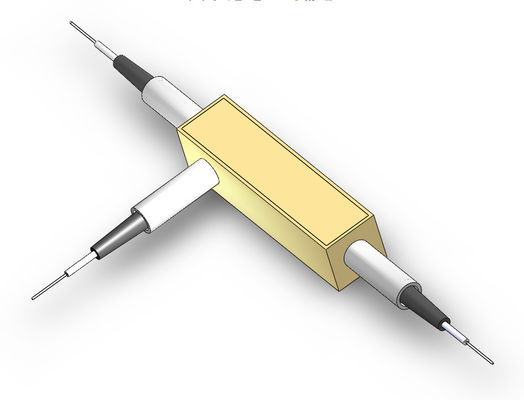

Product Dimensions

Ordering Information

Example: CIR-12210

CIR-	Wavelength	Bandwidth	Fiber Type	Fiber Length	Connector Type
Product Code	1. 1064nm	1. ±5nm	1. 250μm fiber	1. 0.5 +/- 0.1 m	0. No Connector
	2. Others	2. ±10nm	2. 900μm fiber	2. 1.0 +/- 0.1 m	1. FC/UPC
		3. ±20nm	3. Others	3. Others	2. FC/APC
		4. ±30nm			3. SC/UPC
					4. SC/APC
					5. LC/PC
					6. MU/PC
				7. Others
