Product Details:
|
| Product Name: | SM Optical Circulators, 1310 Nm Optical Fiber Circulator Single Mode Type | Connector Type: | FC/PC Connectors/ FC/APC Connectors |
|---|---|---|---|
| Mode Type: | Single Mode | Center Wavelength: | 1310 Nm |
| PDL: | ≤0.2dB | Return Loss: | ≥ 50dB |
| Cross Talk: | ≥ 45dB | Fiber Type: | Hi1060 |
| Operation Temperature: | 0~50℃ | Wavelength Range: | 1280 - 1340 Nm Or 1280 - 1400 Nm |
| High Light: | single mode fiber splitter,fiber optic cable splitter |
||
Optical Fiber Circulator Product Name
SM Optical Circulators, 1310 nm Optical Fiber Circulator single-mode type
Optical Fiber Circulator Description

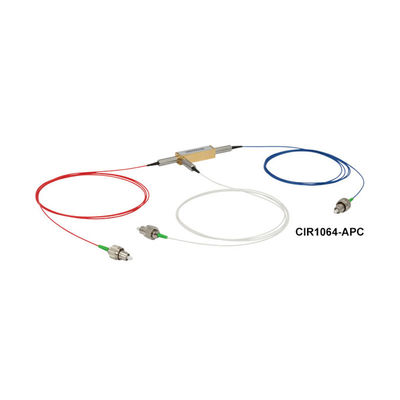

1310 nm SM Fiber Optic Circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors. The FC/PC and FC/APC connectors have a 2 mm narrow key.
Our CIR1310, CIR1310-FC and CIR1310-APC circulators have a maximum power handling of 300 mW (CW).
The CIR-1310-50-APC broadband fiber optic circulator is specifically designed for OCT applications. This circulator boasts a broader wavelength range than our standard 1310 nm SM fiber optical circulator and has a maximum power handling of 500 mW (CW).
Circulators can be used to send optical signals through a single fiber in two directions.
An optical circulator is analogous to an electronic circulator and both perform similar functions.
An optical circulator is a three-port device that allows light to travel in only one direction.
A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.
Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free
Optical Fiber Circulator Applications
Optical Fiber Circulator Specifications
| Item | Unit | Parameters | |||
| Operating wavelength | nm | 1064 | |||
| Bandwidth | nm | ±5 | ±10 | ±20 | ±30 |
| Isolation | dB | ≥25 | ≥23 | ≥20 | ≥20 |
| Insertion Loss@Band,23℃ | dB | ≤2.1 | ≤2.6 | ≤3.2 | ≤3.8 |
| PDL | dB | ≤0.2 | |||
| Return Loss | dB | ≥ 50 | |||
| Cross Talk | dB | ≥ 45 | |||
| PDL | dB | ≤ 0.1 | |||
| Maximum Optical Power | mW | ≤ 300 | |||
| Fiber Type | / | Hi1060 | |||
| Operation Temperature | 0C | 0~50 | |||
| Storage Temperature | 0C | -40~85 | |||
| Package Dimension | mm | 34x8.4x8.4(P1) | |||
Note:
2. Specifications are subject to change without notice.
Optical Fiber Circulator Dimension(mm)
Optical Fiber CirculatorOrdering Information(Example:CIR-12210)
| CIR- | □ | □ | □ | □ | □ |
| Wavelength | Bandwidth | Fiber Type | Fiber Length | Connector Type | |
|
1.1064nm |
1.±5nm |
1.250μm fiber |
1.0.5 +/- 0.1 m |
0.No Connector |
