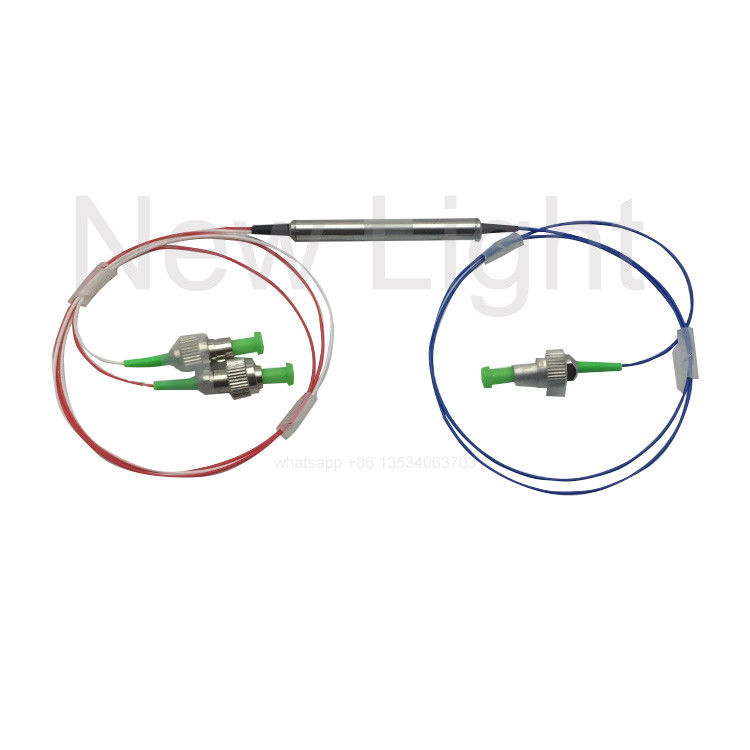

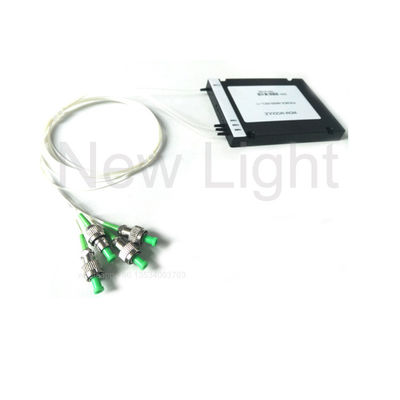

3 Ports Optical Mux Demux 100Ghz 200Ghz 1x2 DWDM Device ITU Channel

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Mode Type:

Single Mode

Insertion Loss:

≤ 2.5 DB

Connector Type:

SC/UPC

Nuber Of Channels:

8 Channel

Wavelength:

1470-1610nm

Passband Ripple:

≤0.30dB

Return Loss:

≥45dB

Derectivity:

≥50dB

Fiber Type:

Corning SMF-28 Ultra

Supply Ability:

1000000

Highlight:

outdoor fiber termination box

wdm in optical fiber

Product Description

3 Ports Optical Mux Demux 100Ghz 200Ghz 1x2 DWDM Device ITU Channel

1.Description:

100GHz/200GHz 1x2 wavelength multiplexer utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.

The 3 ports FWDM use the thin film filter to ensure high quality and perfect optical performance. It can achieve 1310&1490, 1550 two channel optical signal Mux and Demux, and was widely used in CATV, Telecommunications, Internet and so on.

2.Features:

ITU Grid 100G or 200G channel spacing

Low Insertion Loss

Wide pass band

High channel isolation

Epoxy-free on Optical Path

High stability and reliability

3.Applications:

DWDM Network

Wavelength Routing

Fiber Optical Amplifier

CATV Fiber Optic System

Channel Add/Drop

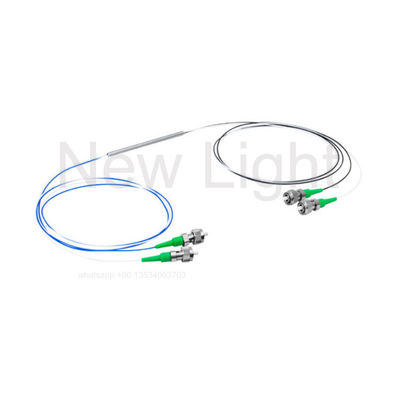

3 Ports Optical Mux Demux 100Ghz 200Ghz 1x2 DWDM Device ITU Channel 0

Applications

Access networks
Metro WDM systems
Long haul WDM systems
Enterprise networks

Specifications

Item	Unit	Parameters
Channel spacing	GHz	200
Wavelength range		C- or L-band ITU channels 186.6 to 196.1 THz
Passband	GHz	≥+/- 33
Transmission passband ripple	dB	≤0.3
Transmission insertion loss	dB	≤1.0
Reflection passband ripple	dB	≤0.2
Reflection insertion loss	dB	≤0.4
Transmission isolation (adj channel)	dB	≥30
Transmission isolation (non-adj channel)	dB	≥50
Reflection isolation	dB	≥13
Polarization dependent loss	dB	≤0.2
Polarization mode dispersion	ps	≤0.2
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≥500
Tensile Load	N	≥5
Operating temperature range		-5 to 70
Storage temperature range		-40 to +85 0C
Fiber type		SMF-28e
Package dimension	mm	5.5 x 34mm

Note: All the specifications are based on the devices without connectors, and guaranteed over
wavelength, polarization and temperature.

Dimensions drawing( mm)

3 Ports Optical Mux Demux 100Ghz 200Ghz 1x2 DWDM Device ITU Channel 2

Spectral plot (dB)

Ordering information

Product	Channel Frequency	Tube	Fiber length	Connector
200G	ITU Grid	1=250um fiber	1=0.5+/-0.1m	0=No connector
DWDM Filter	In C-band	2=900um fiber	2=1.0+/-0.1m	1=FC/UPC
		3=Others	3=others	2=FC/APC
				3=SC/UPC
				4=SC/APC
				5=LC

FAQ

1. Are you the real factory?

Yes we are the real factory with 16 years history

2. What is your fiber brand?

Fiber brands including YOFC FiberHome

3. What is your main products?

Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords

4. Product quality guarantee period?

20 years Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

6. What is your delivery time?

Within 48 hours for normal kinds of fiber optic products

7. MOQ: what is your minimum quantity?

MOQ for Fiber Optic Cable Patch Panel 10 set

There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds

8. Do you have distributor in other country or domestic?

Until now we sell our products to customers directly And factory price could be offered

9. Payment

For large orders: T/T

For small orders: T/T and Paypal are acceptable

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL) by air or by courier services,any of which is optional
