Product Details:
|
| Material: | Metal | Mode Type: | Single Mode / Multi Mode |
|---|---|---|---|
| Connector Type: | 3.0mm | Insertion Loss: | <0.3dB |
| Certificate: | CE , ISO , RoHS | Return Loss: | PC≥40 UPC≥50 APC≥60 DB |
| High Light: | fiber optic cable connectors,fiber optic fast connector |
||
Performance of optical fiber connectors can be quantified by insertion loss and return loss. Measurements of these parameters are now defined in IEC standard 61753-1. The standard gives five grades for insertion loss from A (best) to D (worst), and M for multimode. The other parameter is return loss, with grades from 1 (best) to 5 (worst).
A variety of optical fiber connectors are available, but SC and LC connectors are the most common types of connectors on the market.[2] Typical connectors are rated for 500–1,000 mating cycles.[3] The main differences among types of connectors are dimensions and methods of mechanical coupling. Generally, organizations will standardize on one kind of connector, depending on what equipment they commonly use.
In many data center applications, small (e.g., LC) and multi-fiber (e.g., MTP/MPO) connectors have replaced larger, older styles (e.g., SC), allowing more fiber ports per unit of rack space.
Outside plant applications may require connectors be located underground, or on outdoor walls or utility poles. In such settings, protective enclosures are often used, and fall into two broad categories: hermetic (sealed) and free-breathing. Hermetic cases prevent entry of moisture and air but, lacking ventilation, can become hot if exposed to sunlight or other sources of heat. Free-breathing enclosures, on the other hand, allow ventilation, but can also admit moisture, insects and airborne contaminants. Selection of the correct housing depends on the cable and connector type, the location, and environmental factors.

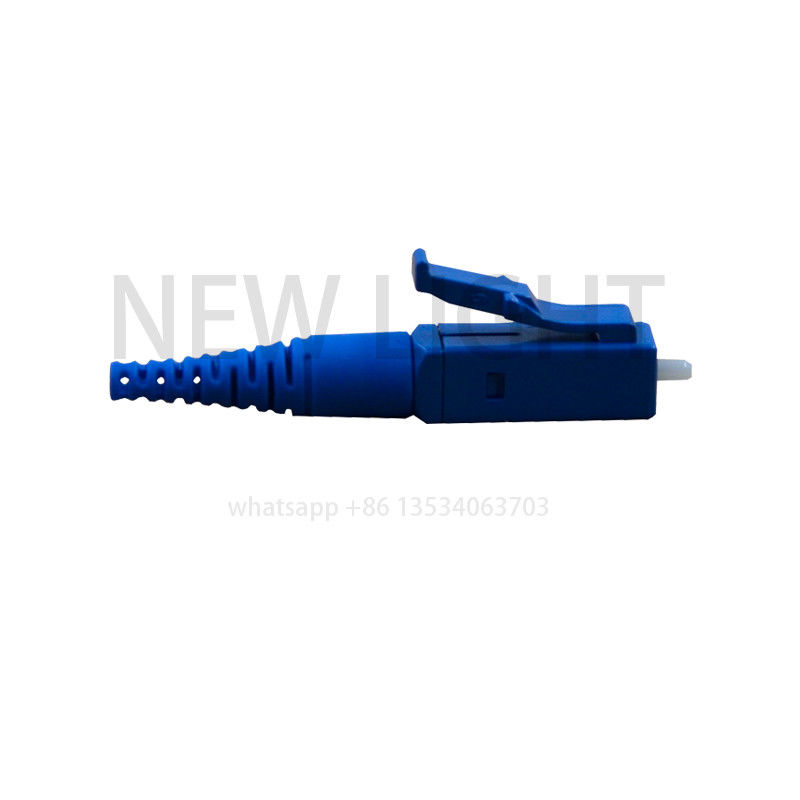

0.9 / 2.0 / 3.0mm SC / FC / LC / ST / MPO / E2000 Optical fiber connectors
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Parameter
| products name | OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord |
| mode type | single mode / multi mode |
| cable diameter | 3.0 mm |
| insertion loss | ≤ 0.3dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥60 dB |
| wave length | 1310/1550 |
| ferrule material | Ceramic |
| operater temperature | -40~ +85℃ |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
more connector for reference
| Connector type | LC / SC / FC / FC / E2000 / MPO /MTRJ /SMA |
| Mode type | single mode or multimode |
| Cable type | 0.9 / 2.0 / 3.0 mm |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
