SC APC SM Mini FTTH Passive Optical Node with No Power Consumption High Sensitivity Optical Receiver and Plug and Play Design

Brand Name:	New Light
Model Number:	SC
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Product Name:

SC APC SM Fiber Optical Passive Receiver Green Color Mini FTTH Passive Optical Node

Connector Type:

SC APC

Input Power:

-10~0 DBm

Output Port:

CATV Wavelength:

1100~1600nm

Power Range:

+2~ -14dBm

Return Loss:

≥55dB

Fiber Link:

SC/APC FC/APC

Bandwidth:

40~862MHz

Working Temp:

-25℃~+45℃

Supply Ability:

1000000

Highlight:

SC APC SM Fiber Optical Passive Receiver

FTTH fiber optic termination tools

Product Description

SC APC SM Mini FTTH Passive Optical Node

Product Overview

SC/APC to RF CATV converter for digital television and fiber to the home applications. This passive optical receiver utilizes high-sensitivity optical receiving technology without requiring external power supply, ensuring zero power consumption.

Key Features

Plug and play operation with no external power supply required
Stable high-definition digital cable TV programs without packet loss
High standard, high stability, and high-reliability fiber optic components
High-sensitivity optical receiver with 1310-490-1550 filter chip for optimal signal performance
Integrated wavelength division multiplexer and WDM single-core for triple play applications
Zero power consumption with continuous working time exceeding 80,000 hours

Technical Specifications

Compatibility	SC/APC to RF CATV Fiber Optic Receiver Mini FTTH Passive Optical Node
Product Name	Passive Optical Node
Wavelength	1100~1600nm
Input Power	-10~0 dBm
Output Level	64dBuV
RF Output Loss	≥ 14dB@550~862MHz
Bandwidth	40~862MHz
Working Temperature	-25℃~+45℃
Output Port	1
Dimensions	652210mm

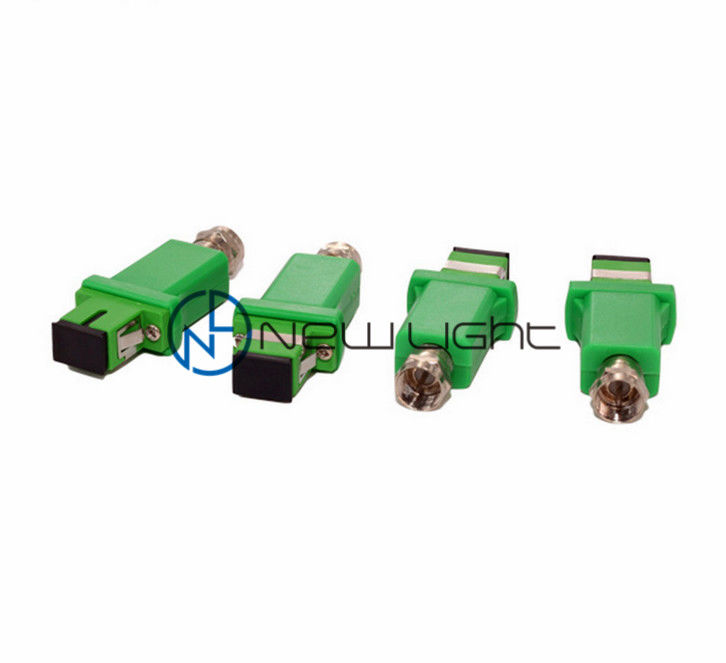

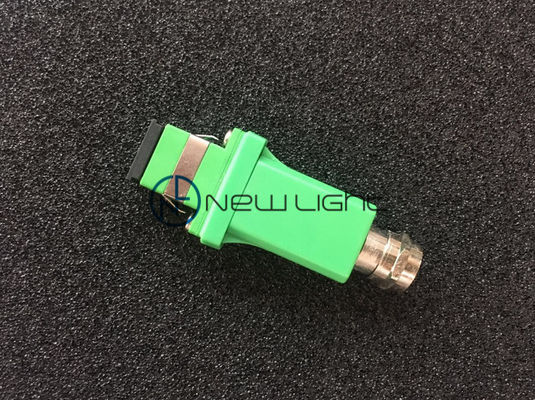

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

What is the price?

Pricing varies by quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB price?

Yes, but due to product size and weight, air shipping is typically recommended. EXW or CFR pricing is often more suitable.

How is your quality?

We adhere to IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories in China. Standard patch cord orders of 5,000 pieces typically ship in 2-3 working days.

What is your warranty?

2-year warranty for patch cords covering non-artificial damage. Repair services available for artificial damage with customer covering freight.

What is your packing?

International export packaging with custom logo printing available upon request.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer covering freight. Sample charges apply for high-value products.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing, lead time, and proforma invoice. Production begins after payment confirmation.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packing Reference
