24 Fiber OM3-150/300 MPO MTP Cable with 40G/100G Transmission and Male Or Female Connector Options

Brand Name:	New Light
Model Number:	MPO- LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Product Name:

24 Fiber Black Boot LC To MTP Breakout Cable Male Or Female MPO MTP Fiber Connector

Connector Type:

MPO- 24*LC

Core Type:

OM3-150/300

Transmission:

40G/100G

Insertion Loss:

Insertion Loss ≤ 0.5dB

Cable Length:

Can Be Customized

Fiber Type:

850/1300nm

Fiber Count:

24 FIBER

Jacket:

Cable Diameter:

3.0mm

Cable Color:

MPO Type:

Female Type Or Male

Supply Ability:

500 pcs per day

Highlight:

1300nm MPO MTP Cable

850nm 24 Fiber mtp breakout cable

0.5dB LC To mtp patch cord

Product Description

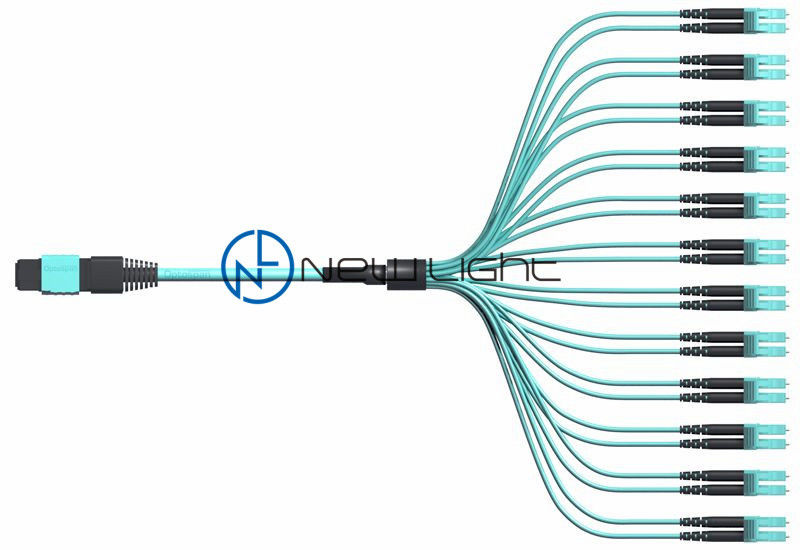

1300nm 24 Fiber MPO MTP Cable Male Or Female Insertion Loss 0.5dB

24 Fiber Black Boot LC To MTP Breakout Cable Male Or Female MPO MTP Fiber Connector

Fiber Optic MPO MTP Cable Description

Plenum cable is jacketed with a fire-retardant plastic jacket of either a low-smoke polyvinyl chloride (PVC) or a fluorinated ethylene polymer (FEP).

This particular 40/100 gigabit Multimode fiber optic cable offers MTP connectors, is duplex, and has a 50/125 micron core.

MPO to LC Breakout cables are the optimal choice for high-density fiber networks, specifically designed for fast ethernet, fiber channel, data center, and gigabit ethernet applications.

It features an MPO female connector on one side and an LC duplex connector on the other side. While MPO-LC is standard, configurations can also include MPO-ST/FC/LC/SC.

When connecting an MTP/MPO-LC patch cord (through an MTP coupler) to another MTP patch cord, one of the two MTP/MPO connectors must be male (equipped with pins).

MPO fiber optic patch cords contain multiple fiberglass connections (4, 8, 12 fibers, etc.) and are available in single-mode and multimode variants with PC or APC polishing, and male or female connector types.

Fiber Optic MPO MTP Cable Features

High fiber density (24 fibers for Multimode)
Low insertion loss and reflection loss
Excellent durability
Superior exchangeability
High-temperature stability

Fiber Optic MPO MTP Cable Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication systems
Telecommunication networks

Fiber Optic MPO MTP Cable Parameters

Parameter	Specification
Product Name	24 Fiber Black Boot LC To MTP Breakout Cable Male Or Female MPO MTP Fiber Connector
Mode Type	MM
Cable Count	24 core (can be 4/8/12/16/24/32 core)
Core Type	50/125um OM3
Cable Color	Aqua (customizable)
Cable Diameter	3.0mm (customizable)
Patch Cord Length	Customizable
Outer Jacket Material	LSZH
Insertion Loss	≤ 0.5dB
Return Loss	≥25 dB
Wavelength	850/1300nm
Connector Type	Female
Connector Color	Aqua (Aqua/Magenta/Beige available)
Ferrule Material	Plastic
Operating Temperature	-40°C to +85°C
Cable Print	Standard print (customizable)
OEM/ODM	Available
Warranty	3 years after delivery
Delivery Time	2-15 working days (depending on quantity)

How to Order

Connector type: SC/FC/LC/ST/MPO/MTP/MU/MTRJ/E2000/SMA
Mode type: Single mode (UPC and APC) / Multi mode (PC)
Cable diameter: 0.9/2.0/3.0mm (custom diameters available)
Coating material: PVC/LSZH
Fiber count: Simplex/duplex/4/6/8/12/24/48/96 core
Cable type: G652D/G657A1/G657A2/G655/OM1/OM2/OM3-150/OM3-300/OM4/OM5
Patch cord length: Customizable
MPO/MTP connector: Specify method (A/B/C type), male/female, fiber count (4/8/12/16/24/32 fiber)

Frequently Asked Questions

1. Q: Are you a manufacturer?

A: Yes, we are a manufacturer in Shenzhen, China.

2. Q: What's your MOQ?

A: MOQ can be 1 pc, but we don't recommend ordering just 1 pc as the cost and price will be higher than your budget.

3. Q: What's the price?

A: Price depends on quantity. We'll offer our best price after receiving your quantity requirements. Larger quantities receive more competitive pricing.

4. Q: Can you quote FOB price?

A: Yes, but most shipments are by air (DHL, TNT, UPS, FEDEX) due to small size/weight. For large quantities, we can provide sea freight options. EXW or CFR pricing is typically better.

5. Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops with imported equipment. All products undergo 100% testing before delivery.

6. Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pcs. We maintain stock of regular products and can accommodate urgent orders.

7. Q: What's your warranty?

A: Patch cords have a 2-year warranty for non-artificial damage. We repair artificial damage for free (customer pays freight).

8. Q: What's your packing?

A: We use international export packaging and can print your logo. Sample packing photos are available for reference.

9. Q: Can you do OEM/ODM?

A: Yes, we're a manufacturer and accept all OEM/ODM requests. We can sign Confidentiality Agreements.

10. Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we provide free samples (customer pays freight). For high-value products, sample charges apply but are refundable with orders.

11. Q: How can I order?

Send specifications and quantity via email/inquiry
We'll provide best price and lead time
Upon acceptance, we'll issue Proforma Invoice
Production begins after payment
We confirm shipping details before delivery
Tracking number provided after shipment

12. Q: What's your payment term?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% before delivery.
