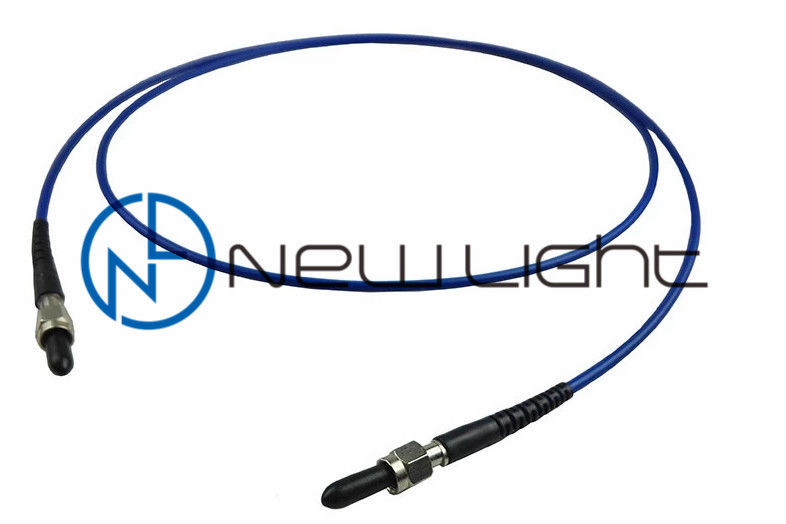

SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber

SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber
SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber
SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber

Large Image :  SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SMA
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-10 working days after received payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 12000 pcs /day

SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber

Description
Product Name: SMA 905 906 Armored Fiber Single Mode Metal Connector Patch Cord Optical Fiber Connector: SMA
Fiber Type: Simplex Cable Type: Armored Cable
Length: 1M Insertion Loss: ≤0.3dB
Wavelength: 1310/1550nm Jacket Material: PVC
Quality Control: 100% Test Before Shipping Return Loss: ≥55dB
Real Factory: Yes Application: FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
High Light:

SMA 905 armored fiber optic patch cable

,

906 fiber optic cable patch cord

Optical Fiber Patch Cord Product Name:



SMA 905 906 Armored fiber single mode metal connector patch cord optical fiber



Optical Fiber Patch Cord Description :



It is a kind of special optical fiber jumper. It uses SMA connector. The ferrule of this connector is made of ceramic or metal. The connector ferrule made of metal is more common and can be divided into SMA905 and SMA906.



There are three types of connectors for SMA fiber jumpers with metal ferrules (with grooves and without grooves), with zirconia ferrules and with extended tailstock.



The fiber installation of SMA fiber jumper adopts seamless vacuum thermosetting method, and is equipped with flame-retardant PVC outside the sleeve to achieve functions such as moisture and fire prevention, and its end face is processed by ultra-precision, so it has high damage threshold and ferrule Various advantages such as high concentricity.



The connector uses a 1.25mm diameter sleeve and self-retaining mechanism, which has the advantage of enabling high-density installation.



Simplex will have two connectors totally. Regarding the connector structure, It has FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4, and so on.



The fiber count of patch cord also can be simplex patch cord, duplex patch cord, 4 core patch cord, 6 core patch cord, 8 core patch cord, 12 core patch cord, 24 core patch cord, 48 core patch cord, 96 core patch cord, and so on.



Optical Fiber Patch Cord  Typical Usages


FTTA,FTTH Application
3G, 4G, 5G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE



Optical Fiber Patch Cord Technical Parameter



products name   3M MU Fiber Optic Connector Single-Core Type Fiber Cable Low Insertion Loss Patch Cord
mode type

single-mode

cable count  simplex
core type G657A1
cable color  yellow
patch cord length  3M ( can be customized according to your request )
insertion loss ≤ 0.3dB
return loss UPC≥50 dB
wavelength 1310/1550nm
core type 9/125um
ferrule material Ceramic
operating temperature -40~ +85℃
cable print standard print ( can be customized)
OEM/ODM acceptable
warranty 3 years after delivery
Delivery time 5-15 working days ( according to your quantity )




Optical Fiber Patch Cord Connector type:

SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber 0





How to order Optical fiber patch cord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )



FQA :



1. Q: Are you a manufacturer?

A: yes, we are a manufacturer in Shenzhen, China



2. Q: What's your MOQ?

A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher so that the price will be higher than your budget.



3. Q: What's the price?

A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.



4. Q: Can you quote FOB price?

A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with product price for your reference.



We have a very competitive price shipping forwarder. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.



EXW price or CFR price will be better . You can contact us for more solution if you need.



5. Q: How is your quality?

A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.



All the products are 100% test before delivery.



6. Q: What's your lead time?

A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.

For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with an urgent order for you. For more information, you can feel free to contact us.



7. Q: What's your warranty?

A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.



8. Q: What's your packing?

A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing



9. Q: Can you do OEM/ODM?

A: yes, we can. We are a manufacturer, all products accept OEM /ODM. we can sign the Confidentiality Agreement.



10. Q: Can I have a sample?

A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.

For big value products, we can't offer it for free, sample charge and freight repaid first. after you placed an order, the sample charge will be returned.



11. Q: How can I order?

A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.

2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.

3. When you accept the quotation, we will make a Proforma Invoice with our bank account.

4. We will arrange the production for you after we received the payment.

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.

6. We will try our best to meet your requirements for long-term cooperation.



12. Q: What your payment term?

A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.



Packing for reference :


SMA 905 906 Armored Single Mode Metal Connector Patch Cord Optical Fiber 1
