SC UPC Low Reflection Fiber Optic Terminator for High Power Transmission and 1260-1640nm Wavelength Applications

Brand Name:	New Light
Model Number:	FC
MOQ:	100
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Product Name:

SC UPC Low Reflection Fiber Optical Terminators For DWDM And EDFA

Connector Type:

Ferrule Polishing:

UPC

CATV Wavelength:

1260-1640nm

Working Temperature:

-40~+75 Degree

Application:

EDFA, DWDM, OADM, CATV

Fiber Link:

SC/APC

Max Power:

500MW

Supply Ability:

100,000 pcs / month

Highlight:

DWDM fiber optic termination tools

EDFA fiber termination tools

Product Description

SC UPC Low Reflection DWDM and EDFA Fiber Optical Terminators

These high-performance fiber optic terminators are designed for DWDM and EDFA applications, featuring low reflection characteristics and high power handling capabilities.

Product Overview

SC UPC Low Reflection Fiber Optical Terminators are engineered to withstand high power transmission over extended periods. The integrated high attenuation fiber effectively absorbs reflections within a 2cm distance, ensuring stable optical transmission performance.

These terminators utilize zirconia ferrules to minimize back reflection in fiber optic systems, reducing signal degradation in both digital and analog applications. They are ideal for terminating unused fiber connector ports in patch panels with couplers.

Key Features

High attenuation fiber construction
Long-term high power transmission capability
Suitable for 1260-1640nm bandwidth
Compatible with multiple connector types
Special craftsmanship ensures reflection requirements
Maximum power: 500mW
Operating temperature: -40°C to +75°C

Applications

EDFA, DWDM, OADM, CATV systems
Optical transmission networks
Fiber to the home (FTTH)
Telecommunications networks

Technical Specifications

Item	UPC	APC
Return Loss	≥50 dB	≥60 dB
Maximum Power	500mW
Repeatability	0.1dB Max.
Temperature Range	-40°C to +75°C
Operation Times	1000

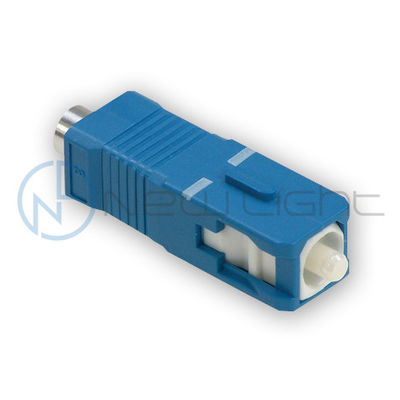

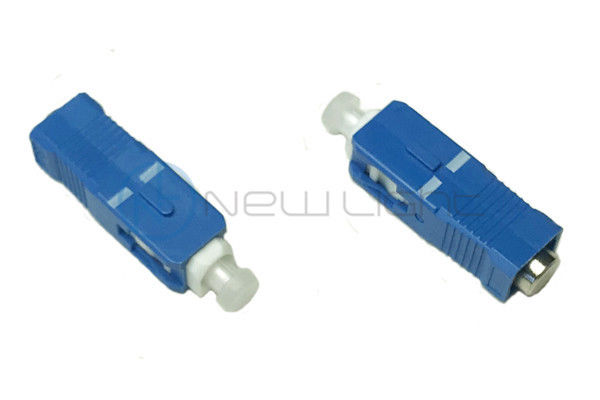

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit orders incur higher costs.

What's the price?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements and order volume.

Can you quote FOB price?

While we can provide FOB quotes, most shipments are typically sent via air carriers (DHL, TNT, UPS, FedEx). For large volume orders, we can arrange sea freight. EXW or CFR pricing is often more suitable.

How is your quality?

Our production follows IEC and European standards in near dust-free environments using imported equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, we can typically fulfill 5,000 pieces within 2-3 working days, with regular products available from stock.

What's your warranty?

Patch cords carry a 2-year warranty covering non-artificial damage. For artificial damage, we provide free repairs with customer responsible for shipping costs.

What's your packing?

We use international export packaging and can customize with your logo upon request.

Can you do OEM/ODM?

Yes, we support both OEM and ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with customer covering shipping. For high-value products, sample charges apply but are refundable with order placement.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

What's your payment term?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, 50% deposit with balance due before shipment.
