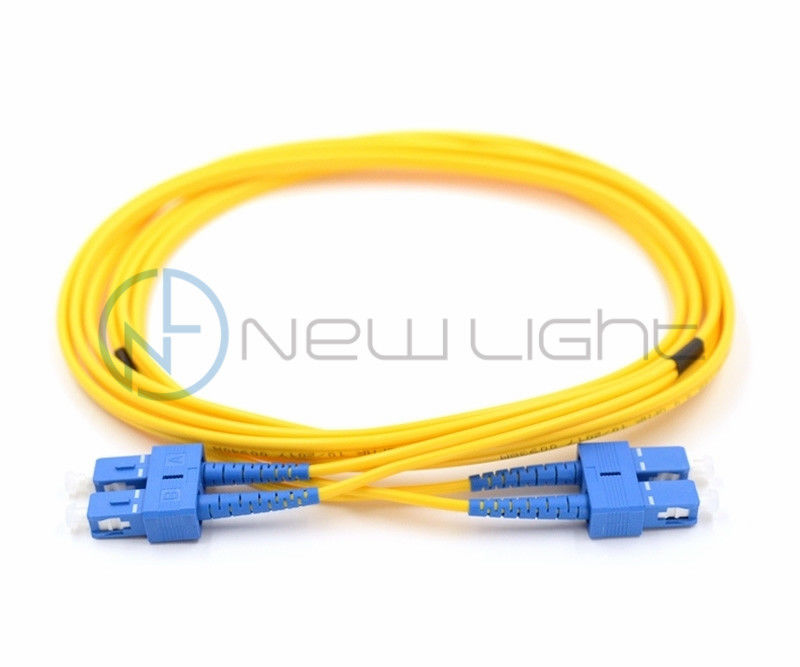

|Product Name:||40G Long Distance Transfer Internet Catv Duplex Fiber Optic Patch Cord SC SC UPC||Length:||20 Meters|
|Cable Color:||Yellow||Connector:||SC -SC|
|Fiber Count:||Duplex||Cable Diameter:||3.0mm/2.0|
|Fiber Type:||9/125um||Insertion Loss:||≤0.25dB|
|Wavelength:||1310nm / 1550nm||Quality Control:||100% Test Before Shipping|
|Real Factory:||Yes||Application:||FTTH/Test Equipments/TV/LAN/Telecommunication Equipments|
Duplex fc apc patch cord,
40G patch cord apc upc
Optical Fiber Patch Cord Product Name:
40G long distance transfer Internet catv Duplex Fiber Optic Patch Cord SC SC UPC
Optical Fiber Patch Cord Description :
Fiber optic jumper products are widely used in: communication equipment room, fiber to the home, local area network, fiber optic sensor, fiber optic communication system, fiber optic connection transmission equipment, defense combat readiness, etc.
Suitable for cable TV network, telecommunication network, computer optical fiber network and optical test equipment. The breakdown is mainly used in several aspects.
The transmit and receive wavelengths of the optical modules at both ends of the fiber jumper must be the same, that is to say, the two ends of the optical fiber must be the same wavelength optical module.
The simple way to distinguish is that the color of the optical module must be the same. In general, short-wave optical modules use multi-mode optical fibers (orange optical fibers), and long-wave optical modules use single-mode optical fibers (yellow optical fibers) to ensure the accuracy of data transmission.
Simplex will have two connectors totally, duplex will have four connectors, each side will have two connectors. Regarding the connector structure, It has FC, SC, ST, LC, MTRJ, MPO, MU, SMA 905/906, E2000, DIN4, D4, and so on.
The fiber count also can be simplex patch cord, duplex patch cord, 4 core patch cord, 6 core patch cord, 8 core patch cord, 12 core patch cord, 24 core patch cord, 48 core patch cord, 96 core patch cord, and so on.
Optical Fiber Patch Cord Typical Usages
3G, 4G, 5G Base Station
Horizontal and Vertical Cabling
Optical Fiber Patch Cord Technical Parameter
|products name||40G long distance transfer Internet catv Duplex Fiber Optic Patch Cord SC SC UPC|
|patch cord length||( can be customized according to your request )|
|insertion loss||≤ 0.25dB|
|return loss||UPC≥50 dB APC≥60dB|
|operating temperature||-40~ +85℃|
|cable print||standard print ( can be customized)|
|warranty||3 years after delivery|
|Delivery time||5-15 working days ( according to your quantity )
Optical Fiber Patch Cord Connector type:
Hot sale products
How to order Optical fiber patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with product price for your reference.
We have a very competitive price shipping forwarder. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.
For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with an urgent order for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /ODM. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.
For big value products, we can't offer it for free, sample charge and freight repaid first. after you placed an order, the sample charge will be returned.
11. Q: How can I order?
A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.
2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.
3. When you accept the quotation, we will make a Proforma Invoice with our bank account.
4. We will arrange the production for you after we received the payment.
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.
6. We will try our best to meet your requirements for long-term cooperation.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
Packing for reference :
