network Right Angle 2.0mm 40db Fiber Optic Connectors

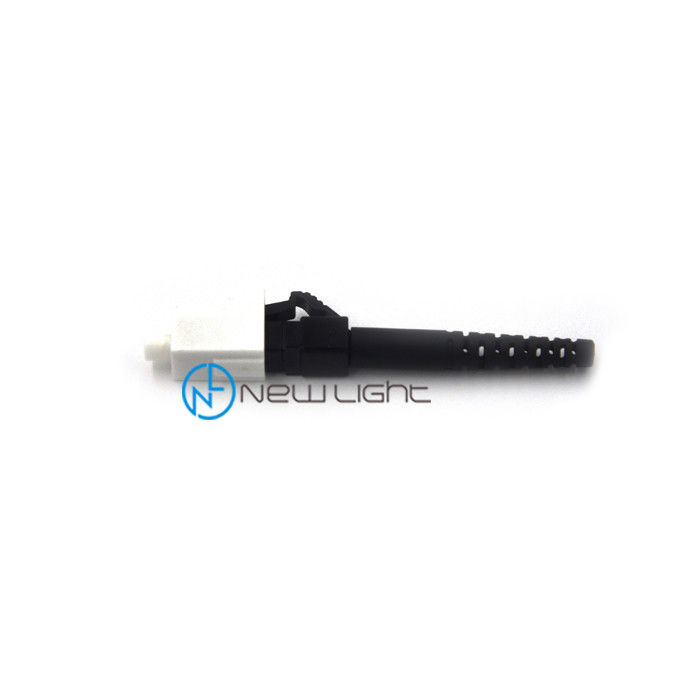

Multi Mode LC SX 0.9mm 2.0mm 3.0mm right angle fiber optic connector

Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

LC is the short form of Lucent Connector, LC fiber patch cord connector is a push and latch structure,
with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber
optic patch cord which reduce the space and it is widely used for densely installation.

Optical fiber optic lc connector  is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Fiber optic adapters are flange type in plastic housing; Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.

APC Connector is a type of fiber connector that minimizes backreflection due to a 5° to 15° angle-polish applied to end faces. Like illustrated in the following picture.

Angle-polished connectors should only be mated to other angle-polished connectors. Mating to a non-angle polished connector causes very high insertion loss. Generally angle-polished connectors have higher insertion loss than good quality straight physical contact ones.
“Ultra” quality connectors may achieve comparable back reflection to an angled connector when connected, but an angled connection maintains low back reflection even when the output end of the fiber is disconnected .

Angled-polished connections are distinguished visibly by the use of a green strain relief boot, or a green connector body. The parts are typically identified by adding “/APC” to the name.
For example, an angled FC connector may be designated FC/APC, an angled LC connector may be designated LC/APC, etc.

The value of return loss for mated APC connectors in the field will typically be greater than -65 dB. For a UPC connection, it is normally -55 dB.
When connectors are unmated—such as unused ports in an FTTP distribution frame—the return loss for APC connectors is -65 dB or greater, compared to UPC connectors that will be in the neighborhood of 14 dB.

Features:

► Complies with IEC 61754-20 and TIA 604-2

► Low insertion loss and back reflection

► Bayonet shaped housing for easy termination

► Nickel plated brass body

► Zirconia ceramic ferrule with high end PC finish

► RoHS, REACH SvHC compliant

Applications:

► Local area networks

► Data processing networks

► Distribution application

► Premises distribution

► Test and laboratory equipmen

Ease of use

Features:

---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule



Parameter

more connector for reference

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
