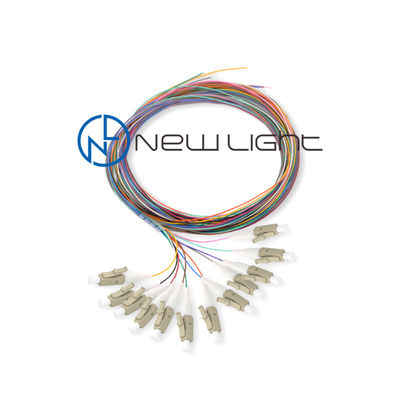

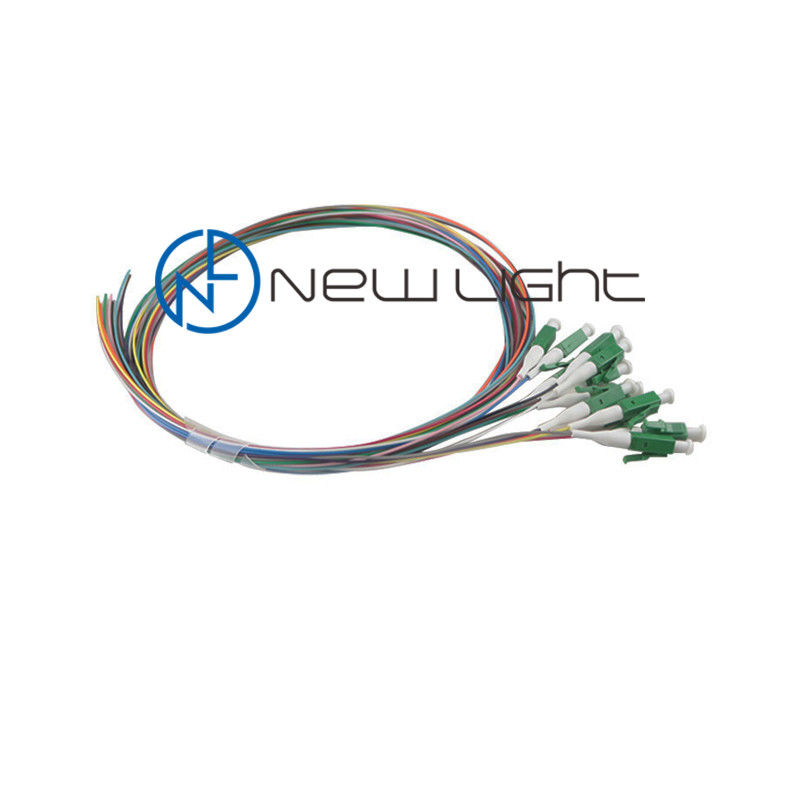

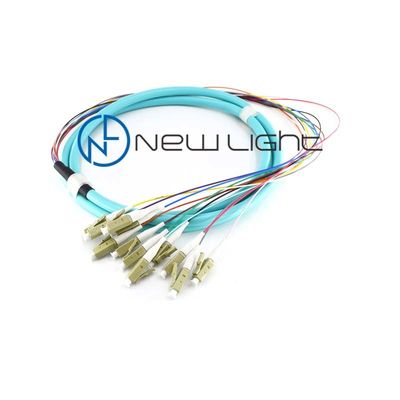

Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord

Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord
Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord
Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord

Large Image :  Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord

Product Details:
Place of Origin: ShenZhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC/ PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 12000 pcs / day

Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord

Description
Products Name: SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable Connector Type: SC( Can Be ST , FC , LC , MPO , MTRJ , MU )
Mode Type: Multi Mode Cable Color: Purple (according To Your Request)
Cable Diameter: 0.9mm Cable Length: 1 M (can Be Customized )
Insertion Loss: ≤ 0.3 DB Return Loss: ≥ 40dB
Delivery Time: 2-7 Working Days Payment Term: 30% Deposit In Advance , 70% Balance Paid Before Delivery
High Light:

40dB Fiber Optic Patch Cord

,

1.5M Fiber Optic Patch Cord

,

40dB ftth fiber optic cable

1.5M tight tube single mode / multimode fiber optic patch cord color code



Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability



Fiber class: singlemode 9/125µ

Polish type: UPC/APC

Cable color: as photos

Cable jacket: PVC LSZH(for your choose), cable diameter 0.9mm

Package: Seperate polybag with sticker and test reports

The cable Length and color can be customized

FEATURES


1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard





Applications:


1.Telecommunication
2.Computer networks
3.CATV networks
4.Active device termination
5.Instrumentation





Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length





Product Name OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
Modle Number Pigtail SC OM4
Diameter 0.9/2.0/3.0
Connector SC/LC/FC/ST/MPO
Cable length 1.2.3...Customized
Polishing yes,plished
Material LSZH/PVC
Form of sale OEM/ODM
Use Connect the optical transmitter, receiver, and the terminal box.
Custom Design Welcome
Sample Lead Time 1-3days
Certificate CE,ROHS
Advantage Low IL,High RL



Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC/UPC APC PC PC/UPC PC PC/UPC PC PC APC
Insertion loss(typical) dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
Return loss dB ≥ 50 ≥ 60 ≥ 30 ≥ 50 ≥ 30 ≥ 50 ≥ 30 ≥ 55 ≥ 75
Operating wavelength nm 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550
Exchangeability dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Vibration dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Operating temperature   -40~75 -40~75 -40~75 -40~75
Storage temperature   -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0





Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord 0





Application



Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord 1

Low Insertion Loss 1.5M 40dB Fiber Optic Patch Cord 2







1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.


2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km

.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.


5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.


6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.





Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
