Product Details:
|
| Products Name: | SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable | Connector Type: | SC( Can Be ST , FC , LC , MPO , MTRJ , MU ) |
|---|---|---|---|
| Mode Type: | Multi Mode | Cable Color: | Purple (according To Your Request) |
| Cable Diameter: | 0.9mm | Cable Length: | 1 M (can Be Customized ) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | ≥ 40dB |
| Delivery Time: | 2-7 Working Days | Payment Term: | 30% Deposit In Advance , 70% Balance Paid Before Delivery |
| High Light: | 0.9mm Fiber Optic Pigtail,1.5m Fiber Optic Pigtail,0.9mm multimode fiber pigtail |
||

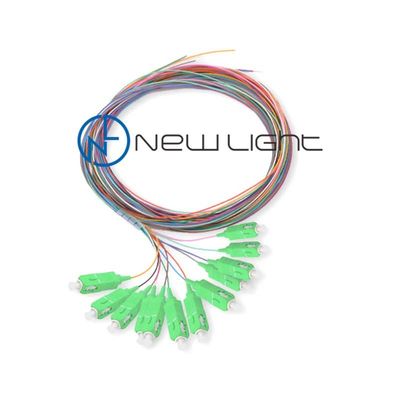

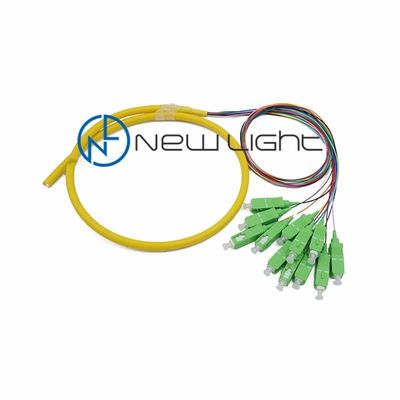

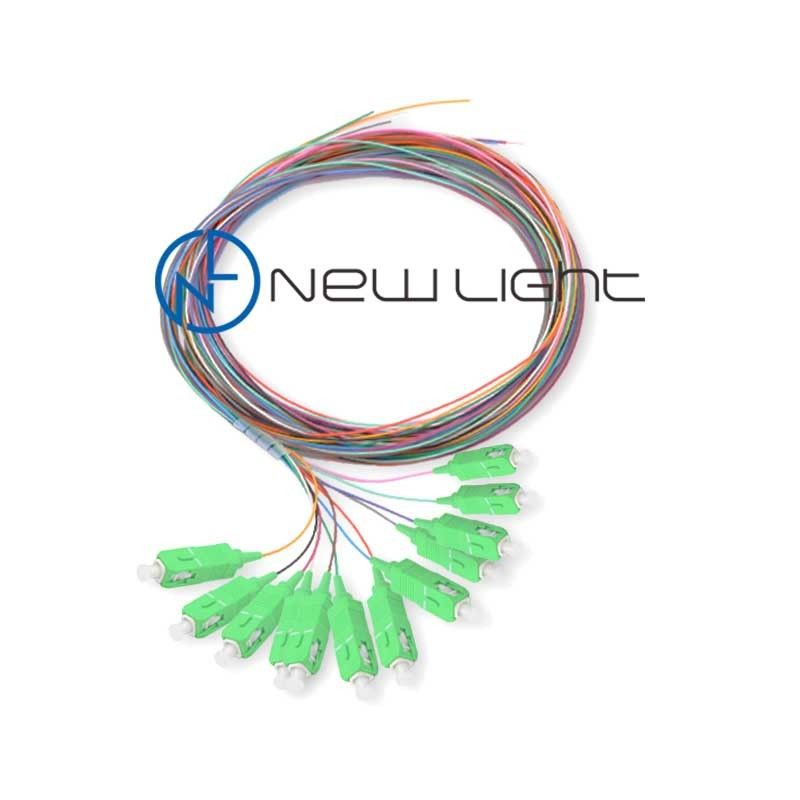

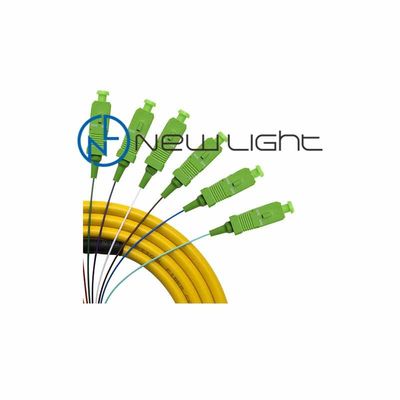

1.5m 0.9mm multimode fiber pigtai 12 color sc fiber optic pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
12-core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black,Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules,it has good conformity and low Insertion Loss
Features:
– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers’ demands.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
Applications:
1.Telecommunication
2.Computer networks
3.CATV networks
4.Active device termination
5.Instrumentation
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
| Product Name | OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm |
| Modle Number | Pigtail SC OM4 |
| Diameter | 0.9/2.0/3.0 |
| Connector | SC/LC/FC/ST/MPO |
| Cable length | 1.2.3...Customized |
| Polishing | yes,plished |
| Material | LSZH/PVC |
| Form of sale | OEM/ODM |
| Use | Connect the optical transmitter, receiver, and the terminal box. |
| Custom Design | Welcome |
| Sample Lead Time | 1-3days |
| Certificate | CE,ROHS |
| Advantage | Low IL,High RL |
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC/UPC | APC | PC | PC/UPC | PC | PC/UPC | PC | PC | APC | |||||
| Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | |||
| Return loss | dB | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 55 | ≥ 75 | |||
| Operating wavelength | nm | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | |||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Operating temperature | -40~75 | -40~75 | -40~75 | -40~75 | |||||||||
| Storage temperature | -45~85 | -45~85 | -45~85 | -45~85 | |||||||||
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0 | ||||||||
Application
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
