Product Details:
|

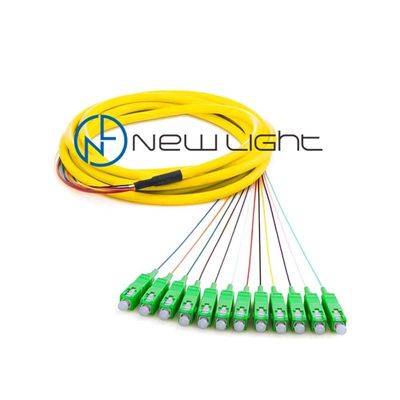

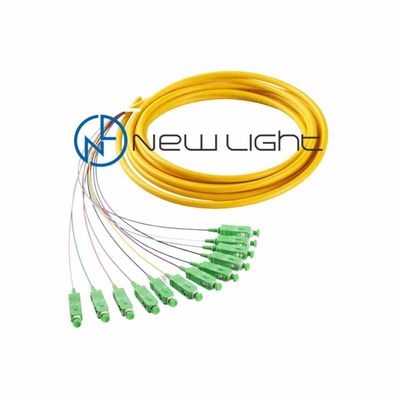

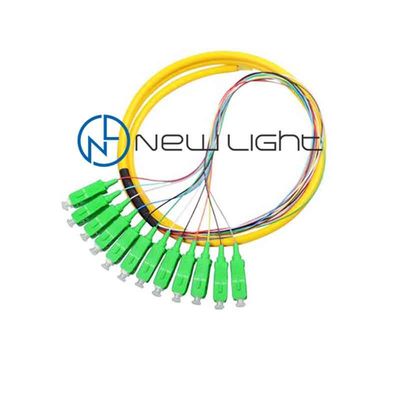

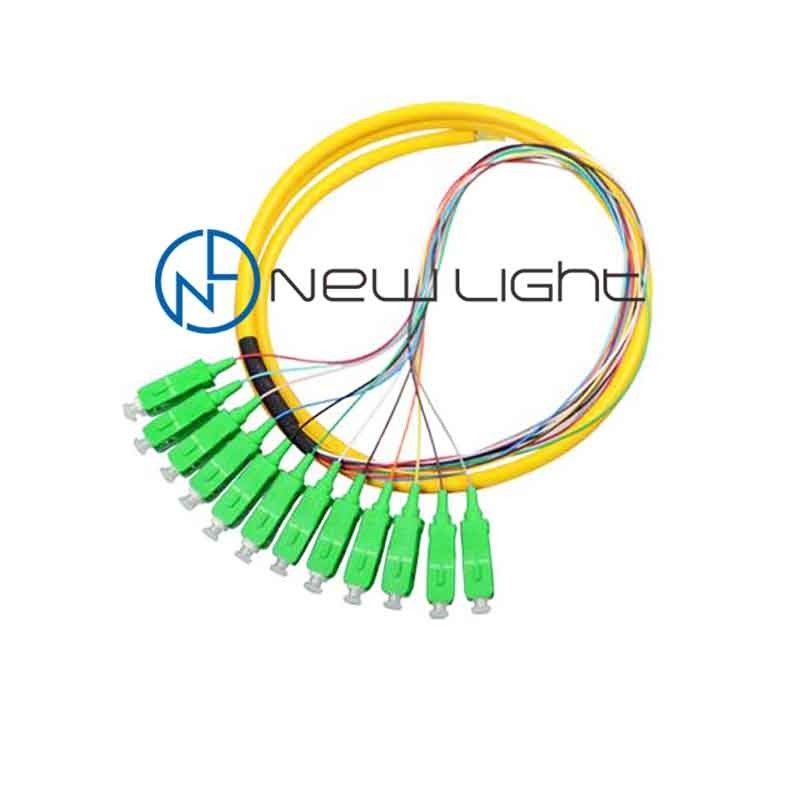

| Products Name: | SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable | Connector Type: | SC( Can Be ST , FC , LC , MPO , MTRJ , MU ) |
|---|---|---|---|
| Mode Type: | Multi Mode | Cable Color: | Purple (according To Your Request) |
| Cable Diameter: | 0.9mm | Cable Length: | 1 M (can Be Customized ) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | ≥ 40dB |
| Delivery Time: | 2-7 Working Days | Payment Term: | 30% Deposit In Advance , 70% Balance Paid Before Delivery |
| High Light: | OS2 Yellow Fiber Optic Cable,7ft Yellow Fiber Optic Cable,OS2 fiber optic pigtail cables |
||
2m (7ft) LC UPC Simplex OS2 Single Mode PVC (OFNR) yellow fiber optic cable
Fiber optic cabling and hardware products including single mode and multimode fiber patch cables of 62.5/125, 50/125, and 9/125, and fiber distribution products used in high tech networking.
Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode, but it also costs more. Single-mode fiber has a much smaller core than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
Features:
Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitting equipment
Defense combat readiness
FEATURES
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
| Product Name | OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm |
| Modle Number | Pigtail SC OM4 |
| Diameter | 0.9/2.0/3.0 |
| Connector | SC/LC/FC/ST/MPO |
| Cable length | 1.2.3...Customized |
| Polishing | yes,plished |
| Material | LSZH/PVC |
| Form of sale | OEM/ODM |
| Use | Connect the optical transmitter, receiver, and the terminal box. |
| Custom Design | Welcome |
| Sample Lead Time | 1-3days |
| Certificate | CE,ROHS |
| Advantage | Low IL,High RL |
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC/UPC | APC | PC | PC/UPC | PC | PC/UPC | PC | PC | APC | |||||
| Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | |||
| Return loss | dB | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 55 | ≥ 75 | |||
| Operating wavelength | nm | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | |||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Operating temperature | -40~75 | -40~75 | -40~75 | -40~75 | |||||||||
| Storage temperature | -45~85 | -45~85 | -45~85 | -45~85 | |||||||||
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0 | ||||||||
Application
A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
