3m 12 color PVC LSZH Om3 Sc Fiber Optic Pigtail

All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket

Contact Us

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

wechat

86 13534063703

Contact Now

Name

3m 12 color PVC LSZH Om3 Sc Fiber Optic Pigtail

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Multi Mode

Cable Color:

Purple (according To Your Request)

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

Sc Fiber Optic Pigtail

,

LSZH Fiber Optic Pigtail

,

LSZH fiber optic jumpers

Product Description

3m 12color fiber optic jumpers PVC LSZH om3 sc fiber optic pigtail

Pigtails only has one end connector, and the other end is a broken end of an optical fiber core. It is connected to other optical fiber cores by fusion splicing. It often appears in the optical fiber terminal box and is used to connect the optical cable to the optical fiber transceiver Device (coupler, jumper, etc. are also used in between)

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973

Features:
1.Low insertion loss
2.high return loss
3.IEC, GR-362 core standard ,Rosh compliant
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules

Applications:

Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitting equipment
Defense combat readiness

FEATURES

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length

Product Name	OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
Modle Number	Pigtail SC OM4
Diameter	0.9/2.0/3.0
Connector	SC/LC/FC/ST/MPO
Cable length	1.2.3...Customized
Polishing	yes,plished
Material	LSZH/PVC
Form of sale	OEM/ODM
Use	Connect the optical transmitter, receiver, and the terminal box.
Custom Design	Welcome
Sample Lead Time	1-3days
Certificate	CE,ROHS
Advantage	Low IL,High RL

Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC/UPC

APC

PC

PC/UPC

PC

PC/UPC

PC

PC

APC

Insertion loss(typical)

dB

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

Return loss

dB

≥ 50

≥ 60

≥ 30

≥ 50

≥ 30

≥ 50

≥ 30

≥ 55

≥ 75

Operating wavelength

nm

1310, 1550

1300(OM1)850

1310, 1550

1300(OM1)850

1310, 1550

1300(OM1)850

1310, 1550

Exchangeability

dB

≤ 0.2

≤ 0.2

≤ 0.2

≤ 0.2

Vibration

dB

≤ 0.2

≤ 0.2

≤ 0.2

≤ 0.2

Operating temperature

-40~75

-40~75

-40~75

-40~75

Storage temperature

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ 3.0, φ 2.0, φ 0.9

φ 3.0, φ 2.0, φ 0.9

φ 3.0, φ 2.0, φ 0.9

φ 3.0, φ 2.0

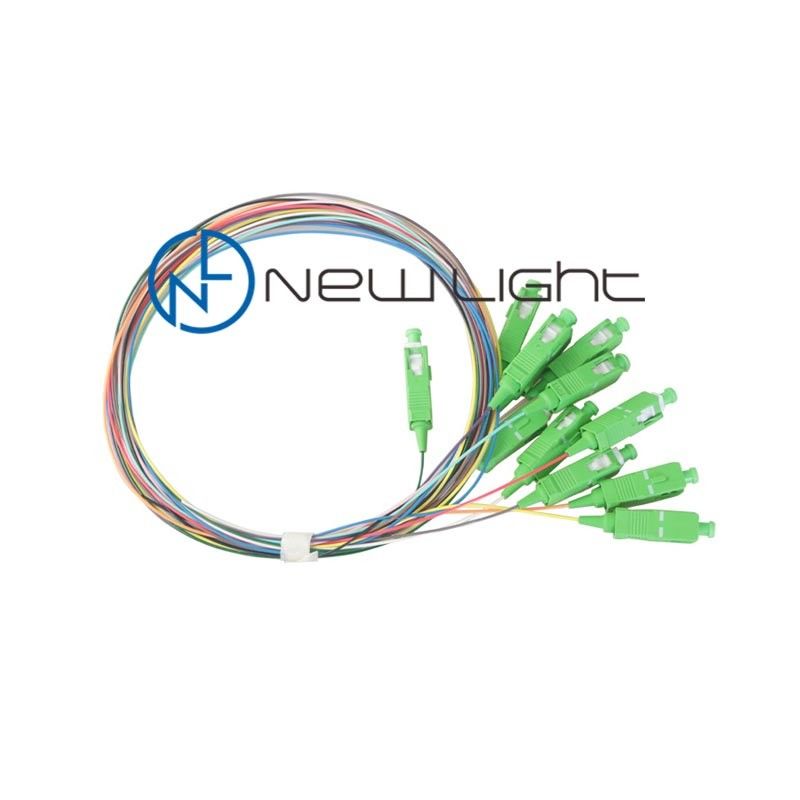

3m 12 color PVC LSZH Om3 Sc Fiber Optic Pigtail 0

Application

A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.

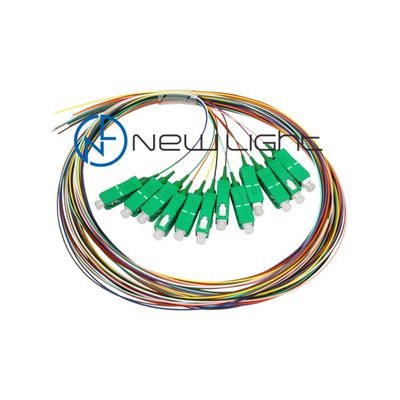

3m 12 color PVC LSZH Om3 Sc Fiber Optic Pigtail 1

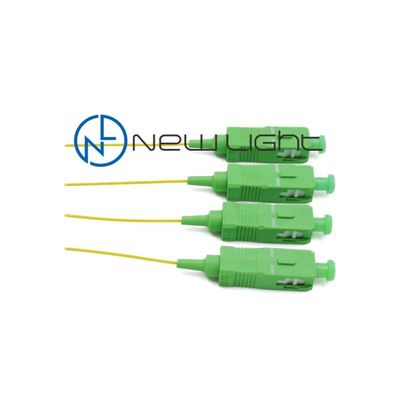

3m 12 color PVC LSZH Om3 Sc Fiber Optic Pigtail 2

1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km

.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.

6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

Payment term and delivery

1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
