Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable

Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable
Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable
Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable

Large Image :  Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable

Product Details:
Place of Origin: ShenZhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC/ PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 12000 pcs / day

Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable

Description
Products Name: SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable Connector Type: SC( Can Be ST , FC , LC , MPO , MTRJ , MU )
Mode Type: Multi Mode Cable Color: Purple (according To Your Request)
Cable Diameter: 0.9mm Cable Length: 1 M (can Be Customized )
Insertion Loss: ≤ 0.3 DB Return Loss: ≥ 40dB
Delivery Time: 2-7 Working Days Payment Term: 30% Deposit In Advance , 70% Balance Paid Before Delivery
High Light:

UPC Loose Tube Fiber Optic Cable

,

OM3 Loose Tube Fiber Optic Cable

,

OM3 loose tube fibre cable

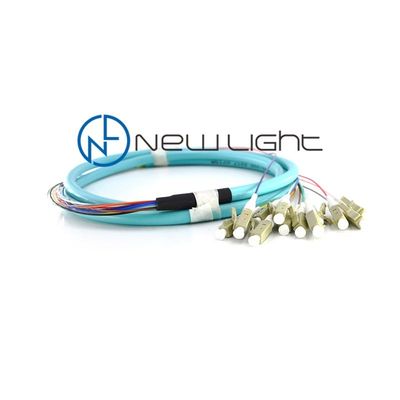

OM3 LC/UPC 12 Cores Bundle Fan Out loose tube fiber optic cable

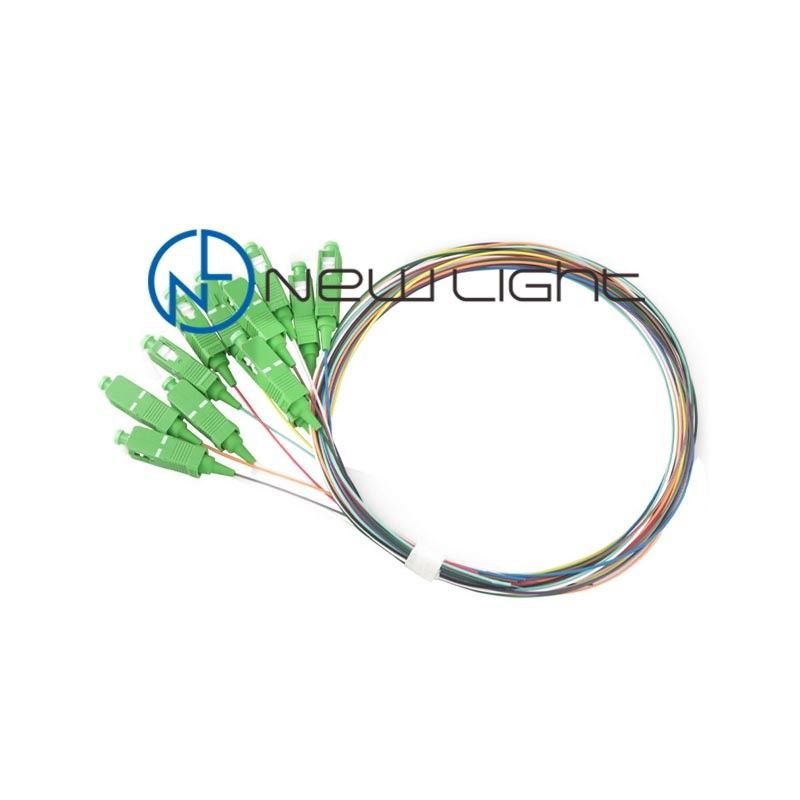

These Single mode 12 fiber pigtails with 900 micron buffer are ready for splicing.
Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.
In this 12-pack, twelve strands of fiber are terminated on one end with SC connectors.
Connectors are ceramic with Ultra physical contact (UPC) finish. Each cable comes with test results and a lifetime guarantee.



LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973



Features:


1. High-quality ferrules
2. Strict quality testing: Insertion Loss and Return Loss 100% tested
3. Compliant with Telcordia GR-326-CORE, IEC, REACH, ROHS standards
4. Various fiber types: OS2(9/125um), OM1(62.5/125um), OM2(50/125um), OM3 (50/125um), OM4(50/125um) and OM5(50/125um), all from YOFC and Corning
5. PVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen) jacket upon request
6. Available fiber cable OD: Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.8, Φ3.0, etc.
7. LC/SC/ST/FC/MPO/MTP/MTRJ/MU/DIN/D4/SMA and more connectors
8. We welcome custom cable order per your specific request



Applications:


1. CATV & FTTX
2. Active device termination
3. A variety of connectors
4. Precise installations
5. Industrial applications
6. Fiber optic communication networks
7. Fiber optic equipment and instrument
8. Long-distance, outdoor/indoor cabling, trunking, etc



FEATURES



Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length





Product Name OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
Modle Number Pigtail SC OM4
Diameter 0.9/2.0/3.0
Connector SC/LC/FC/ST/MPO
Cable length 1.2.3...Customized
Polishing yes,plished
Material LSZH/PVC
Form of sale OEM/ODM
Use Connect the optical transmitter, receiver, and the terminal box.
Custom Design Welcome
Sample Lead Time 1-3days
Certificate CE,ROHS
Advantage Low IL,High RL



Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC/UPC APC PC PC/UPC PC PC/UPC PC PC APC
Insertion loss(typical) dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
Return loss dB ≥ 50 ≥ 60 ≥ 30 ≥ 50 ≥ 30 ≥ 50 ≥ 30 ≥ 55 ≥ 75
Operating wavelength nm 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550
Exchangeability dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Vibration dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Operating temperature   -40~75 -40~75 -40~75 -40~75
Storage temperature   -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0





Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable 0





Application

A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.



Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable 1

Bundle Fan Out OM3 LC/UPC Loose Tube Fiber Optic Cable 2







1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.


2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km

.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.


5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.


6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.





Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
