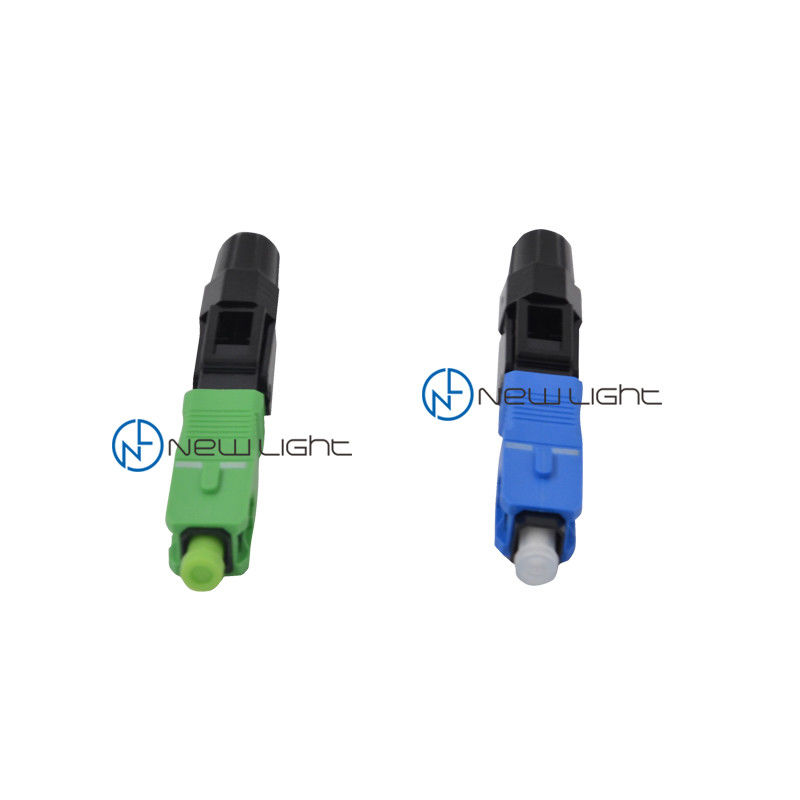

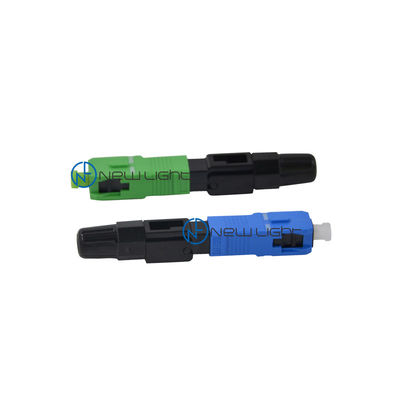

Field Installable 90N 2.0mm SC UPC Optical Cable Connector

Field Installable 90N 2.0mm SC UPC Optical Cable Connector
Field Installable 90N 2.0mm SC UPC Optical Cable Connector Field Installable 90N 2.0mm SC UPC Optical Cable Connector Field Installable 90N 2.0mm SC UPC Optical Cable Connector

Large Image :  Field Installable 90N 2.0mm SC UPC Optical Cable Connector

Product Details:
Place of Origin: Shenzhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: NLFC004
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: can be negotiated
Packaging Details: standard packing
Delivery Time: 2-7 working days after received payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , Paypal

Field Installable 90N 2.0mm SC UPC Optical Cable Connector

Description
Type: Fiber Quick Connector Application: Field Assembly
Insert Loss: ≤0.3dB Storage Temperature: -40℃ - +85℃
Model Number: SC / UPC Tensile Strength: >90N
Suitable For Cable: 0.9 / 2.0 / 3.0 Length: 50 / 55/56/58/60mm
Delivery Time: 2-7 Working Days After Received Payment Certificate: CE , ISO, RoHS
Payment Term: 30% Deposit , Balance Paid Before Delivery
High Light:

SC UPC Optical Cable Connector

,

2.0mm Optical Cable Connector

,

90N Field Installable Connector

Feature of field installable connector

field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers .

field-installable connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.





Specifications of field installable connector

  Single mode(UPC) Single mode(APC)
Insertion loss ≤ 0.2db ≤ 0.2db
Return loss ≥55db ≥65db
Durability ≤ 0.2db typical change, 1000 times mating
Operating Temperature -45 to +85 degree
Ferrule Hole Sizes 125.0+1/-0um, Concertricity:≤1.0um 125.0+1/-0um, Concertricity:≤0.5um
125.3+1/-0um, Concertricity:≤1.0um 125.3+1/-0um, Concertricity:≤0.5um
125.5+1/-0um, Concertricity:≤1.0um 125.5+1/-0um, Concertricity:≤0.5um
126.0+1/-0um, Concertricity:≤1.0um 126.0+1/-0um, Concertricity:≤0.5um





Field Installable 90N 2.0mm SC UPC Optical Cable Connector 0



Standards of field installable connector

All field installable connector and final products are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455



Order information of field installable connector


1 . Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
2 . Cable type: drop cable , indoor cable 0.9mm, 2.0mm
3 . Connector color: Blue,Green, Black
4 . Fiber type: G652D, G657A1, G657A2

Field Installable 90N 2.0mm SC UPC Optical Cable Connector 1



Packing of field installable connector





Field Installable 90N 2.0mm SC UPC Optical Cable Connector 2

Field Installable 90N 2.0mm SC UPC Optical Cable Connector 3





Quality control :



Field Installable 90N 2.0mm SC UPC Optical Cable Connector 4















More products :



Field Installable 90N 2.0mm SC UPC Optical Cable Connector 5





Field Installable 90N 2.0mm SC UPC Optical Cable Connector 6

1. Are you the real factory?
Yes we are the real factory with 16 years history



2. What is your fiber brand?
Fiber brands including YOFC FiberHome , Corning fiber .



3. What is your main products?
Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords , field installable connector and so on .



4. Product quality guarantee period?
20 years Guarantee for fiber optic cable



5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers



6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products



7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds



8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered



9. Payment
For large orders: T/T
For small orders: T/T and Paypal are acceptable

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
