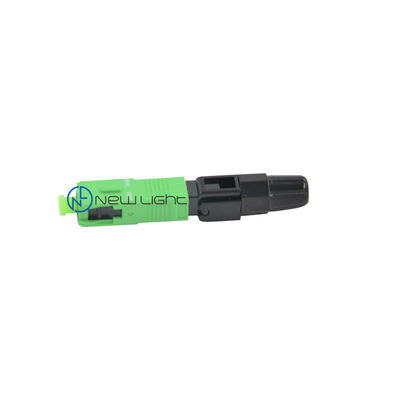

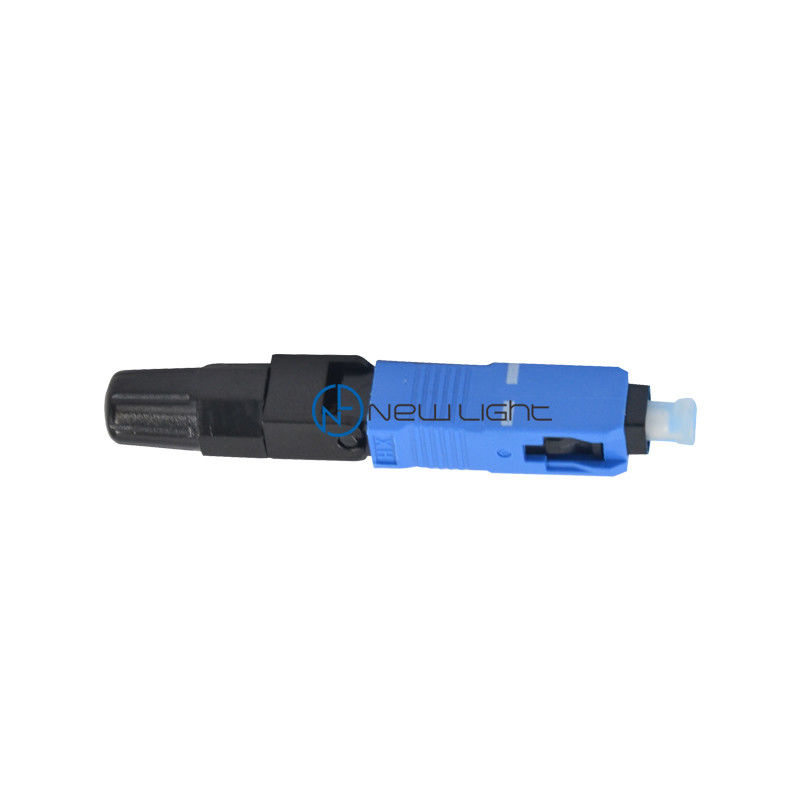

Product Details:
|
| Type: | Fiber Quick Connector | Application: | Field Assembly |
|---|---|---|---|
| Insert Loss: | ≤0.3dB | Storage Temperature: | -40℃ - +85℃ |
| Model Number: | SC / UPC | Tensile Strength: | >90N |
| Suitable For Cable: | 0.9 / 2.0 / 3.0 | Length: | 50 / 55/56/58/60mm |
| Delivery Time: | 2-7 Working Days After Received Payment | Certificate: | CE , ISO, RoHS |
| Payment Term: | 30% Deposit , Balance Paid Before Delivery | ||
| High Light: | FTTH Quick Assembly Connector,3.0mm Quick Assembly Connector,UPC Pre Stubbed Cable Connector |
||

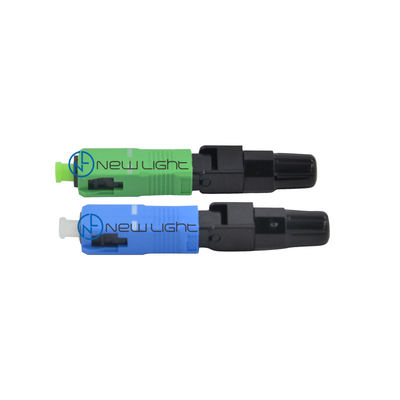

The fiber fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Please kindly note that 0.9mm, 2.0mm and 3.0mm diameter are for the same usage. If 2.0mm or 3.0mm are needed, just remove the tail handle from 0.9mm fast connector.
Feature of fiber fast connector
• No epoxy and polishing required
• Quick and easy fiber termination
• Precision mechanical alignment insures low insertion loss
• Superior optical performance
• Streamlined component design, convenient operation
• Pre-installed, on-site assembly without end face grinding and consideration
• Uses proven, molded v-groove technologies
• Allow optical continuity to be verified by use of visual fault locator (VFL)
• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• CATV
• Optical access
Specifications of fiber fast connector
| Single mode(UPC) | Single mode(APC) | ||
| Insertion loss | ≤ 0.2db | ≤ 0.2db | |
| Return loss | ≥55db | ≥65db | |
| Durability | ≤ 0.2db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85 degree | ||
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity:≤1.0um | 125.0+1/-0um, Concertricity:≤0.5um | |
| 125.3+1/-0um, Concertricity:≤1.0um | 125.3+1/-0um, Concertricity:≤0.5um | ||
| 125.5+1/-0um, Concertricity:≤1.0um | 125.5+1/-0um, Concertricity:≤0.5um | ||
| 126.0+1/-0um, Concertricity:≤1.0um | 126.0+1/-0um, Concertricity:≤0.5um | ||
Standards of fiber fast connector
All components and final products are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455
Packing of fiber fast connector
Quality control of fiber fast connector:
More products :
1. Are you the real factory?
Yes we are the real factory with 16 years history
2. What is your fiber brand?
Fiber brands including YOFC FiberHome , Corning fiber .
3. What is your main products?
Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords , fiber fast connector and so on .
4. Product quality guarantee period?
20 years Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products
7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds
8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered
9. Payment
For large orders: T/T
For small orders: T/T and Paypal are acceptable
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
