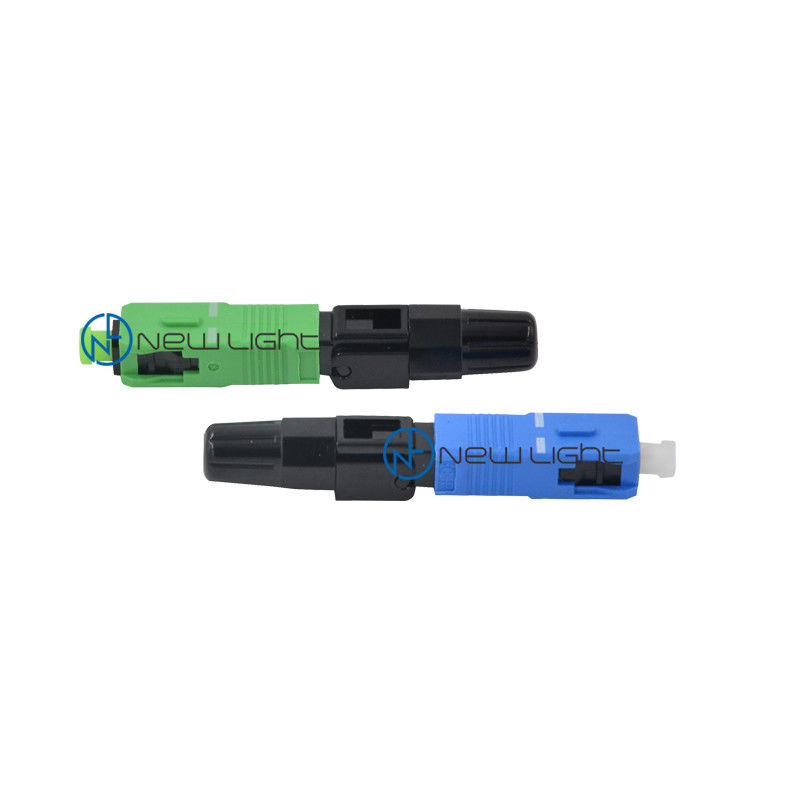

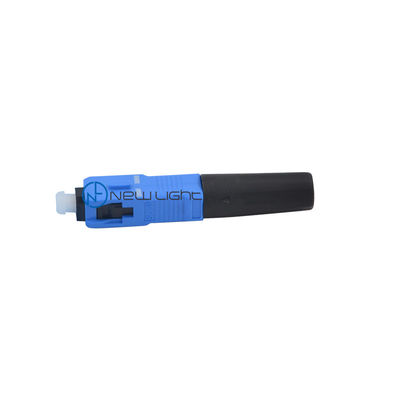

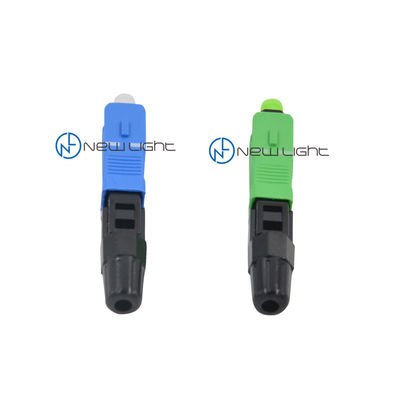

SC/APC FTTH project 90N 2.0mm Field Assembly Connector

The SC/APC 0.9 / 2.0mm Pre-polished Ferrule Field Assembly Connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

The Pre-polished Ferrule Field Assembly Connector have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.

Please kindly note that 0.9mm, 2.0mm and 3.0mm diameter are for the same usage. If 2.0mm or 3.0mm are needed, just remove the tail handle from 0.9mm fast connector.

Feature of Field Assembly Connector

1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB Max 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE

Specifications of Field Assembly Connector

Standards of Field Assembly Connector

All components and final products are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455

Packing of Field Assembly Connector

Quality control  of Field Assembly Connector :

More products :

1. Are you the real factory?
Yes we are the real factory with 16 years history

2. What is your fiber brand?
Fiber brands including YOFC FiberHome , Corning fiber .

3. What is your main products?
Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords , Field Assembly Connector and so on .

4. Product quality guarantee period?
20 years Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products

7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds

8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered

9. Payment
For large orders: T/T
For small orders: T/T and Paypal are acceptable

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
