Product Details:
|
| Products Name: | Multimode Fiber Pigtail | Connector Type: | SC( Can Be ST , FC , LC , MPO , MTRJ , MU ) |
|---|---|---|---|
| Mode Type: | MM ,SM | Cable Color: | Yellow |
| Cable Diameter: | 0.9mm | Cable Length: | 1 M (can Be Customized ) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | ≥ 40dB |
| Delivery Time: | 2-7 Working Days | Payment Term: | 30% Deposit In Advance , 70% Balance Paid Before Delivery |
| High Light: | Loose Buffer Multimode Fiber Pigtail,10G LC Multimode Fiber Pigtail,12core Loose Buffer Optic Pigtail |
||

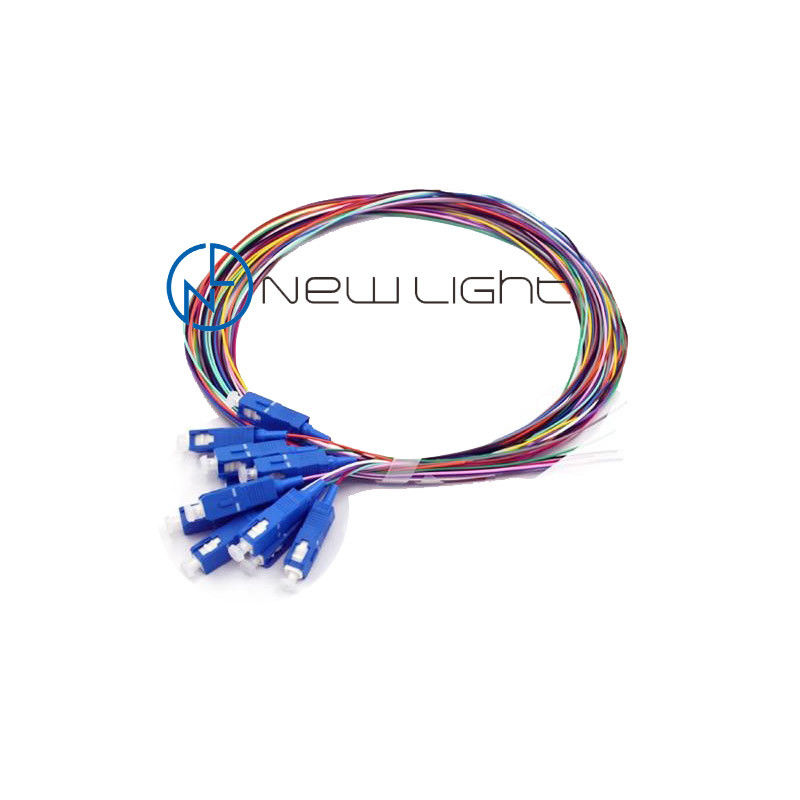

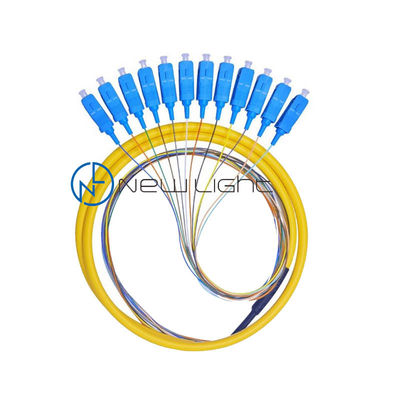

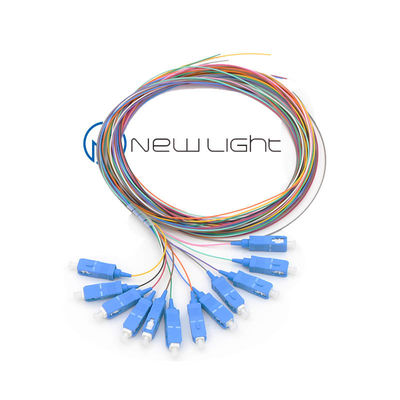

10 G LC ST SC 12core Bundle loose buffer multimode fiber pigtail
Multimode fiber is a common choice to achieve 10 Gbit/s speed over distances required by LAN enterprise and data center applications. There are several kinds of multimode fiber types available for high-speed network installations, and each with a different reach and data-rate capability. With so many options, it can be tough to select the most suitable multimode fiber. OM1 vs OM2 vs OM3 vs OM4 vs OM5, which to choose? You may get answer in this article.
Options include LC, SC, FC, ST, MT-RJ and MTP® connectors. RoHs compliant indoor, outdoor (loose tube), indoor/outdoor and ribbon cables are available. Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
| Specification | S.M | M.M | |||||||||||||||||||||||||||||||||||||||||||||
| PC | UPC | APC | |||||||||||||||||||||||||||||||||||||||||||||
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | |||||||||||||||||||||||||||||||||||||||||||
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | |||||||||||||||||||||||||||||||||||||||||||
| Durability(1000 matings) | <=0.20dB | ||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -40~+85℃ | ||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -40~+85℃ | ||||||||||||||||||||||||||||||||||||||||||||||
| Cable Diameter(mm) | 0.9/2.0/3.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized
|
||||||||||||||||||||||||||||||||||||||||||||||
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
Multimode fiber (MMF) is a kind of optical fiber mostly used in communication over short distances, for example, inside a building or for the campus. Multimode fiber optic cable has a larger core, typically 50 or 62.5 microns that enables multiple light modes to be propagated. Because of this, more data can pass through the multimode fiber core at a given time. The maximum transmission distance for MMF cable is around 550m at the speed of 10Git/s. It can transmit farther at lower data rates, such as going about 2km at 100Mb/s.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
