|Product Name:||E2000 APC||Connector:||LC UPC- LC APC|
|Fiber Type:||Duplex||Length:||Any Length|
|Insertion Loss:||≤0.3dB||Wavelength:||1310nm / 1550nm|
|Quality Control:||100% Test Before Shipping||Return Loss:||≥50dB|
|Polish:||UPC And APC||Real Factory:||Yes|
|Application:||FTTH FTTB FTTX Network|
OM3 Fiber Optic Patch Cable,
10Gb Fiber Optic Patch Cable,
1550nm Multimode Duplex Cable

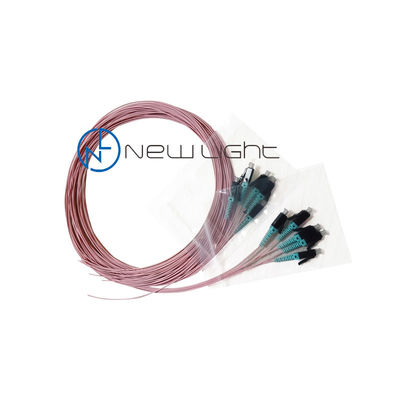

OM3 10Gb 50/125 lc to lc multimode duplex fiber optic patch cable
1-Rated OM5, this 50/125 multimode fiber cable with duplex LC connectors carries signals in 40/100 Gb Ethernet networks.
Rated OM5 to offer a wideband 50/125 multimode fiber solution
2-For 40/100 Gb speeds up to 300 meters (at 850 nm)
3-Laser-optimized for use with cost-effective VCSEL light sources
4-Lime green jacket for easy OM5 identification; 20 m (66 ft.) cable
5-Backward compatible with OM3 and OM4 applications
Standards Compliance of fiber optic patch cords
• RoHS, ISO 9001 Compliant
• TIA 604 (FOCIS)
• TIA/EIA 492AAAE • IEC 61754
• IEC 60793-2-10 • IEC 61300-3-35
Features of fiber optic patch cords
• High quality zirconia ferrules.
• Good repeatability and interchangeability.
• LC, SC, ST, FC, LSH, MTRJ, MU connectors
• Flame-retardant, rugged and durable
• Printing helps clarify and recognize
• OS2, OM4, OM3, OM2, OM1, OM5 are
• Factory terminated and tested for
insertion loss, return loss and end face.
Technical Specification of fiber optic patch cords
|Connector Types End A||LC/SC/ST/FC/LSH/MU/MTRJ|
|Connector Types End B||LC/SC/ST/FC/LSH/MU/MTRJ|
|Polish type||SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC; MMF: UPC-UPC|
|Connector Ferrule||Zircomia Ceramic|
|Cable Diameter||Duplex:2.0/3.0mm ; Simplex:0.9/2.0/3.0mm|
Minimum Bend Radlus
|SMF: 10mm; MMF: 7.5mm/15mm|
Mechanical Characteristics of fiber optic patch cords
|Fiber count||Duplex /Simplex|
|Cable Jacket||PVC (Riser/OFNR)/LSZH/Plenum (OFNP)|
|Jacket Color||OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow|
|Fiber Grade||OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651|
Optical Characteristics of fiber optic patch cords
|Connector Insertion Loss||LC/SC/ST/FC/LSH/MU/MTRJ≤0.3dB|
|Connector Return Loss||SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ)|
|Attenuation at 1310nm||0.36dB/km|
|Attenuation at 1550nm||0.22dB/km|
|Attenuation at 850nm||3.0dB/km|
|Attenuation at 1300nm||1.0dB/km|
Hot sale products
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with product price for your reference.
We have a very competitive price shipping forwarder. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.
For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with an urgent order for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /ODM. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.
For big value products, we can't offer it for free, sample charge and freight repaid first. after you placed an order, the sample charge will be returned.
11. Q: How can I order?
A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.
2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.
3. When you accept the quotation, we will make a Proforma Invoice with our bank account.
4. We will arrange the production for you after we received the payment.
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.
6. We will try our best to meet your requirements for long-term cooperation.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
Packing for reference :
