Product Details:
|
Product Name: | FOA Patch Cables | Connector: | SC UPC- LC APC |
---|---|---|---|
Fiber Type: | Duplex | Length: | Any Length |
Insertion Loss: | ≤0.3dB | Wavelength: | 1310nm / 1550nm |
Quality Control: | 100% Test Before Shipping | Return Loss: | ≥50dB |
Polish: | UPC And APC | Real Factory: | Yes |
Application: | FTTH FTTB FTTX Network | ||
Highlight: | 1550nm FOA Patch Cables,LC/APC FOA Patch Cables,OS2 Single Mode FOA Cables |

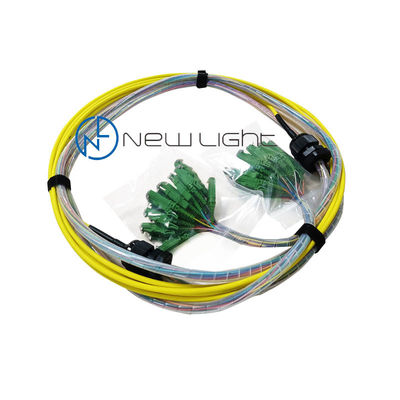

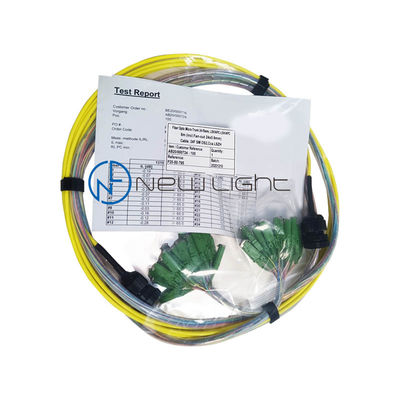

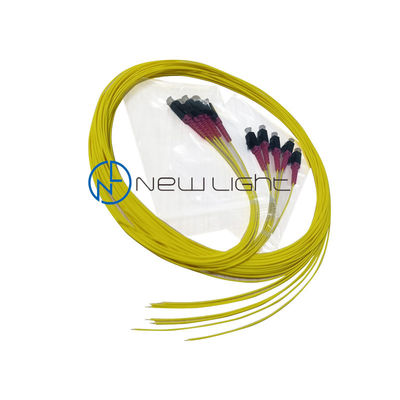

9/125um OS2 single mode 50/125um multimode LC/APC FOA Patch Cables
FO Standard Fiber Patch Cables Since many cable plants use one type of connector and the equipment another, e.g. STs on a multimode cable plant and LCs on the equipment, you may need to stock hybrid patch cables with different connectors on each end to make the connection. For singlemode networks, the connectors must also have the proper finished ferrule ends, either PC or ultra PC polish for most systems or angled PC (APC) connections for higher speed systems or those carrying AM video. Do not mix PC and APC connectors as that may damage them! The TIA 568 color code for connector bodies and/or boots is Beige for multimode fiber except aqua for laser-optimized fiber, Blue for singlemode fiber, and Green for APC (angled PC) connectors.
Norm references / Approvals of FOA Patch Cables
LC comply with IEC standard 61754-20
SC comply with IEC standard 61754-4
Features of FOA Patch Cables
• High quality zirconia ferrules.
• Good repeatability and interchangeability.
• LC, SC, ST, FC, LSH, MTRJ, MU connectors
are available.
• Flame-retardant, rugged and durable
jacket.
• Printing helps clarify and recognize
different cables.
• OS2, OM4, OM3, OM2, OM1, OM5 are
available.
• Factory terminated and tested for
insertion loss, return loss and end face.
Technical Specification of Optical Fibre Patch Cords
Physical Characteristics | Description |
Connector Types End A | LC/SC/ST/FC/LSH/MU/MTRJ |
Connector Types End B | LC/SC/ST/FC/LSH/MU/MTRJ |
Polish type | SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC; MMF: UPC-UPC |
Connector Ferrule | Zircomia Ceramic |
Cable Diameter | Duplex:2.0/3.0mm ; Simplex:0.9/2.0/3.0mm |
Interchangeability | ≤ 0.2dB |
Minimum Bend Radlus |
SMF: 10mm; MMF: 7.5mm/15mm |
Mechanical Characteristics of fiber optic patch cords
Fiber type | OS2/OM5/OM4/OM3/OM2/OM1 |
Fiber count | Duplex /Simplex |
Cable Jacket | PVC (Riser/OFNR)/LSZH/Plenum (OFNP) |
Jacket Color | OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow |
Fiber Grade | OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651 |
Optical Characteristics of Optical Fibre Patch Cords
Connector Insertion Loss | LC/SC/ST/FC/LSH/MU/MTRJ≤0.3dB |
Connector Return Loss | SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ) |
Attenuation at 1310nm | 0.36dB/km |
Attenuation at 1550nm | 0.22dB/km |
Attenuation at 850nm | 3.0dB/km |
Attenuation at 1300nm | 1.0dB/km |
Environmental Characteristics
Operating Temperature | -20~70℃ |
Storage Temperature | -40~80℃ |
How to order Optical Fibre Patch Cords
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
