Product Details:
|
| Color: | Green / Red | Connector: | SC LC |
|---|---|---|---|
| Polish: | UPC / APC | Mode: | Single Mode |
| Attenuator: | 15dB | Material: | Plastic |
| High Light: | ST UPC Multimode Fiber Attenuator,1620nm Multimode Fiber Attenuator,250mW Variable Fiber Attenuator |
||
3dB ST Fixed Fiber Optic Attenuator Male to Female for equipment
General Description
As a optical passive devices, attenuators mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired leve in the link without any changes on its original transmission wave.
Fixd Optical attenuators are used in the fiber optic links to reduce the optical power at a certain level.Commonly used fiber optic attenuators are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors.

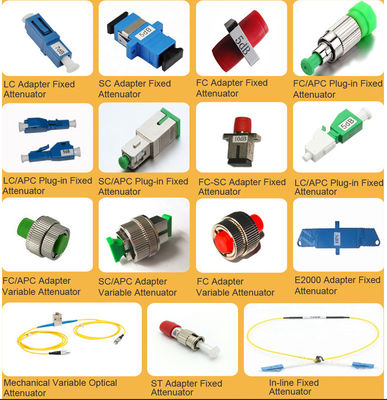

Fixed value fiber optic attenuators can reduce the optical light power at a fixed level,Variable fiber optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same as attenuators and are used inline.
Main Features
Low insertion loss and back reflection loss.
High Precision of Mechanical Dimensions.
Compliant with Telcordia GR-326-Core, IEC, TIA.
RoHS compliant.
| Attenuation Value | Standard | PC 0dB to 20dB (1dB step). |
| APC 25dB | ||
| Custom | Step to be specified | |
| Operating Wavelength | 1260nm~1620nm | |
| Return Loss | SPC≥40dB | |
| UPC≥50dB | ||
| APC≥60dB | ||
| Attenuation Tolerance | Standard | 0dB~10dB ±1.0dB |
| Custom | 11dB~25dB ±1.5dB | |
| Maximum Power Capability | 250mW | |
| Operating Temperature | -40℃~+75℃ | |
| Note: Custom configurations avaliable upon request | ||
|
Attenuation Vale
|
0dB to 30dB
|
|
Operating Wavelength
|
SM:1260nm~1620nm, MM:850/1300nm (Customer ordered)
|
|
Return Loss
|
UPC≥50dB, APC≥60dB
|
|
Polarization Loss
|
≤0.2dB
|
|
Attenuation Tolerance
|
0dB~9dB:0.5dB, 10~30dB:10% of attenuation value
|
|
Maximum Power Capability
|
250mW
|
|
Operating Temperature
|
-40°C~+85°C
|
|
Storage Temperature
|
-40°C~+85°C
|
Applications:
Power management in optical networks
Wavelength division multiplexing(WDM) system channel balancing
Erbium Doped Fiber Amplifiers (EDFA)
Optical add-drop multiplexers(OADM)
Receiver protection
Test equipment
compensation of different connector attenuation
