MPO Cassette Module

12 Core Elite LC to MTP MPO Cassette Module for 19-inch Rack with High Density Fiber Optic Connectivity

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core Elite LC to MTP MPO Cassette Module for 19-inch Rack with High Density Fiber Optic Connectivity

Brand Name:	New light
Model Number:	12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Connector:

MPO/MTP

Connector Type:

MPO/LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

1 Years

Material:

Plastics And Aluminum Alloy

Wavelength:

850nm/1310nm/1550nm

Capacity:

SC Max 12core/LC Max 24core

Supply Ability:

10000 per day

Highlight:

LC To MTP MPO Cassette Module

12 Core Elite MPO Cassette Module

850nm SC Fiber Optic Cassette

Product Description

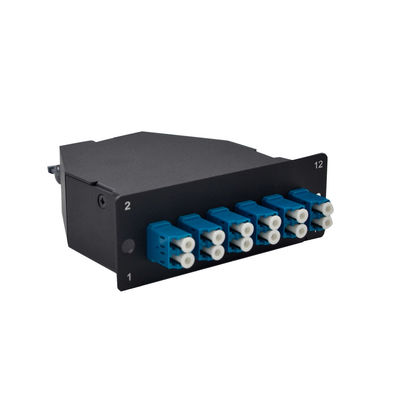

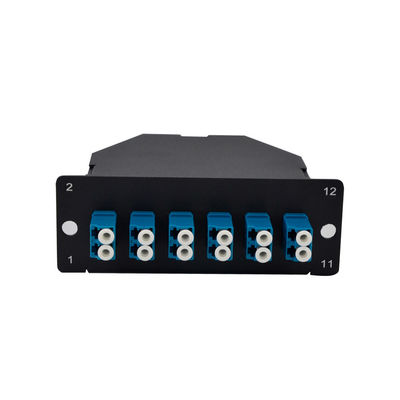

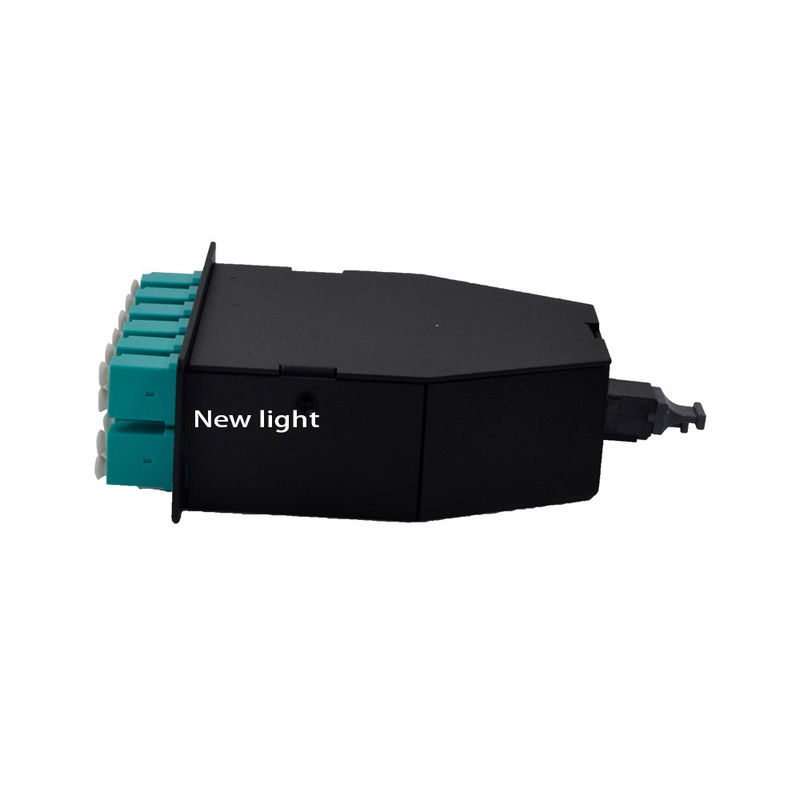

12 Core Elite LC to MTP MPO Cassette Module for 19" Rack

Product Overview

The 19-inch rack type A 12-core Elite LC to MTP/MPO cassette module provides high-density fiber optic connectivity solutions for data centers and enterprise networks.

Key Features

12-fiber MTP® adapter on rear routed to duplex LC adapters on front patch field
Fully compliant with MPO standards for superior performance
10G-10G interconnect solution for data center backbone cabling
Bayonet locking design with IP68 sealing
UL certified for quality assurance
Customizable configurations available
OEM packaging and branding options

Applications

Data communication networks
Optical system access networks
Storage area networking fiber channel
High density architectures

Technical Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38"x4.29"x4.64" (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Management

Ensures proper transmitter-to-receiver matching with intelligent connectivity solutions for network optimization.
