Product Details:
|
| Connector: | MPO/MTP | Connector Type: | MPO/LC |
|---|---|---|---|
| Operating Temperature: | -40℃ ~ +80℃,40~+85 | Insertion Loss: | Standard Loss And Elite |
| Warranty: | 1 Years | Material: | Plastics And Aluminum Alloy |
| Wavelength: | 850nm/1310nm/1550nm | Capacity: | SC Max 12core/LC Max 24core |
| High Light: | MTP MPO Cassette Patch Panel,LGX MPO Cassette Patch Panel,1550nm Rack Mounted Fiber Cassette |
||

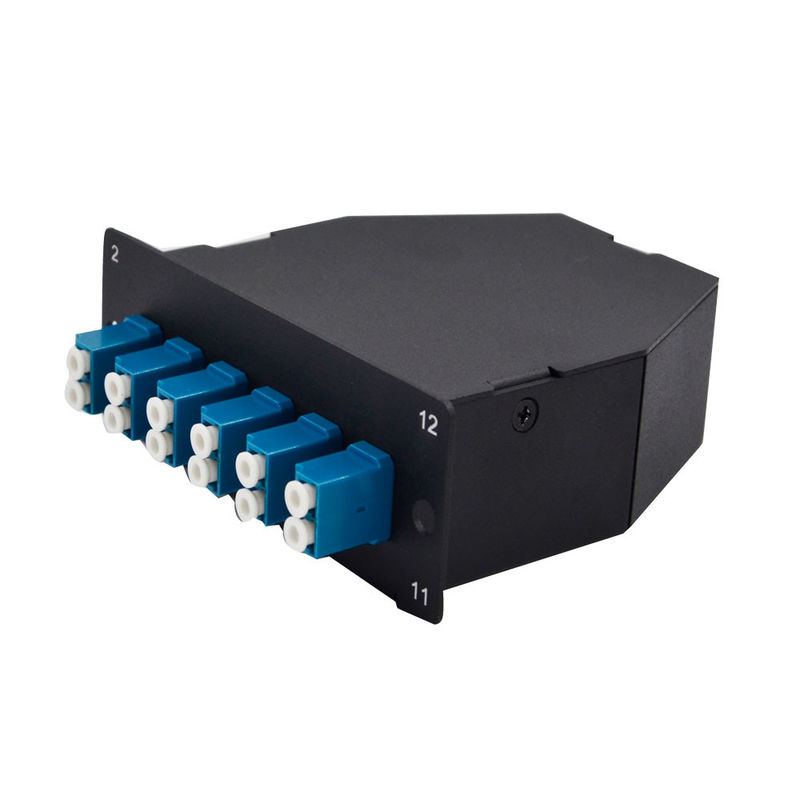

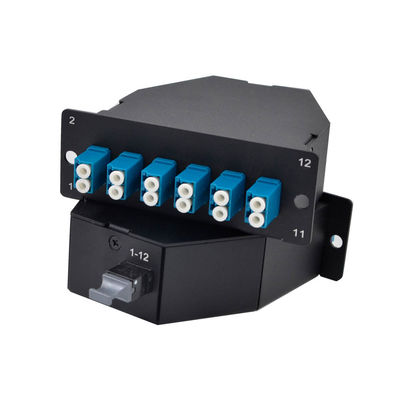

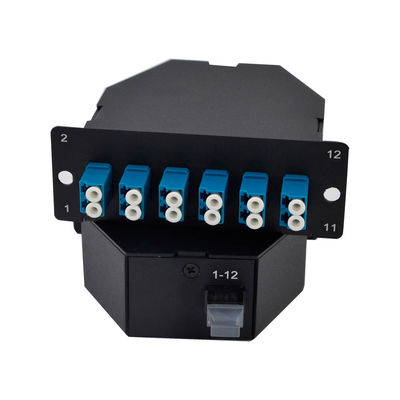

Rack mounted LGX type B 12 fibers Elite MTP / MPO cassette module
Product description of MTP / MPO cassette module :
ffers a wide range of single mode and multimode MPO fiber optic cassettes. The cassettes are pre-terminated, pre-tested, and snap in to reduce installation time. They offer a modular solution to make moves, adds, and changes easy. The rear MPO connector is compatible with an MTP® patch cord. The fiber cassettes are available in three styles; Classic – 72 LC fibers per RU, High-Density (HD) – 96 LC fibers per RU, and Plug and Play – 96 fibers per RU.
Classic: The cassette is LGX® compatible and can fit many industry-standard enclosures and blank patch panels.
Features of MTP / MPO cassette module :
High-quality aluminum material allows for compact and durable cassettes.
Cassettes offer a pre-terminated solution which saves time on assembly and termination.
MPO connector reduces insertion loss which enhances channel link performance.
Suitable for any applications with a need for higher bandwidth.
Cassettes allow up to 72 fibers within 1RMS.
Compatible with Classic LGX Compatible Fiber Optic Patch Panels and Rack-mount & Wall-mount Fiber Optic Enclosures.
MPO Male Adapter of MTP / MPO cassette module :
Material: Polybutylene Terephthalate (PBT)
Color: Black
Mating Cycles: 1000 Mating Cycles
Dust Cap: TPR
Color: Black
Insertion Loss: <0.5dB
Material of MTP / MPO cassette module :
Cassette Housing:
Material: Aluminum Alloy
Surface Finishing: Black Powder Coat
• High-density modular design, up to 96 fiber in 1U for efficient utilization.
• Pre-terminated cassette for improved reliability and quick deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber links.
• Offered in a wide range of performance and polarity configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties of MTP / MPO cassette module :
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
Polarity Illustration of MTP / MPO cassette module :
In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.
