| Brand Name: | New light |
| Model Number: | 24 port MPO |
| MOQ: | 10 pcs |
| Price: | USD 68-120 set |
| Packaging Details: | opp bag+Carton box |
| Payment Terms: | T/T, Western Union, MoneyGram ,Paypal |

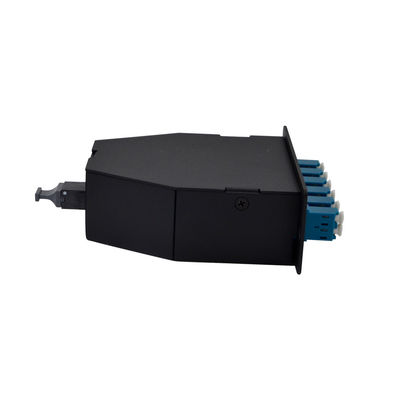

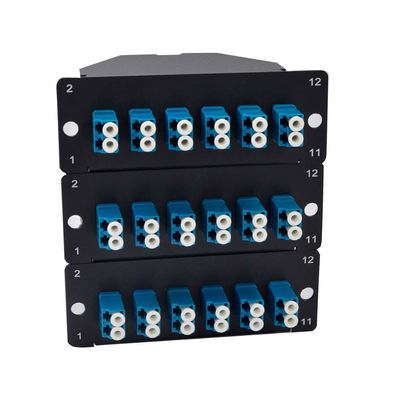

Aluminum Alloy 12 Fiber MTP / MPO to 6 x LC Duplex Singlemode Cassette
Product description of Singlemode Cassette :
NEW LIGHT Offers cassette has a LGX foot print and can be installed in a Vertical MPO cassette holder or a Horizontal MPO cassette holder. Fibertronics MTP / MPO Cassettes are all made with high quality Corning fiber optic cable and come in many fibermodes: Single Mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um), and others. These cassettes also have many common fiber optic connector ports available: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors with LC and LC/APC options for both 12 Fiber Cassettes and 24 Fiber Cassettes. All Fibertronics MTP / MPO Cassettes can be made with either male or female MTP / MPO connectors to fit your needs.
Features of MTP/MPO Fiber Cassettes
Type A Polarity
MPO/MTP® to Duplex LC Connections
Multimode 10G OM4 50/125 Fiber Type
Available in 12 or 24 Fiber Counts
LGX Style Footprint
quick and easy plug-and-play data solution
MPO Male Adapter of Singlemode Cassette :
Material: Polybutylene Terephthalate (PBT)
Color: Black
Mating Cycles: 1000 Mating Cycles
Dust Cap: TPR
Color: Black
Insertion Loss: <0.5dB
Material of of Singlemode Cassette :
Cassette Housing:
Material: Aluminum Alloy
Surface Finishing: Black Powder Coat
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties of MTP / MPO cassette module :
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
Polarity Illustration of Singlemode Cassette :
In simple terms, an MTP® connector, as described by US Conec, is “a high-performance MPO connector with multiple engineered product enhancements, improving optical and mechanical performance when compared with generic MPO connectors”. MTP® and MPO connectors are fully compatible.
MTP is a brand of US Conec and MTP® brand connectors are fully compliant with IEC Standard 61754-7 and TIA 604-5 – Type MPO.
Some of the advantages and distinctions between MTP® and MPO connectors include:
|
| Brand Name: | New light |
| Model Number: | 24 port MPO |
| MOQ: | 10 pcs |
| Price: | USD 68-120 set |
| Packaging Details: | opp bag+Carton box |
| Payment Terms: | T/T, Western Union, MoneyGram ,Paypal |
Aluminum Alloy 12 Fiber MTP / MPO to 6 x LC Duplex Singlemode Cassette
Product description of Singlemode Cassette :
NEW LIGHT Offers cassette has a LGX foot print and can be installed in a Vertical MPO cassette holder or a Horizontal MPO cassette holder. Fibertronics MTP / MPO Cassettes are all made with high quality Corning fiber optic cable and come in many fibermodes: Single Mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um), and others. These cassettes also have many common fiber optic connector ports available: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors with LC and LC/APC options for both 12 Fiber Cassettes and 24 Fiber Cassettes. All Fibertronics MTP / MPO Cassettes can be made with either male or female MTP / MPO connectors to fit your needs.
Features of MTP/MPO Fiber Cassettes
Type A Polarity
MPO/MTP® to Duplex LC Connections
Multimode 10G OM4 50/125 Fiber Type
Available in 12 or 24 Fiber Counts
LGX Style Footprint
quick and easy plug-and-play data solution
MPO Male Adapter of Singlemode Cassette :
Material: Polybutylene Terephthalate (PBT)
Color: Black
Mating Cycles: 1000 Mating Cycles
Dust Cap: TPR
Color: Black
Insertion Loss: <0.5dB
Material of of Singlemode Cassette :
Cassette Housing:
Material: Aluminum Alloy
Surface Finishing: Black Powder Coat
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties of MTP / MPO cassette module :
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
Polarity Illustration of Singlemode Cassette :
In simple terms, an MTP® connector, as described by US Conec, is “a high-performance MPO connector with multiple engineered product enhancements, improving optical and mechanical performance when compared with generic MPO connectors”. MTP® and MPO connectors are fully compatible.
MTP is a brand of US Conec and MTP® brand connectors are fully compliant with IEC Standard 61754-7 and TIA 604-5 – Type MPO.
Some of the advantages and distinctions between MTP® and MPO connectors include:
