Product Details:
|
| Connector Type: | SC / E2000 / FC / ST | Mode Type: | SM / MM |
|---|---|---|---|
| Cable Diameter: | 0.6mm Or 0.9mm | Insertion Loss: | ≤0.25dB |
| Return Loss: | APC≥65dB; PC≥55 | Delivery Time: | 2-7 Working Days |
| High Light: | UPC APC Fiber Optic Cable,12 Strand Fiber Optic Cable,1m fiber optic tail |
||

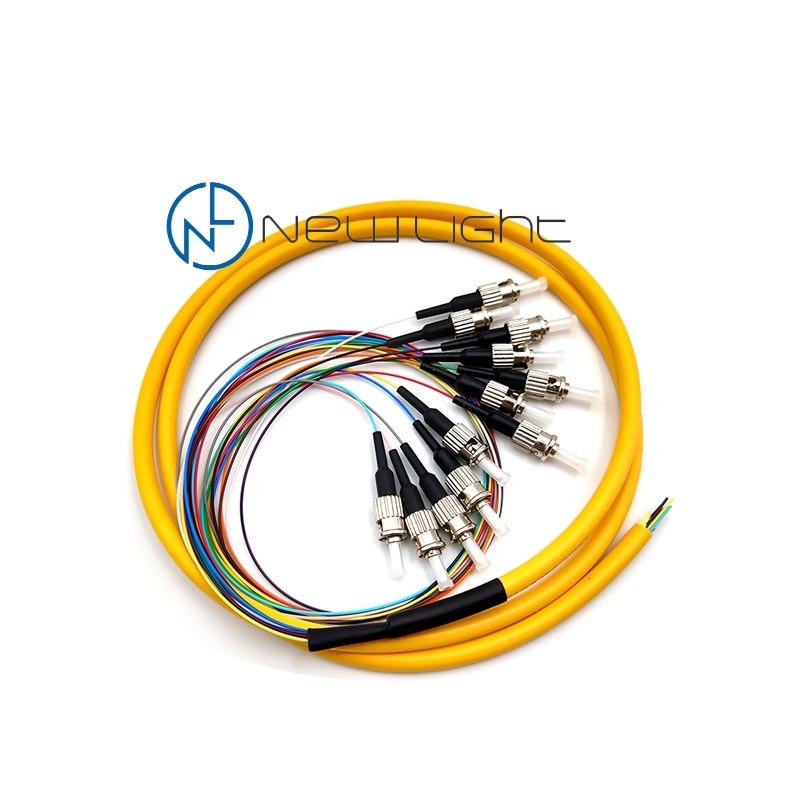

1M LSZH 0.9mm FC UPC / APC 12 strand single mode fiber optic cable
Features
* Insert-pull, key-oriented coupling mechanism which allows high repeatable, low-loss connection * Simplex ,Duplex and Multi-core accessories for standard or customized structure.
* PC/UPC/APC polish
* Comply with Telcordia GR-326-CORE Specification
* The material of plastic plug comply with the request of UL94V-O And Standard of RoHS
Application
* Optical communication network
* Telecom network
* Ethernet network
* CATV network
KEY FEATURES
this is label for the fc 12 color fiber optic patch cord color code , the insertion loss and te return loss of each fiber are clearly printed in the lable. Brand Logo will be also printed in the label if customer required.
Products info
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | LC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 1.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Type | Vertex offset(um) | Curvature radius(mm) | Feber Height(nm) | Angle offset(°) |
| 2.5mm UPC | ≤50 | 10~25 | (-50, +50) | None |
| 2.5mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
| 1.25mm UPC | ≤50 | 7~25 | (-50, +50) | None |
| 1.25mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
Sketch Map(LC Connector and 12 colors cable)
Company introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced productionequipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Payment term and delivery
1. Payment : T/T , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 1 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
Pakcing
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
FQA
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
