Product Details:
|
| Material: | PVC / LSZH / OFNR | Connector Type: | Mpo / Mtp |
|---|---|---|---|
| Fiber Type: | Singlemode / Multi Mode | Cable Diameter: | 0.9/2.0/3.0 |
| Cable Length: | 1/1.5/2/3/5/10m ( Can Be Customized Into Any Length As Your Request ) | Connector Mode Type: | UPC/APC/PC |
| High Light: | 24 Core MPO MTP Patch Cord,OFNR MPO MTP Patch Cord,OFNR mtp mpo patch cord |
||

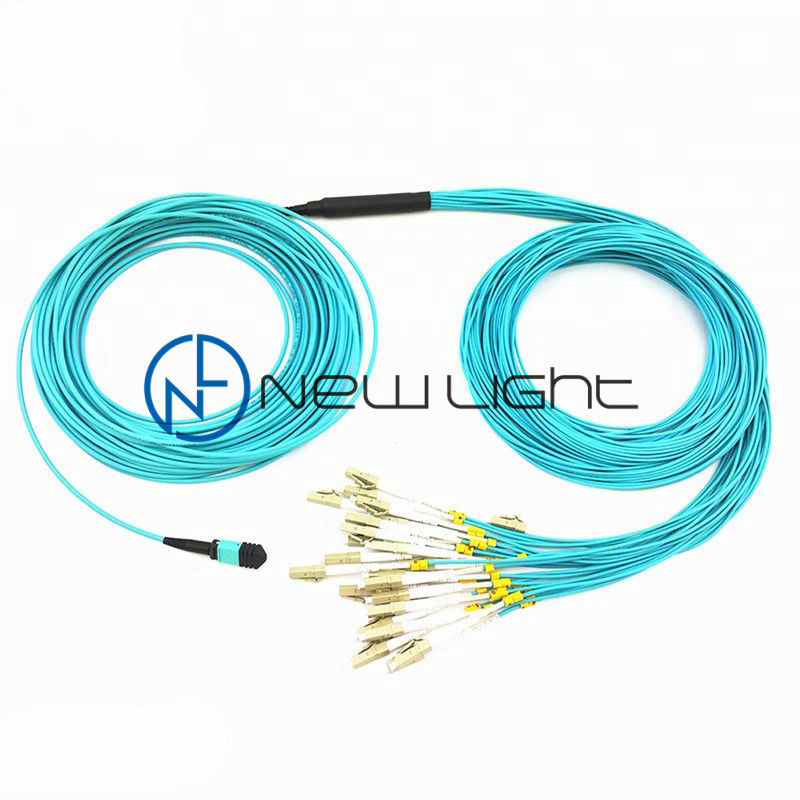

OFNR 8 12 24 Core MPO MTP Patch Cord Mtp Cassette 3 Years Warranty
Product Description
EC61754-7 & GR-1435-CORE compliant.
8 / 12 / 24 core mpo / mtp fiber cable is a Modular design, plug-locking structure,easy for test,Install,remove and adjust. Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber, 1U height wiring space can accommodate up to 96 LC optical interface, Section. Saving Cabinet and rack space, easy cable management Kinds of fiber,cable available,to meet different customer needs.
Can choice of male,female.Achieve precise positioning with the adapter connected via Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical fiber communication systems and high-efficiency high-density interconnect wiring. For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel requirements 10/100-1Gbps.
Features
* Push-pull latching
* Easy assembly, no crimp tool needed
* Alignment achieved with high precision guide pins
* Designed for low loss and standard loss SM and MM applications
* Ruggedized round cable, oval cable and bare ribbon options available
* Color coeed housings available to differentiate fiber type, polish type and/or connector grade
Patch cord information
1. Connector type : SC / LC / ST / FC/ MPO /MU / MTRJ / SMA
2. Fiber Type : Φ 0.9/1.8 /2.0/3.0mm ,
Fiber type : Single mode G652D(G657A1/G657A2 )
Multi-mode 62.5/125 OM1
50/125 OM2 / OM3-150 / OM3-300 / OM4
Coating Material: PVC / LSZH
3. Length: can be any length as your requirements
4. Cable color : 2.0/3.0 mm : yellow / orange / aqua / purple
0.9mm : blue / green / brown / grey / white / red / black / pink / yellow / purple / pink / aqua
5. Single Mode Multi mode Insertion Loss 0.50dB Typical (all fibers)0.30dB Typical (all fibers)
0.75dB Maximum (Single fiber) 0.50dB Maximum (Single fiber)
Return Loss ≥60dB (8° Angle Polish) >20dB Durability
<0.30dB change <0.20dB change` Operating Temperature -40°C~+80°C
Specification | Single Mode | Multi mode |
Insertion Loss | 0.50dB Typical (all fibers) | 0.30dB Typical (all fibers) |
Insertion Loss | 0.75dB Maximum (Single fiber) | 0.5dB Maximum (Single fiber) |
Return Loss | ≥60dB (8° Angle Polish) | >20dB |
Durability | <0.30dB change | <0.20dB change |
Operating Temperature | -40°C~+80°C |
|
Application:
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations
Wide Area Networks(WANs)
Quality control
We have a group of professional team technicians to ensure the stability of each batch of products, quality is the survival of our enterprises.
Connector plug : Plugging and unplugging uo to 1000 times
Insertion loss varivation <=0.2 dB
We will check all the goods before delivery it . ensure the quality are 100% past .
