Product Details:
|
| Connector Type: | SC / E2000 / FC / ST | Mode Type: | SM / MM |
|---|---|---|---|
| Cable Color: | 12 Colors | Cable Diameter: | 3.0mm |
| Cable Length: | Can Be Customized | Insertion Loss: | ≤0.5db |
| Return Loss: | APC≥65dB; PC≥55 | ||
| High Light: | OS2 MPO MTP Cable,MPO MTP Cable,3.0mm MPO MTP Patch Cord |
||

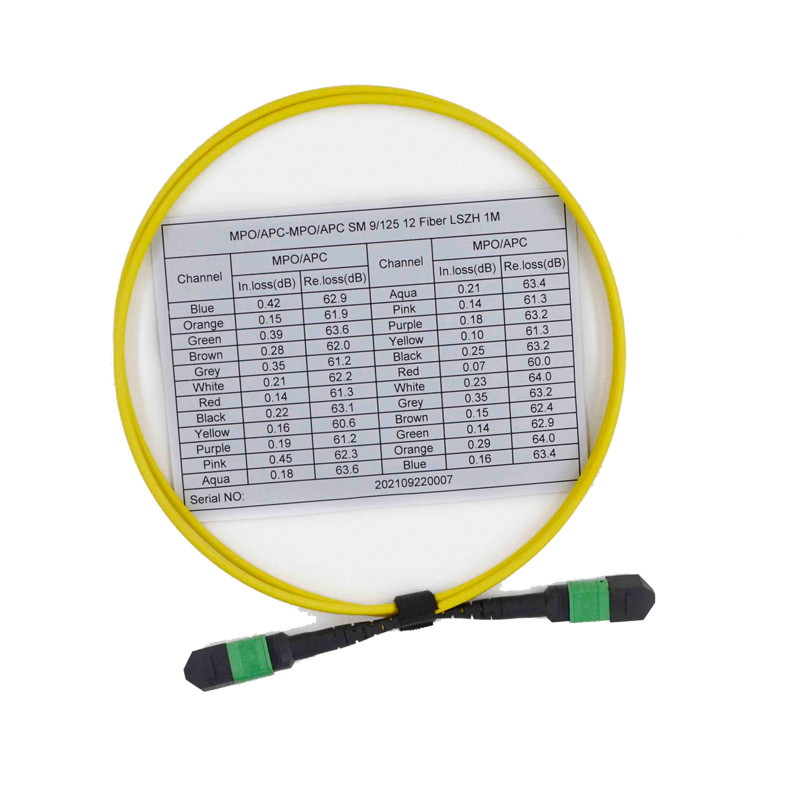

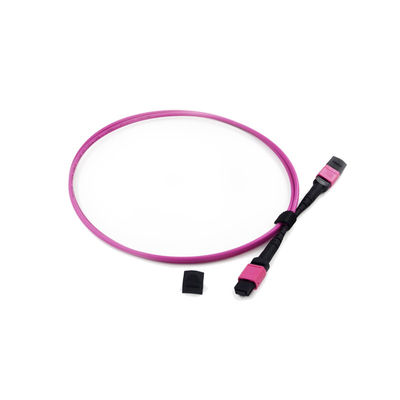

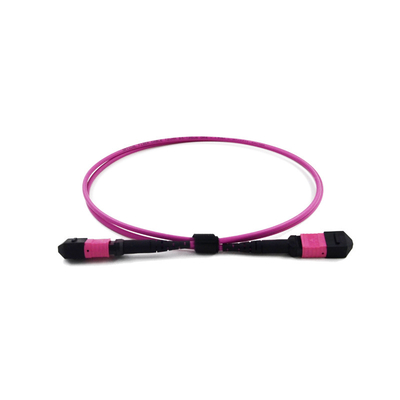

Female OS2 (9/125) MPO MTP Cable 12 Fibre multimode patch cord
Overview of mtp fiber optic cable
EXPLAIN MPO 12 FIBRE CONNECTORS AND POLARITY ?
There are three types of recognised cable polarity. See below with reference to the naming of the fibre positions in the connector.
Type A has fibre 1 connected to fibre 1, 2 to 2, 3 to 3 and so on.
Type B has fibre 1 connected to fibre 12, 2 to 11, 3 to 10 and so on.
Type C has fibre 1 connected to fibre 2, 2 to 1, 3 to 4 and 4 to 3 and so on with the fibres working in pairs.
Application
WHAT TYPE OF CABLE IS USED WITH MTP (MPO) CONNECTORS ?
Cable construction
MPO cables are most commonly used within data centre applications. These applications typically use high volumes of cables and have limited space. This has led to the adoption of most manufacturers of using a small, light and flexible cable called micro cable or microcore cable. The construction has 250um buffered fibres, an aramid yarn strength member and a single or dual outer sheath.
Readily available in core counts from 8 to 144 fibre cores the cable is typically built using 8 fibre or 12 fibre sub-units which are housed in an outer sheath. Note – 8 to 24 cores generally do not require the outer sheath as all fibres are within one unit. This cable construction gives about 65% reduction in space when compared to traditional tight buffered or loose tube cables and similar reduction in weight. The cable also has a smaller bend radius and these 3 factors make this cable the best option for high density fibre applications, mainly because more cabling can be installed per cabinet / cable tray.
Glass cores
Whereas the cable construction is quite similar across varying manufacturers, the glass cores used vary. There are around 5 large manufacturers of fibre glass cores and although all produce to the international standards of OM3, OM4, OS2 (singlemode), G657.A1 and G657.A2 (bend insensitive singlemode) the performance of the glass differs.
Most MPO cabling will be used within high data rate applications. For simple short direct connections, the brand of glass being used will make negligible much difference to performance. However, networks become more complex and introduce longer channels the brand of glass and the construction of the cable becomes a performance limiting factor.
Products info
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | LC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 1.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Type | Vertex offset(um) | Curvature radius(mm) | Feber Height(nm) | Angle offset(°) |
| 2.5mm UPC | ≤50 | 10~25 | (-50, +50) | None |
| 2.5mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
| 1.25mm UPC | ≤50 | 7~25 | (-50, +50) | None |
| 1.25mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
Sketch Map(LC Connector and 12 colors cable)
Pakcing
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
FQA
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
